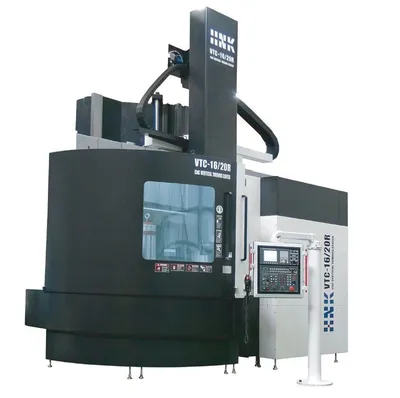

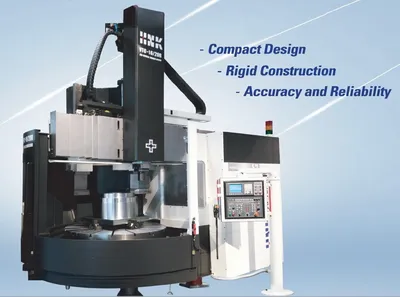

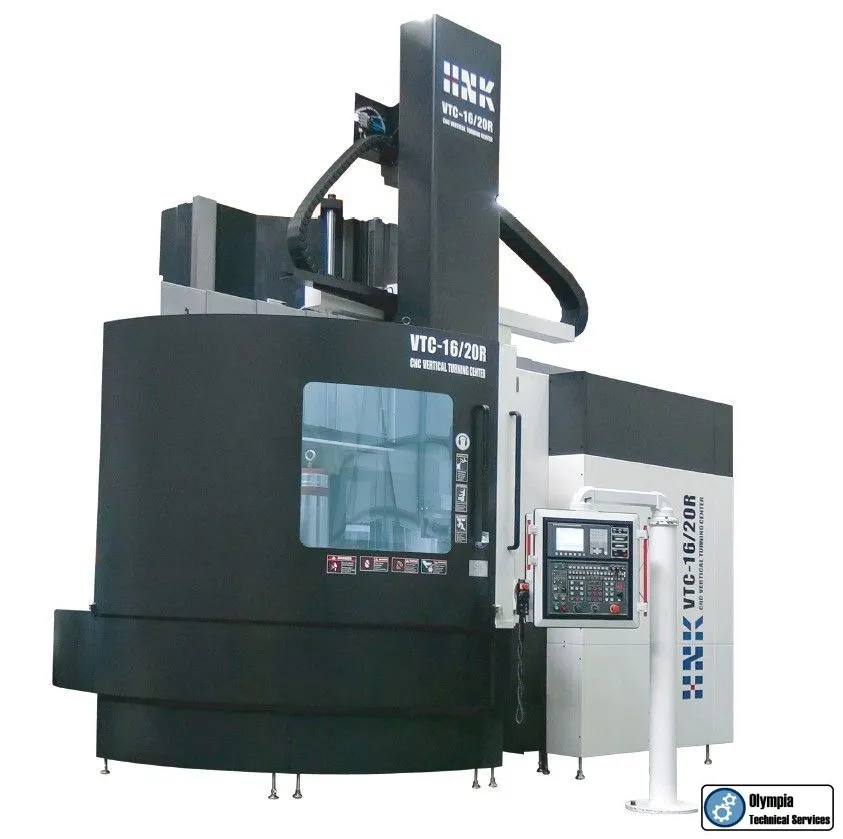

NEW HNK MODEL VTC-16/20R VERTICAL BORING MILL
Have one to sell?
ConditionNew
1 available
New
WITH 63" TABLE, 78.7" SWING, 250 RPM, 74 HP, MAX. WORK HEIGHT 65", & FANUC 31i-T CNC CONTROL, LIVE MILLING 2000 RPM, 700 PSI CTS, 4 TURNING HOLDERS, 2 BORING HOLDERS, & CHIP CONVEYOR
Machining diameter 78.7"
Table diameter 63.0”
Maximum machining height (w/ standard tool installed) 65.0"
Maximum workpiece weight 17,600 LBS
Z-Axis travel (RAM) 35.9"
X-Axis travel -3.9" to 46.0"
Ram size 9.4" x 9.4"
C-Axis 0.001 Deg
Cross rail travel (3 steps x 9.8") 29.5"
Number of tools in automatic tool changers 24 POSITION
Main drive motor capacity 60 HP
Table cutting speed range (infinitely variable) 1-250 RPM
Rapid feed rate (X) 472 IPM
Rapid feed rate (Z) 393 IPM
Live milling spindle speed 15 to 2000 RPM
Live Spindle motor 25 HP
Machine Dimensions (W x D) 200” X 190” (approx.)
Machine Height (maximum w/cross rail in top position) 226”
Machine weight 56,760 LBS
Fanuc 31iT CNC
Live Milling
Splash Guard Enclosure

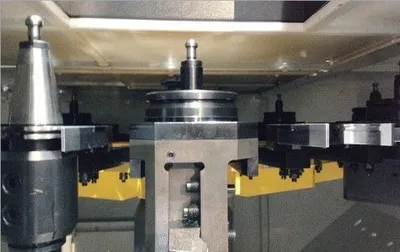

24 Station ATC
Hinge Type Chip Conveyor
4 std Turning Type Tool Holders
2 Boring Type Tool Holders
Air Blow Device
High Pressure Coolant Thru Spindle (700 PSI)
63” diameter 4-jaw independent Chuck
Hydraulically Balanced Forged Steel Square Ram
Set of Foundation Bolts, & Plates
Steel Telescopic Way Covers
Work Light
Tower Warning Light
Full set of Mechanical and Electrical Manuals.
