TOSHIBA BTD-110H.R16 HORIZONTAL BORING MILL (2000)
Have one to sell?
ConditionUsed
1 available

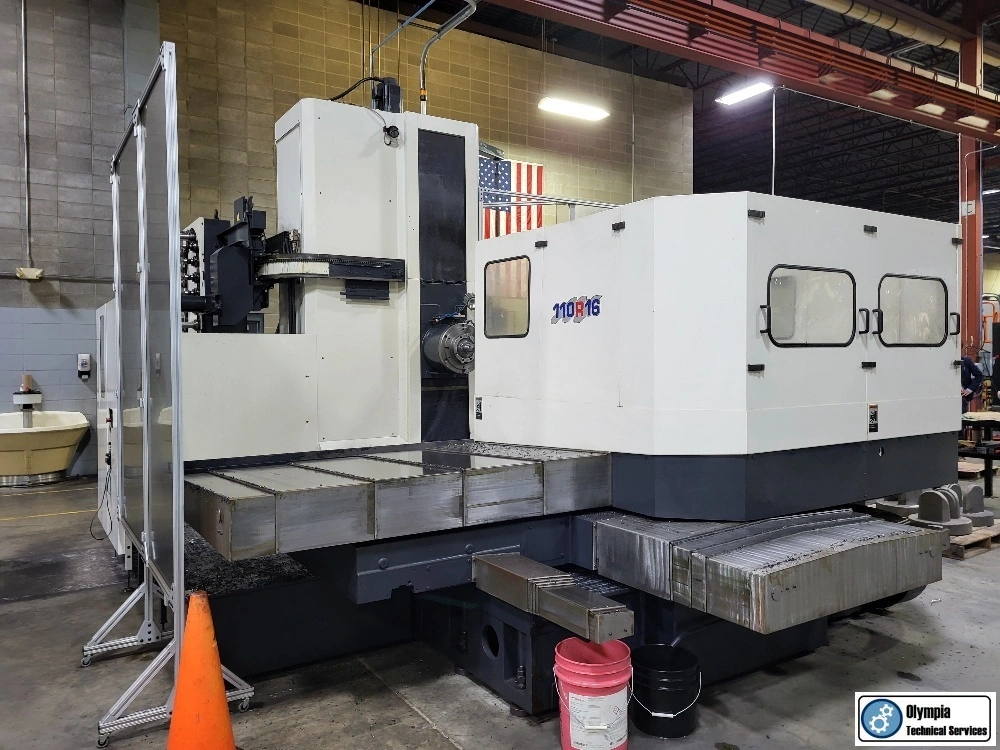

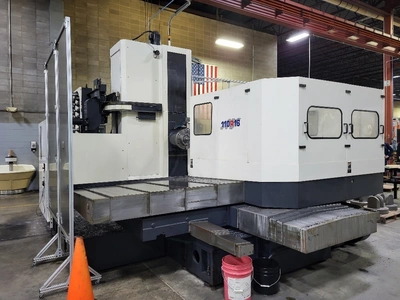

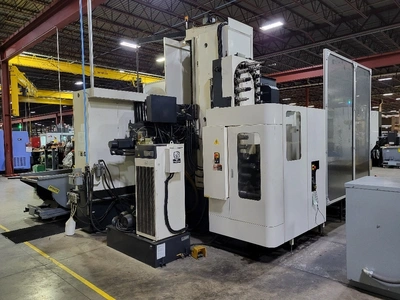

Used Toshiba BTD-110.R16 horizontal table-type boring mill, full mechanical refurbishment
SPINDLE DIAMETER 4.33"
TAPER IN SPINDLE #50
VERTICAL HEAD TRAVEL, Y-AXIS 59.1"
TABLE CROSS TRAVEL, X-AXIS 78.7"
SPINDLE TRAVEL, Z-AXIS 19.7"
SADDLE TRAVEL, W-AXIS 57.1"
TABLE SIZE, BUILT-IN ROTARY 55.1" X 63"
TABLE INDEXING 0.001 DEGREE
TABLE LOAD CAPACITY 13860 LBS
RAPID TRAVEL (XYZ) 472.4 IPM
RAPID TRAVEL W 196.9 IPM
MAX. SPINDLE SPEED 5-3000 RPM
SPINDLE MOTOR 30 HP

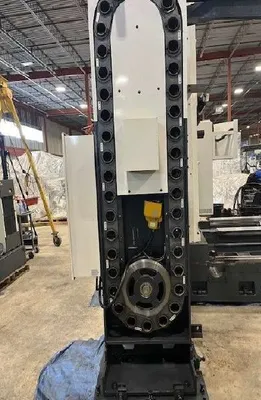

ATC 38 POSITION
MACHINE DIMENSIONS 202" x 258" x 157.5"
WEIGHT 61600 LBS
POWER REQUIREMENTS 200/220 V/3 PH/60 HZ, 75 KVA

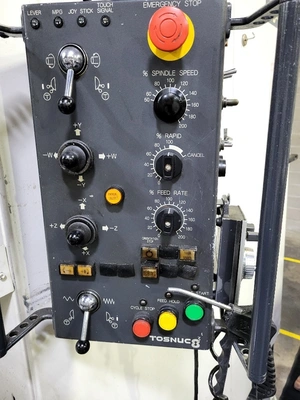

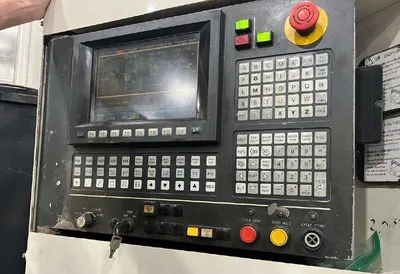

TOSNUC 888 CNC CONTROL
FULL B-AXIS ROTARY TABLE
THROUGH SPINDLE COOLANT 140 PSI
CHIP AND SPLASH ENCLOSURE
STEEL SLIDING WAY COVERS
CHILLER
CHIP CONVEYOR
REFURBISHMENT 2026

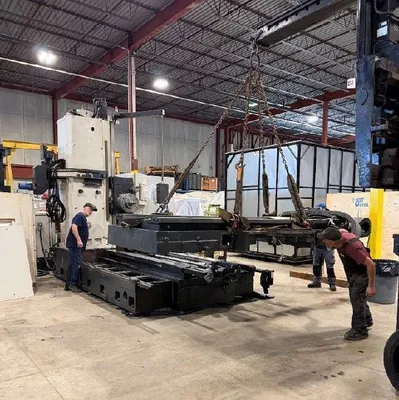

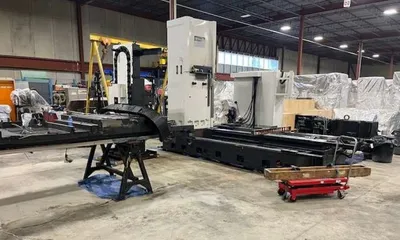

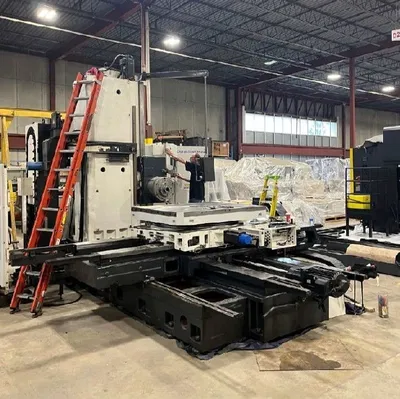

- Dismantle machine completely, inspect all way surfaces and turcite surfaces
- Remove Z axis saddle, keepers and gibs, worn turcite and replace with new

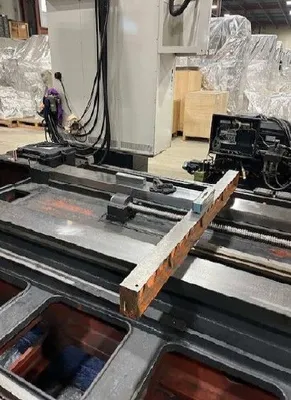

- Scrape and fit saddle to bed way

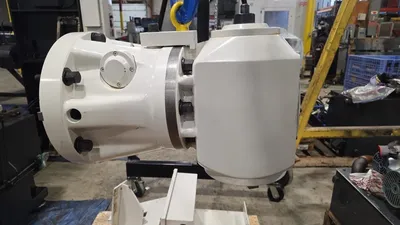

- Inspect Headstock gearbox, main motor couplings, wiring and hoses, very good condition
- Remove and repair all way covers, install new way cover wipers
- Replace way wipers
- Check, clean all way lube distributors and oil lines
- Dismantle all hydraulic and coolant tanks, clean and replace hydraulic filters
- Remove all linear axis scales, dismantle clean tape and reader heads

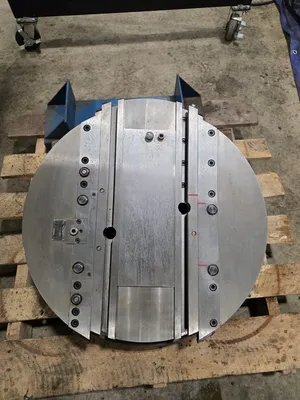

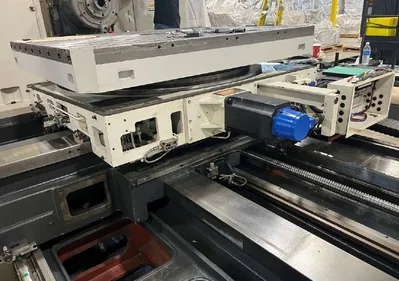

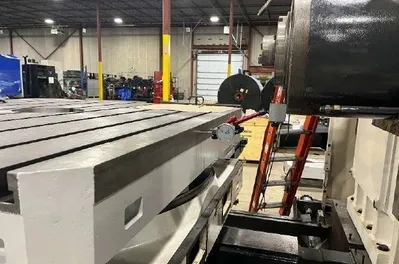

- Remove Rotary table and inspect, clean and check drive train, adjust back lash.
- Remove all table clamps, re-seal all 4 cylinders
- Headstock and table saddle Turcite surfaces, gibs and scrape fit to column and X bed were scraped for contact and bearing
- Re-condition Z axis ball screw and nut install new thrust bearings
- Re-assemble complete machine and check for squareness, level and Laser calibrate.

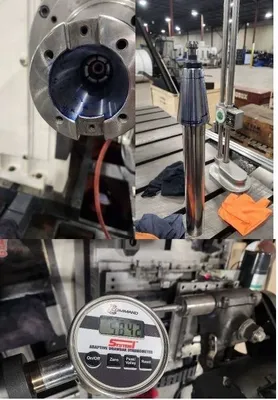

- Spindle taper grind
