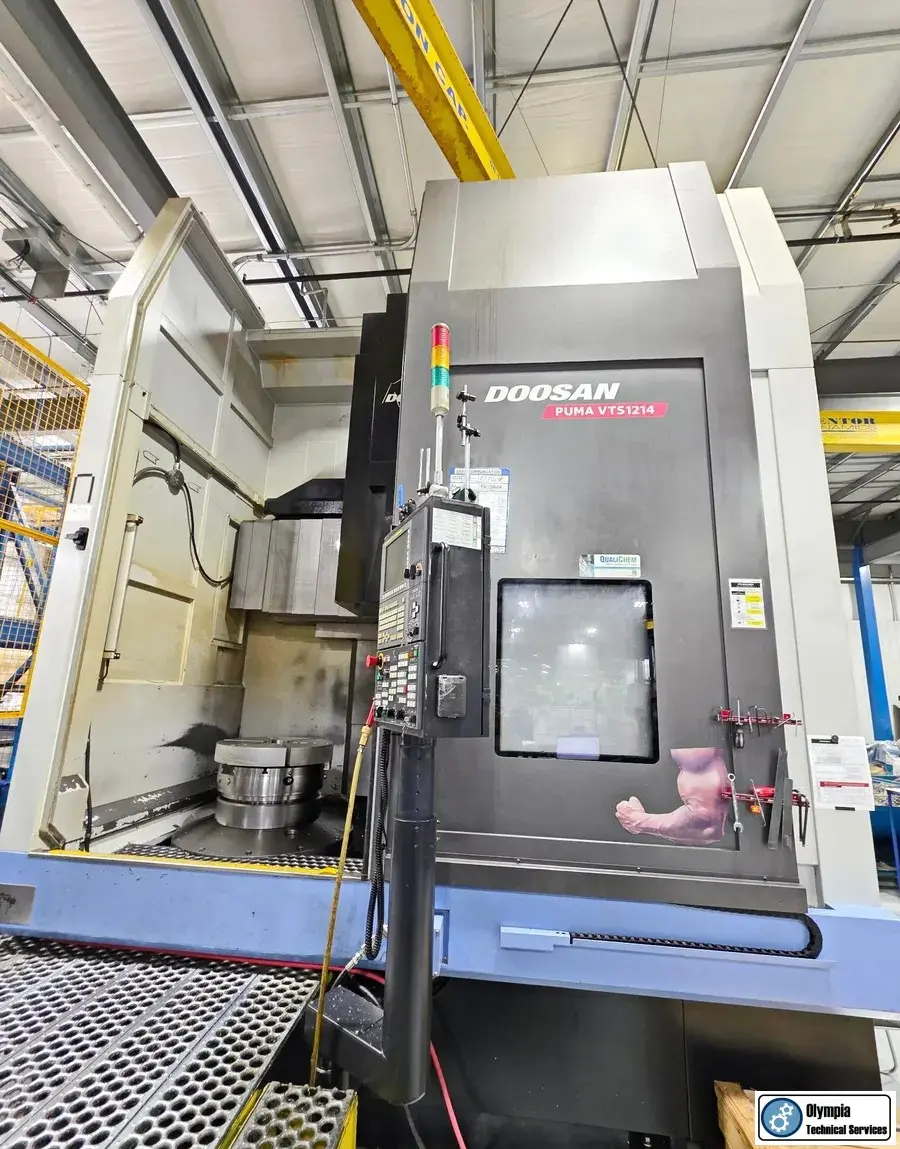

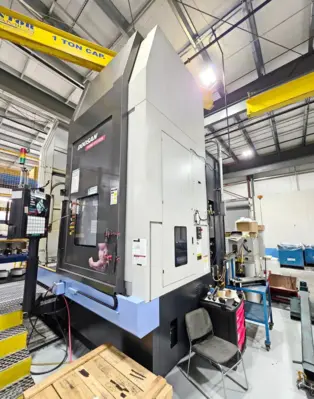

DOOSAN PUMA VTS1214 VERTICAL LATHE (2014)
Have one to sell?
ConditionUsed
1 available

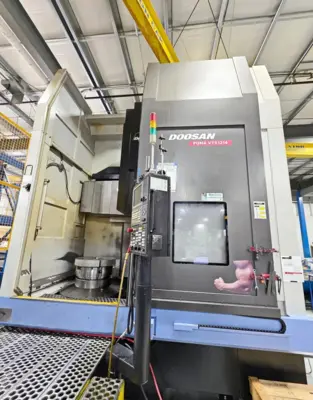

2014 DOOSAN PUMA VTS1214 vertical lathe with FANUC 32i-A control, 39.37" Samchully 3-jaw chuck, 15-position tool changer, full enclosure, 1,000 PSI coolant system, chip conveyor and mist collector. 53.14" max turning diameter.
TABLE DIAMETER 39.37"
SWING OVER BED 55.11"
MAX. TURNING DIAMETER 53.14"
MAX. TURNING HEIGHT 32.04"
TABLE SPEEDS 1-630 RPM
X-AXIS TRAVEL 57.10"
Z-AXIS (RAM STROKE) 31.49"
TABLE CAPACITY 8818 LBS.
RAM SIZE 9.84" X 12.12"
RAPID TRAVERSE, X/Z-AXES 472.44 IPM
CROSS RAIL ELEVATION, 4-STEP 23.6" (5.9" PER STEP)
SPINDLE MOTOR 80 HP
MAXIMUM TABLE TORQUE 6412 NM
FLOOR SPACE 141.33" X 146.65"
MACHINE HEIGHT 189.8"
APPROX. WEIGHT 56,200 LBS

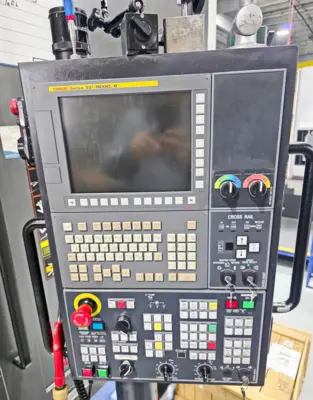

- FANUC 32I-A CNC CONTROL

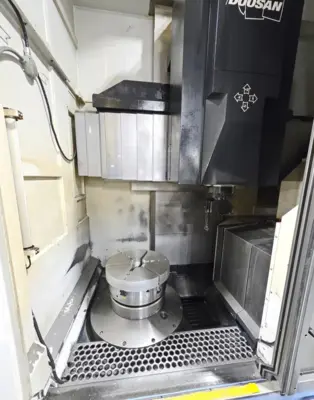

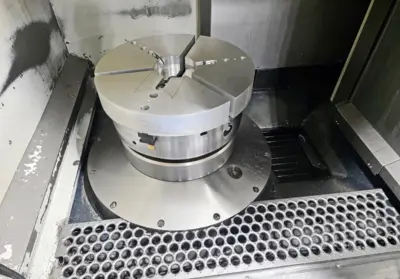

- 39.37" SAMCHULLY 3-JAW CHUCK

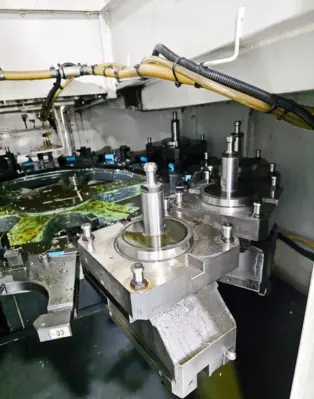

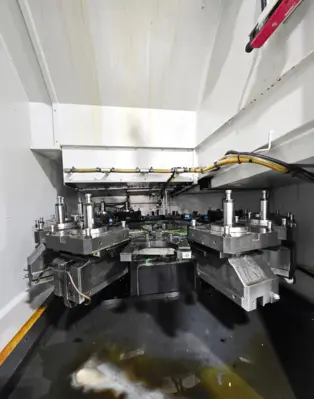

- 15-POSITION AUTOMATIC TOOL CHANGER

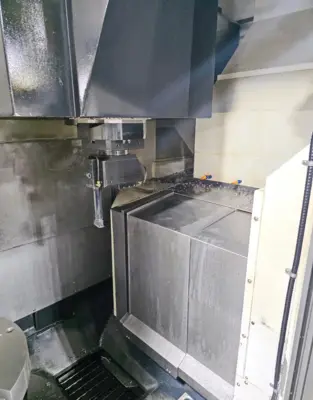

- FULL ENCLOSURE
- BOX WAY CONSTRUCTION

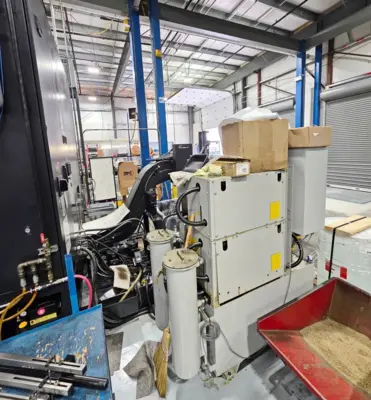

- HIGH-PRESSURE COOLANT SYSTEM (CHIPBLASER 1000 PSI )
- MIST COLLECTION SYSTEM

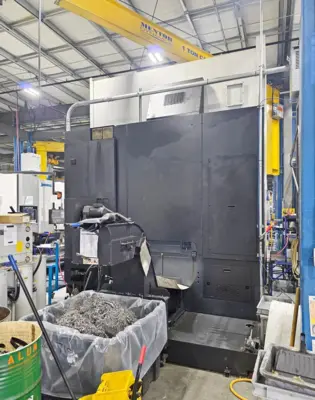

- CHIP CONVEYOR
- RAM SHOWER COOLANT
- TABLE COOLING UNIT
- OIL SKIMMER
2014 DOOSAN PUMA VTS1214 vertical lathe with FANUC 32i-A control, 39.37" Samchully 3-jaw chuck, 15-position tool changer, full enclosure, 1,000 PSI coolant system, chip conveyor and mist collector. 53.14" max turning diameter.
TABLE DIAMETER 39.37"
SWING OVER BED 55.11"
MAX. TURNING DIAMETER 53.14"
MAX. TURNING HEIGHT 32.04"
TABLE SPEEDS 1-630 RPM
X-AXIS TRAVEL 57.10"
Z-AXIS (RAM STROKE) 31.49"
TABLE CAPACITY 8818 LBS.
RAM SIZE 9.84" X 12.12"
RAPID TRAVERSE, X/Z-AXES 472.44 IPM
CROSS RAIL ELEVATION, 4-STEP 23.6" (5.9" PER STEP)
SPINDLE MOTOR 80 HP
MAXIMUM TABLE TORQUE 6412 NM
FLOOR SPACE 141.33" X 146.65"
MACHINE HEIGHT 189.8"
APPROX. WEIGHT 56,200 LBS
- FANUC 32I-A CNC CONTROL
- 39.37" SAMCHULLY 3-JAW CHUCK
- 15-POSITION AUTOMATIC TOOL CHANGER
- FULL ENCLOSURE
- BOX WAY CONSTRUCTION
- HIGH-PRESSURE COOLANT SYSTEM (CHIPBLASER 1000 PSI )
- MIST COLLECTION SYSTEM
- CHIP CONVEYOR
- RAM SHOWER COOLANT
- TABLE COOLING UNIT
- OIL SKIMMER
