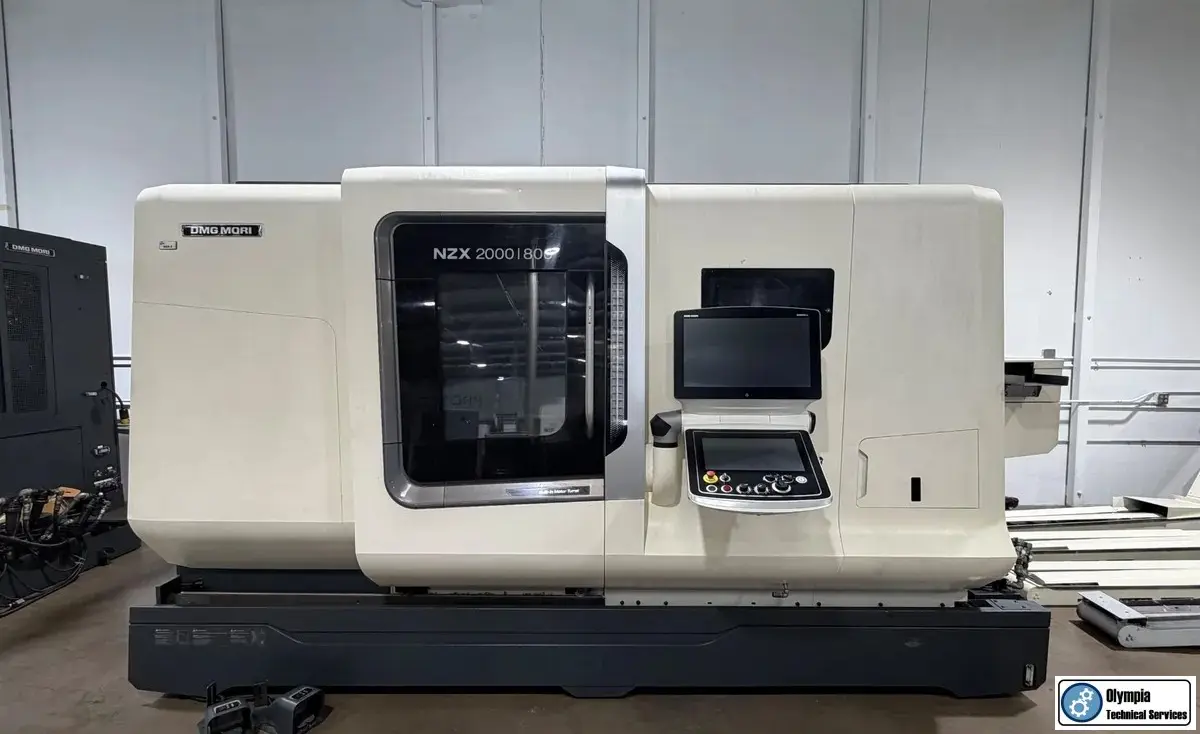

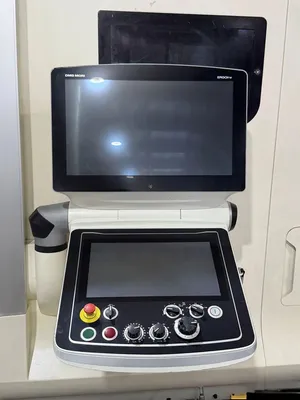

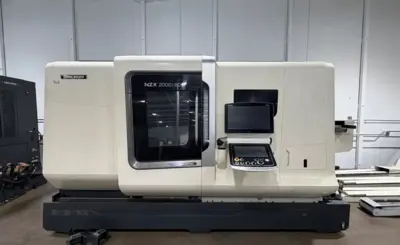

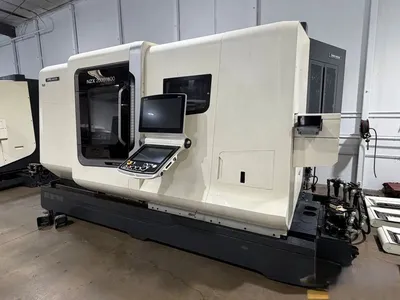

USED MORI-SEIKI NZX 2000SY/800 CNC LATHE, w/ Ergoline CNC Control (yr. 2016)

SPECIFICATIONS: Imperial Metric
SWING OVER BED 31.5" 800 mm
MAX. WORK PIECE DIAMETER 11.8" 300 mm
MAX. TURNING DIAMETER 12.5" 318 mm
CENTER DISTANCE 31.5" 800 mm

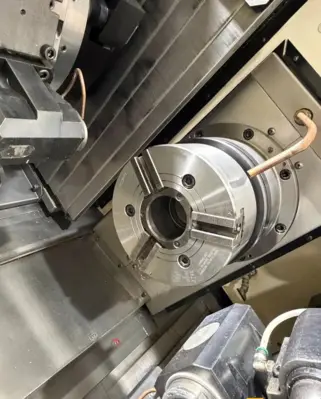

CHUCK SIZE 8" 210 mm
BAR CAPACITY DIAMETER 2.5" 63.5 mm
X1/X2-AXIS TRAVEL 8.2" 208 mm
Z1/Z2-AXIS TRAVEL 31.8” 807 mm
RAPID TRAVERSE RATE X 1181 IPM 30 m/min
RAPID TRAVERSE RATE Y 787 IPM 20 m/min
RAPID TRAVERSE RATE Z 1968 IPM 50 m/min
SPINDLE SPEED, MAIN/SUB 5000 RPM
MAIN SPINDLE MOTOR 34 HP 25 Kw
SPINDLE NOSE 1/2 A2-6 / A2-6

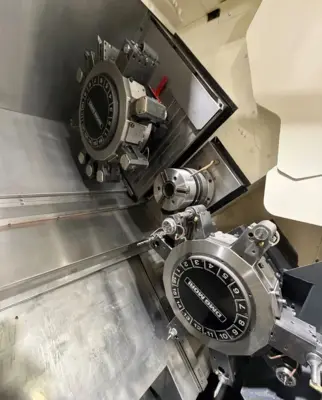

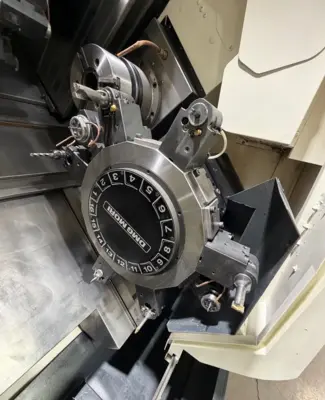

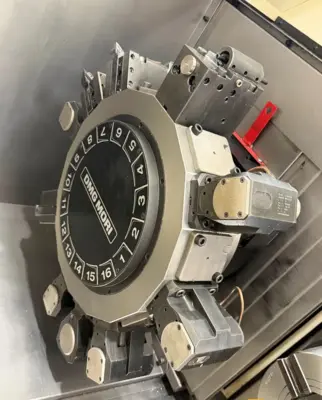

NO. OF TOOL STATIONS 1/2 16 / 16
MACHINE DIMENSIONS 122” x 76” x 84” 3.1 x 1.93 x 2.12 mm
APPROX. MACHINE WEIGHT 12,800 LBS 5800 Kg
