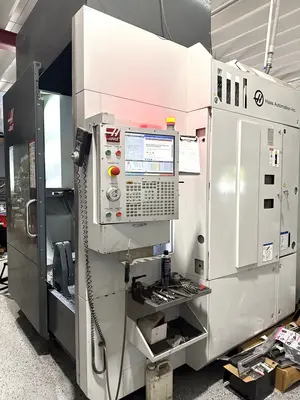

HAAS UMC-750 5-AXIS CNC VERTICAL MILL CENTER (2019)
Have one to sell?
ConditionUsed
1 available
Expand your machining capabilities with this used 2019 HAAS UMC-750 universal machining center, featuring 5-axis CNC vertical milling.
X axis travel 762 mm (30")
Y axis travel 508 mm (20")
Z axis travel 508 mm (20")
A axis travel +120 to -35 deg tilt
C axis travel 360 deg Rotary
Rapid Feed rate 30.5 m/min (1200 IPM)
Table Size 500 mm φ (19.7"φ)
Max Work Piece Diameter 630 mm (24.8")
Max Table Load 300 kg (660 lbs)
ATC Capacity 40 ATC
CNC Control HAAS CNC
Spindle Taper CAT 40
Spindle Speed 8,100 RPM
Spindle Motor 22 kW (30 HP)
Machine Height 3,150 mm (124")
Space Required (L x W) 4015 mm x 3130 mm (158" x 123")
Width with conveyor 3810 mm (150")
Machine Weight 6465 kg (14,250 lbs)
HAAS NEXTGEN CNC CONTROL
4TH & 5TH AXIS DRIVES & WIRING
THROUGH-SPINDLE COOLANT (300 PSI)
PROGRAMMABLE COOLANT NOZZLE (P-COOL)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

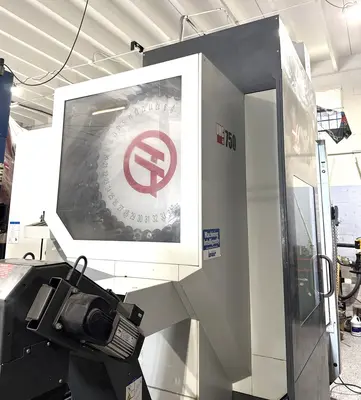

SIDE-MOUNT TOOL CHANGER (40 ATC)
JORGENSEN CHIP CONVEYOR (BELT-TYPE)
REMOTE JOG HANDLE W/TOUCHSCREEN
ENCLOSURE EXHAUST SYSTEM

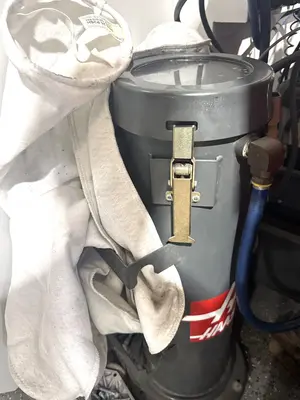

AUXILIARY COOLANT FILTER
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
SECOND HOME POSITION
EARLY POWER-FAILURE DETECTION MODULE
COORDINATE ROTATION & SCALING
VISUAL PROGRAMMING SYSTEM
SPINDLE ORIENTATION
HIGH-SPEED MACHINING (HSM)
RIGID TAPPING
MACROS
MEDIA DISPLAY M-CODE (M130)
HAASCONNECT
32GB EXPANDED MEMORY
ETHERNET
USB PORT

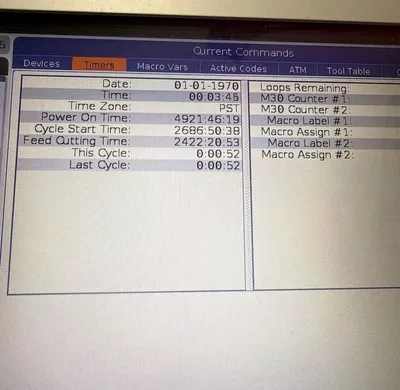

** AS OF SEPTEMBER 2026 - FEED CUTTING TIME: 2,422 HOURS
** ORIGINAL OWNER
** MACHINE CUT PRIMARILY ALUMINUM
