YOU-JI (MASSA) MODEL MV-1600 ATC+C CNC VERTICAL BORING MILL WITH MILLING
Have one to sell?
ConditionUsed
1 available

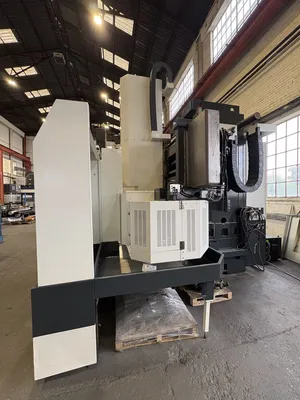

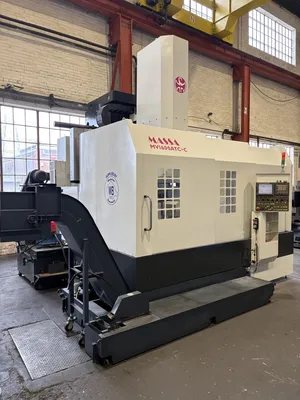

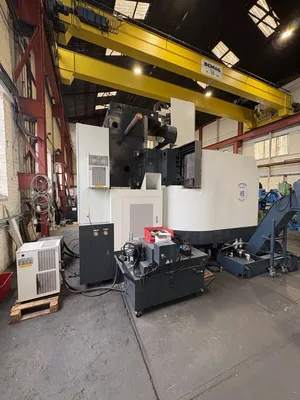

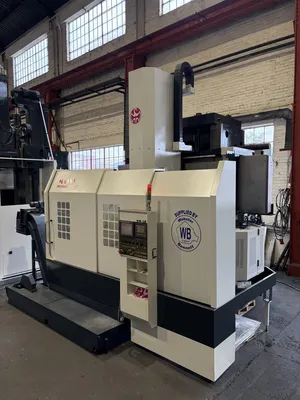

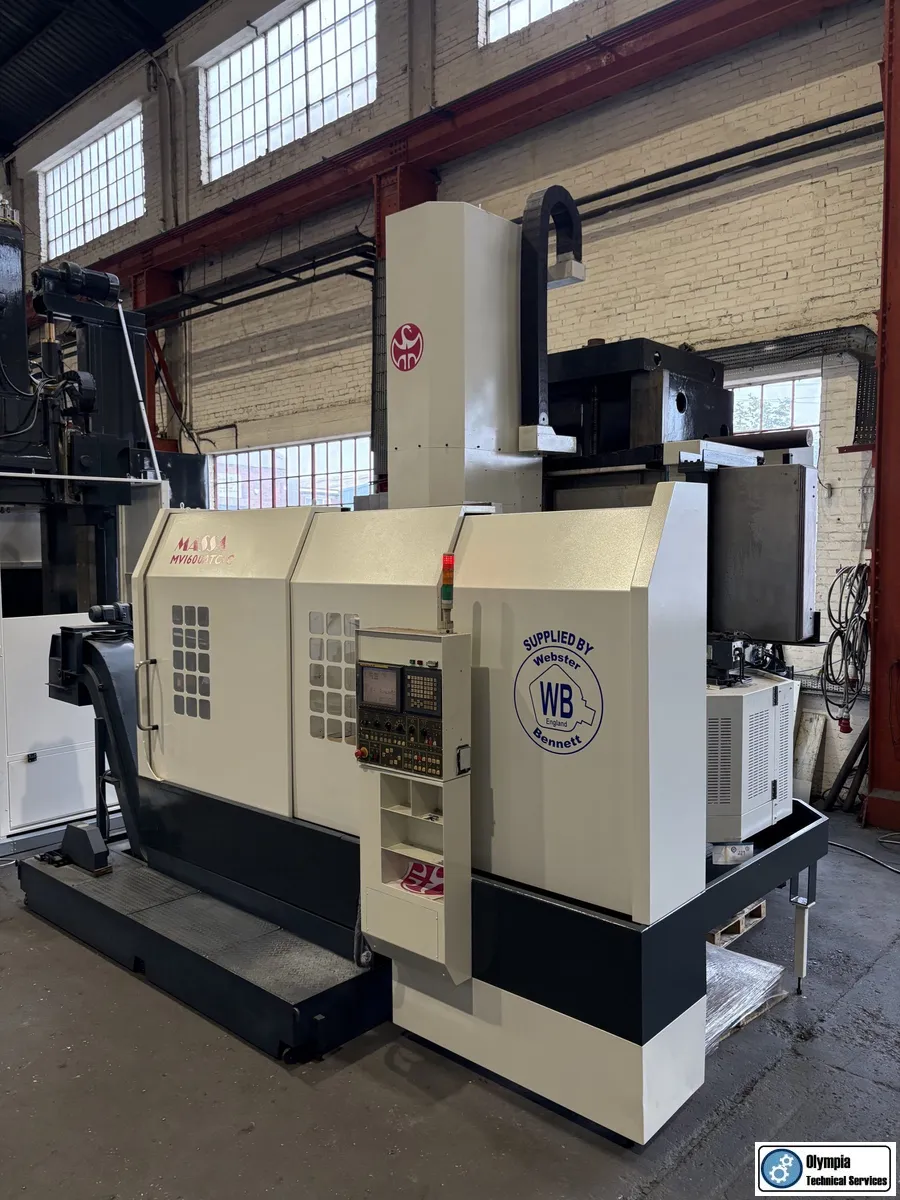

2008 YOU-JI (MASSA) MV-1600 ATC+C vertical boring mill with 63" table, 71" machining diameter, 60 HP drive, Fanuc 18i-TB controls and 16-position tool changer. Includes 4-jaw chuck, chip conveyor, coolant system and manuals.
Machining diameter 71"
Table diameter 63"
Maximum swing 78.7"
Maximum machining height (w/ tool) 47.2"
Maximum distance under rail 50"
Maximum workpiece weight 17,600 LBS
Maximum ram travel (Z-Axis) 35.9"
Horizontal travel (X Axis) 48.2”
Ram size 8.6" x 8.6"
Cross rail travel (6 steps) 31.5”
Number of tools in ATC 16
Main drive motor capacity 60 HP
Table cutting speed range (3 ranges) 1-250 RPM
Milling spindle motor 15 HP
Milling spindle speed 2500 RPM
Rapid feed rate (X & Z) 393 IPM
Maximum cutting feed rate 197 IPM
Machine Dimensions (W x D) 220” x 205”
Machine Height(w/cross rail in top pos) 197”
Machine weight 55,000 lbs.

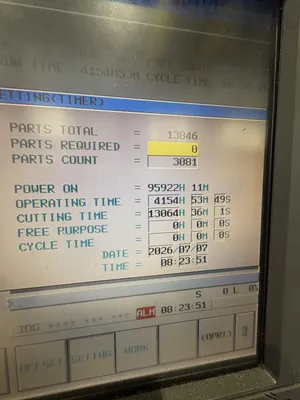

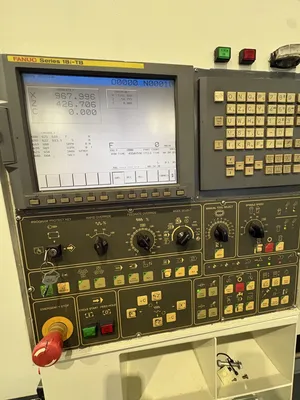

Fanuc 18i-T CNC controls

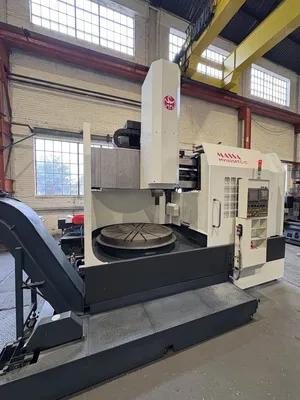

4 jaw chuck - 63“ face plate with bolt on jaws
Coolant system
Full chip and splash enclosure
16 Position automatic tool changer
Hydraulic power & oil chiller
Electrical cabinet with AC
Assortment of Tool holders - 6 turning blocks & 6 Milling (BT) holders
All available machine manuals
Chip Conveyor
