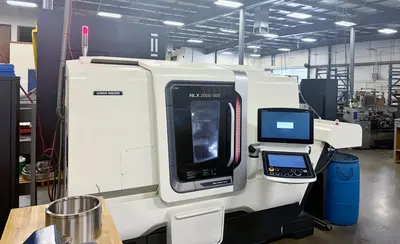

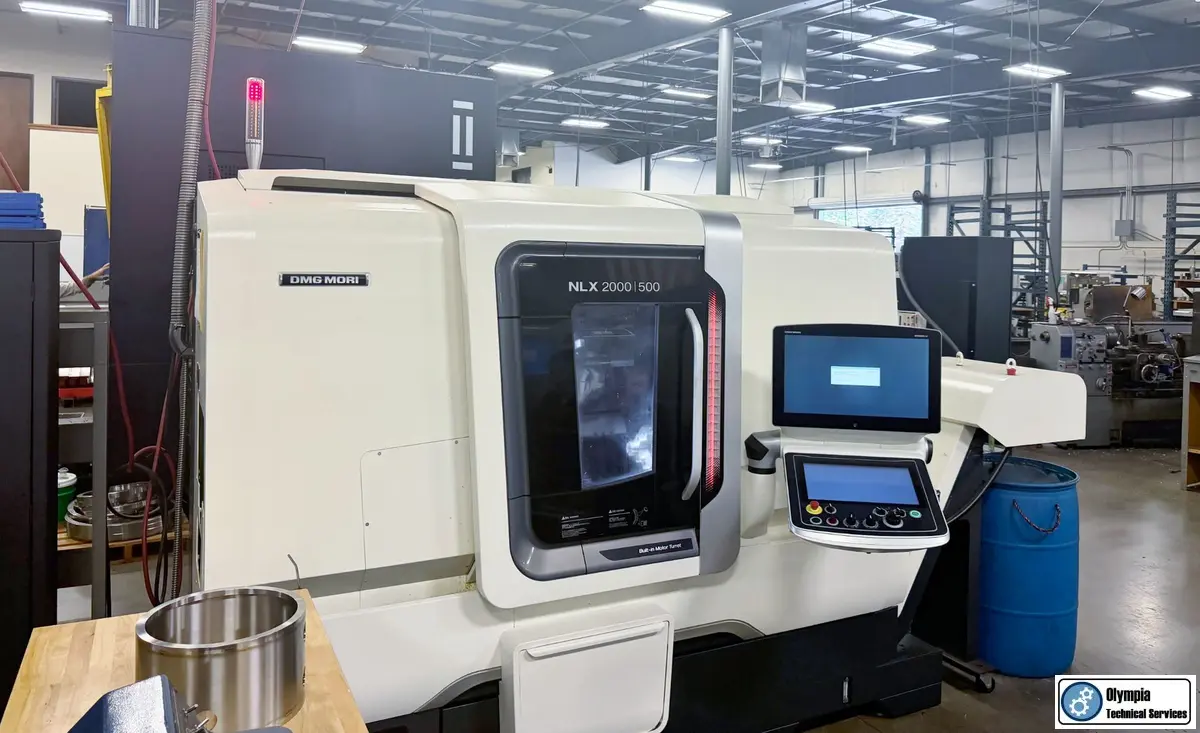

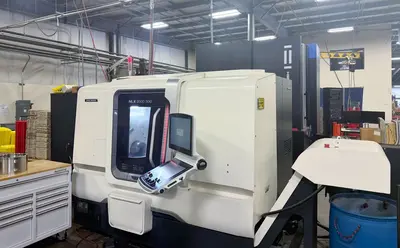

USED MORI-SEIKI NLX2000SY/500 CNC 5-AXIS LATHE, w/ ERGOline CNC Control (yr. 2018)
Have one to sell?
ConditionUsed
1 available
Used 2018 DMG MORI NLX-2000SY/500 CNC lathe with 5-axis capability. Features 36.4" swing, 20" machining length, 8" chuck, 2.5" bar capacity, 14.4" turning diameter, 20 HP, and 5,000 RPM.
X AXIS TRAVEL: 10.2″
Z AXIS TRAVEL: 23.2″
CHUCK SIZE: 8″
SPINDLE MOTOR: 20 HP
RAPID RATE Z AXIS: 1,181 IPM
TURRET TOOLS: 12 STATION
RAPID RATE X AXIS: 1,181 IPM
MAX TURNING DIA: 14.4″
MAX TURNING LENGTH: 20″
MAX SWING: 29.7″
MAIN SPINDLE SPEED: 5,000 RPM
MAIN SPINDLE NOSE: A2-6
MAIN SPINDLE BORE: 2.8″
MAIN BAR CAPACITY: 2.5″
TRAVELS (C AXIS): 0.001 DEG
SUB SPINDLE SPEED: 6,000 RPM
SUB SPINDLE NOSE: A2-5
SUB SPINDLE MOTOR: 15 HP
TRAVELS (B AXIS, SUB): 24.5″

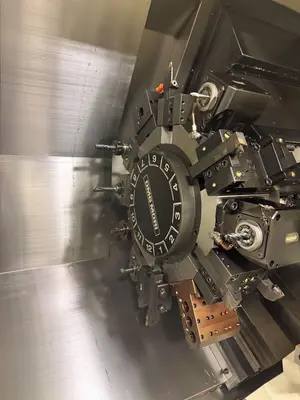

TURRET TYPE: BLOCK STYLE
TURRET INDEX TIME: 0.27 SEC
ROTARY TOOL SPEED: 10,000 RPM
TRAVELS (Y AXIS): +/- 2.0″
ROTARY TOOL SPINDLE: 7.5 HP
DIMENSIONS: 140″ X 82″ X 85″
WEIGHT: 12,000 LBS
• CELOS CNC CONTROL
• USB Port
• PC/MCIA Interface
• MAPPS III Programming
• C & Y-Axis Live Tooling Capability
• Programmable Sub Spindle
• 8" Hydraulic Chuck on Main Spindle
• 6" Hydraulic Chuck on Sub Spindle
• Integral Built-In Milling Spindle Motor
• Five (5) Milling Tool Holders
• Manual Tool Pre-setter
• Chip Conveyor (Hinge-Type Side Exit)
• High Pressure Coolant
Low Spindle hours - 2678 hrs.
Cut Stainless and Aluminum
Under Power in plant, available for inspection
