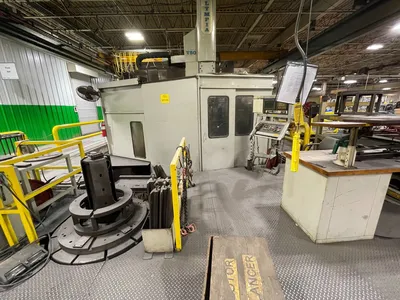

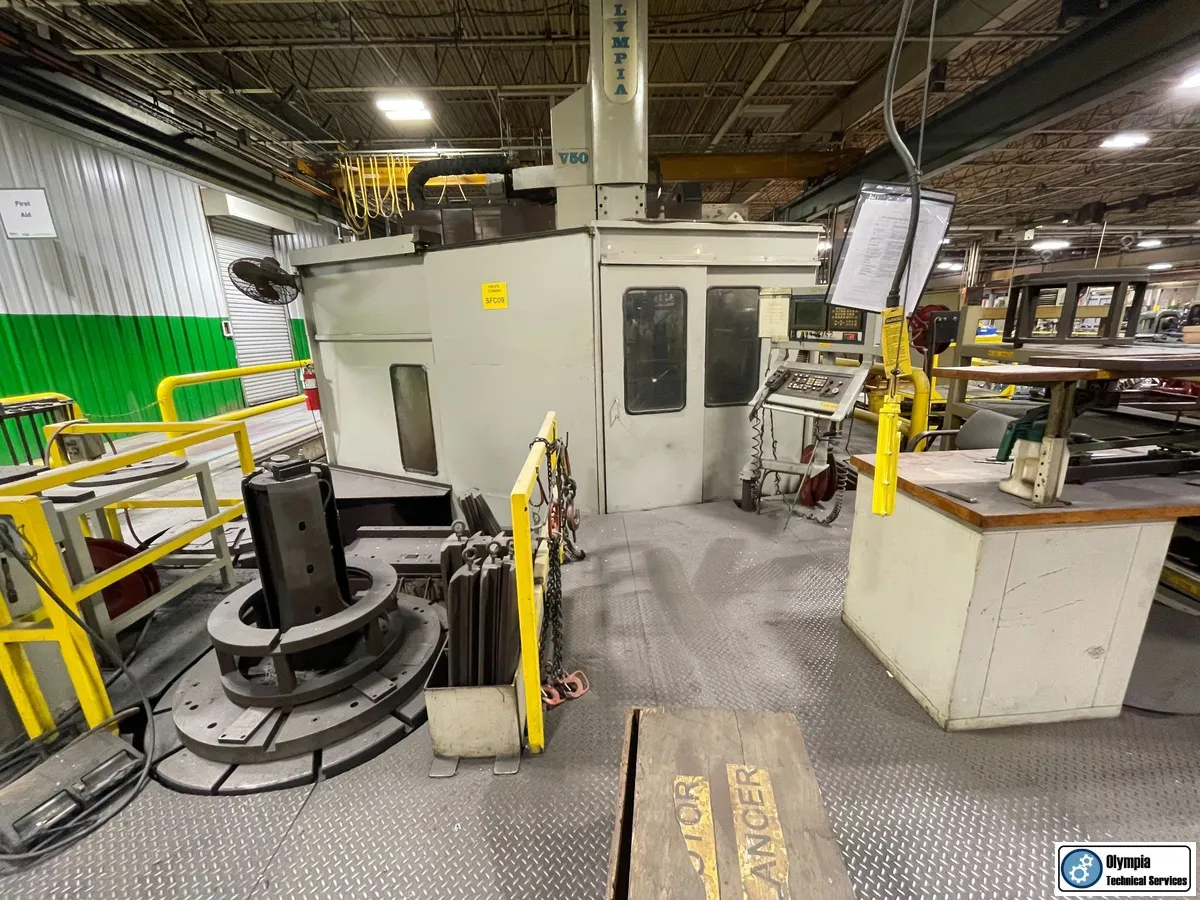

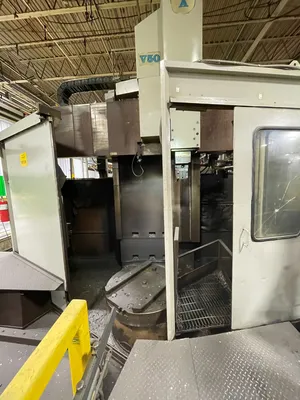

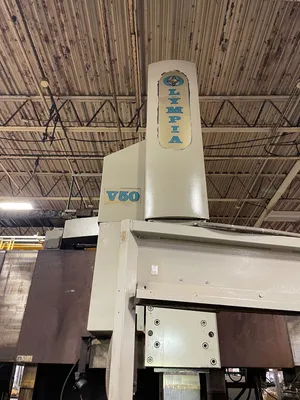

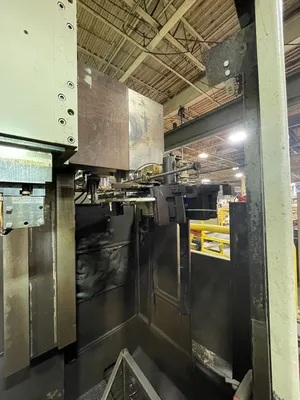

OLYMPIA MODEL V50P CNC VERTICAL BORING MILL (2001)
Have one to sell?
ConditionUsed
1 available
OLYMPIA MODEL V50P CNC VERTICAL BORING MILL, 2- AXIS CNC 44" CHUCK, 57" SWING, 450 RPM, 80 HP, MAX. TURNING HEIGHT 62", FANUC 18i-T CNC, 12 ATC, 2 PALLETS & APC
Machining diameter 57.1"

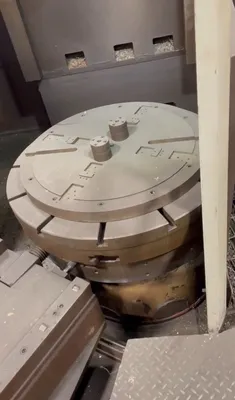

Table diameter 44"
Maximum machining height (w/under rail) 62"
Maximum workpiece weight 22,000 LBS
Maximum ram travel (Z-Axis) 39.4"
Horizontal travel (X Axis) -4.0” / 43.9”

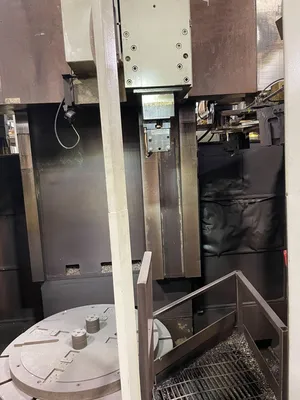

Ram size 8.27" x 8.27"
Number of tools in ATC 12
Main drive motor capacity 80 HP
Table cutting speed range (3 ranges) 1-450 RPM
Maximum Table Torque 20,650 ft-lbs.
Maximum Cutting Force 11,240 lbs.
Rapid feed rate (X & Z) 393 IPM
Maximum cutting feed rate 197 IPM
Machine Dimensions (W x D) 200” x 165”
Machine Height(w/cross rail in top pos) 215”
Machine weight 62,000 lbs.
Fanuc 18i-T CNC controls

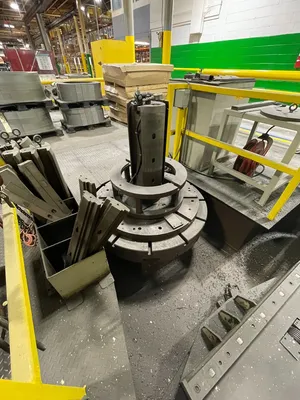

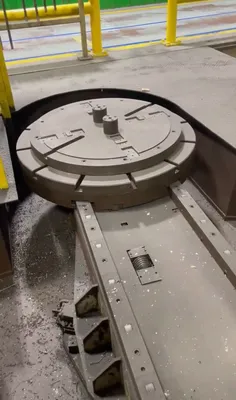

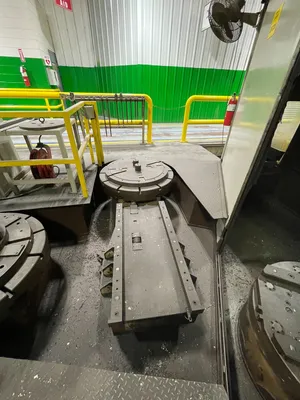

Two 44" Pallets with APC
Coolant system
Full chip and splash enclosure
12 Position automatic tool changer
Moving Cross rail (6 positions)
Hydraulic power unit with chiller
Electrical cabinet with AC
Assortment of Tool holders
All available machine manuals
Chip Conveyors
OLYMPIA MODEL V50P CNC VERTICAL BORING MILL, 2- AXIS CNC 44" CHUCK, 57" SWING, 450 RPM, 80 HP, MAX. TURNING HEIGHT 62", FANUC 18i-T CNC, 12 ATC, 2 PALLETS & APC
Machining diameter 57.1"
Table diameter 44"
Maximum machining height (w/under rail) 62"
Maximum workpiece weight 22,000 LBS
Maximum ram travel (Z-Axis) 39.4"
Horizontal travel (X Axis) -4.0” / 43.9”
Ram size 8.27" x 8.27"
Number of tools in ATC 12
Main drive motor capacity 80 HP
Table cutting speed range (3 ranges) 1-450 RPM
Maximum Table Torque 20,650 ft-lbs.
Maximum Cutting Force 11,240 lbs.
Rapid feed rate (X & Z) 393 IPM
Maximum cutting feed rate 197 IPM
Machine Dimensions (W x D) 200” x 165”
Machine Height(w/cross rail in top pos) 215”
Machine weight 62,000 lbs.
Fanuc 18i-T CNC controls
Two 44" Pallets with APC
Coolant system
Full chip and splash enclosure
12 Position automatic tool changer
Moving Cross rail (6 positions)
Hydraulic power unit with chiller
Electrical cabinet with AC
Assortment of Tool holders
All available machine manuals
Chip Conveyors
