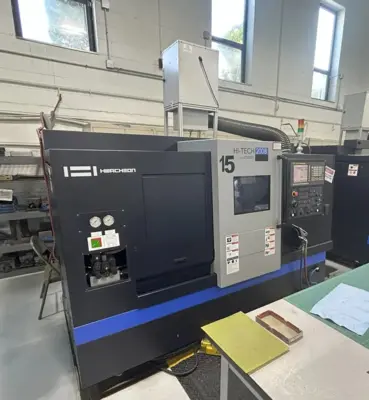

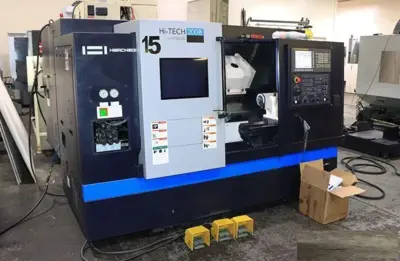

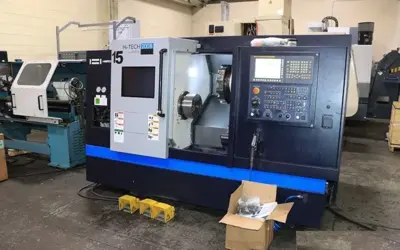

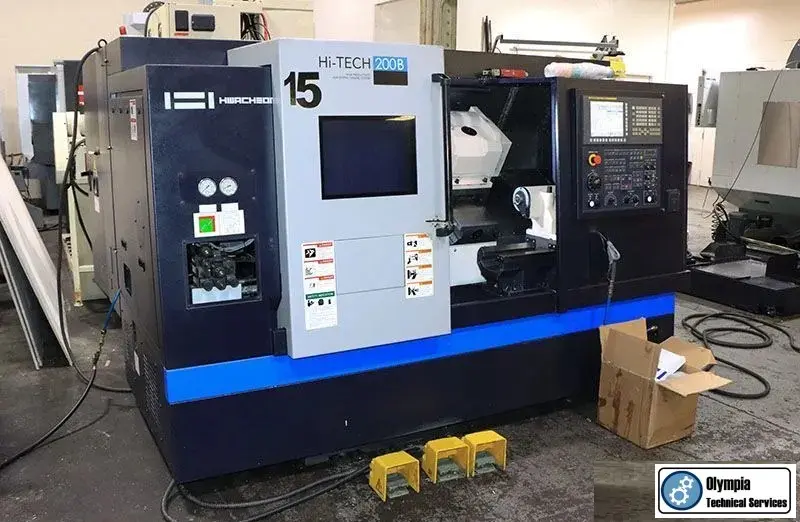

HWACHEON HITECH 200B 2-AXIS CNC Lathe (2019)
Have one to sell?
ConditionUsed
1 available
HWACHEON HI-TECH 200B CNC Lathe. Features 19.7" swing, 15.7" machining length, 10" chuck, and 2.56" bar capacity. Equipped with a 20 hp motor, 3,500 max RPM, A2-6 spindle nose, and tailstock. Ideal for precision tasks. New 2019
TECHNICAL SPECIFICATIONS
Swing over bed 19.7"
Max Cutting Diameter 13.8"
Max Cutting Length 15.75"
Chuck Size (Main) 10"
Spindle Nose A2-6
Max Spindle Speed 3500 RPM
Through Spindle Hole Dia. 2.5"
Max Bar Size 2.4"
Spindle Motor 15/20 HP
Number of Tool Station 12
Rapid feed (X / Z) 1181 IPM
Max travel (X / Z) 7.67" / 16.93"
Tailstock Quill Dia. 3.15"
Quill Stroke 3.94"
Quill Taper MT #4
Electrical Power Supply 220 V/3 Ph/ 60 Hz - 30 kVA
Machine Height 68"
Floor Space(L x W) 104" x 66"
Weight 9,300 lbs.

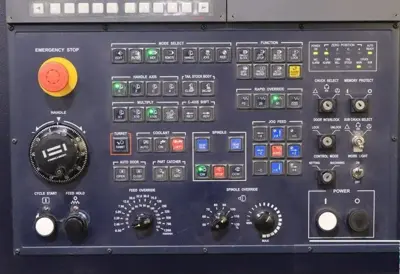

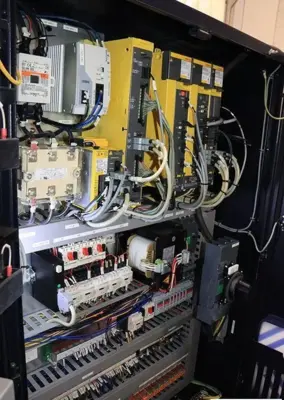

Fanuc 0i-TD CNC Control

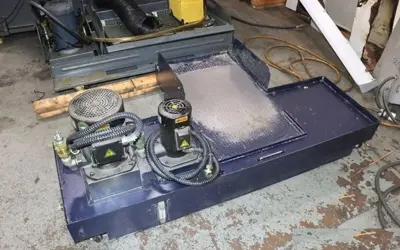

Coolant tank & pump
Tail stock
10" 3- Jaw chuck
Door interlock
All available manuals
