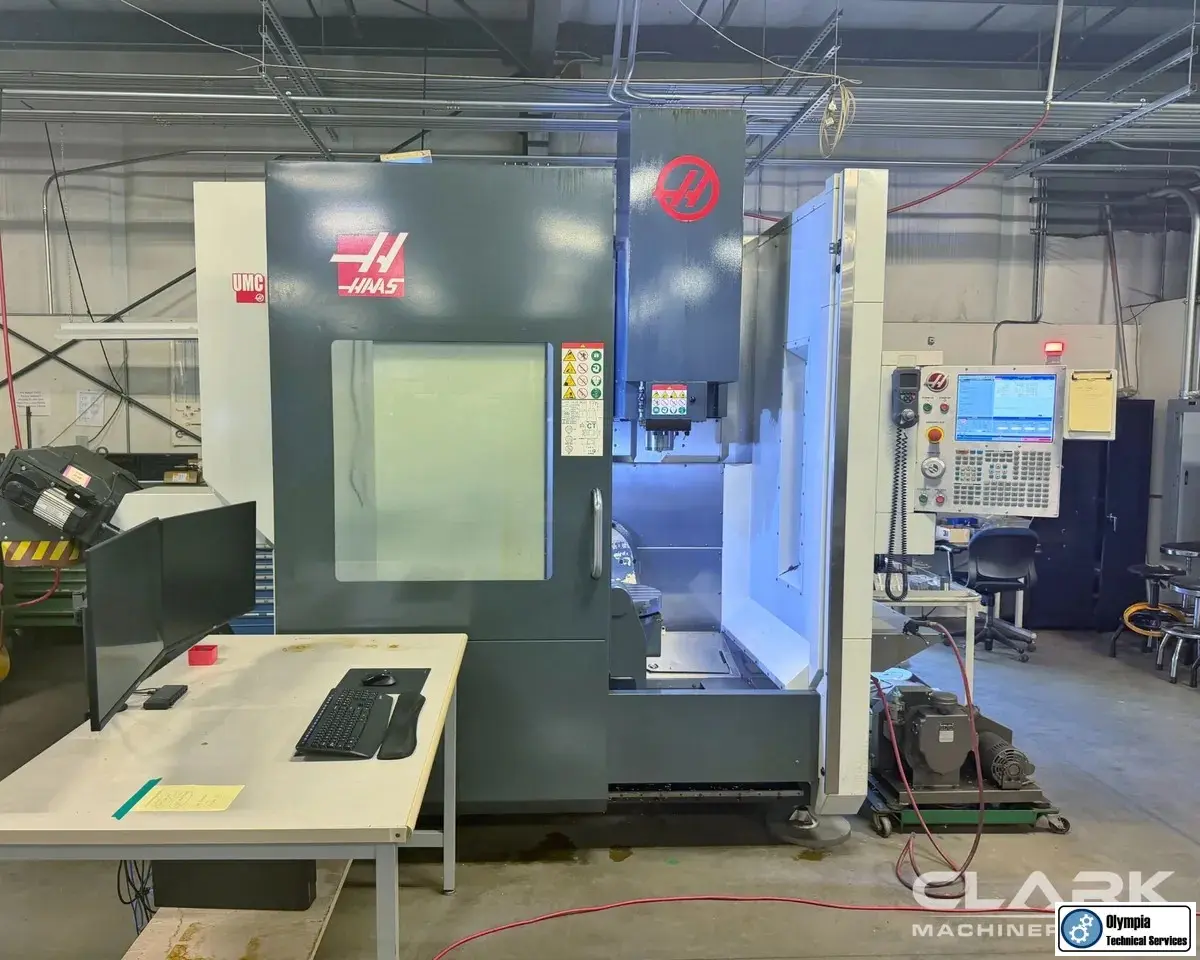

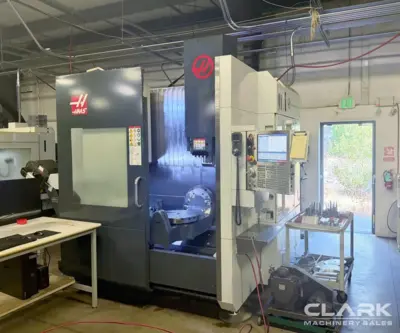

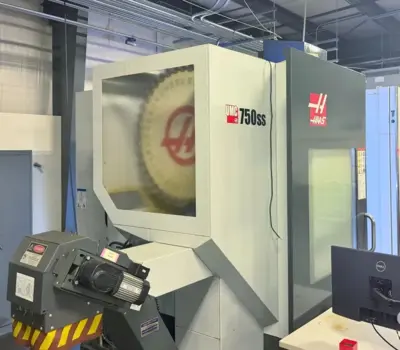

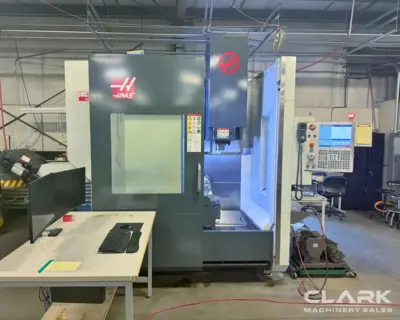

HAAS UMC-750SS 5-AXIS CNC VERTICAL MILL CENTER (2017)
Have one to sell?
ConditionUsed
1 available
X axis travel 762 mm (30")
Y axis travel 508 mm (20")
Z axis travel 508 mm (20")
A axis travel +120 to -35 deg tilt

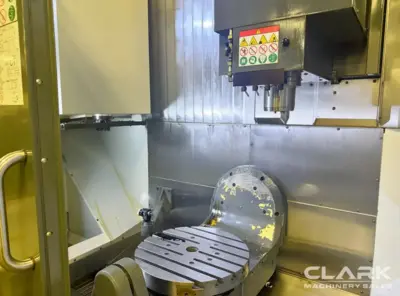

C axis travel 360 deg Rotary
Rapid Feed rate 30.5 m/min (1200 IPM)
Table Size 500 mm φ (19.7"φ)
Max Work Piece Diameter 630 mm (24.8")
Max Table Load 300 kg (660 lbs)
ATC Capacity 40 ATC
CNC Control HAAS CNC
Spindle Taper CAT 40
Spindle Speed 15,000 RPM
Spindle Motor 22 kW (30 HP)
Machine Height 3,150 mm (124")
Space Required (L x W) 4015 mm x 3130 mm (158" x 123")
Width with conveyor 3810 mm (150")
Machine Weight 6465 kg (14,250 lbs)

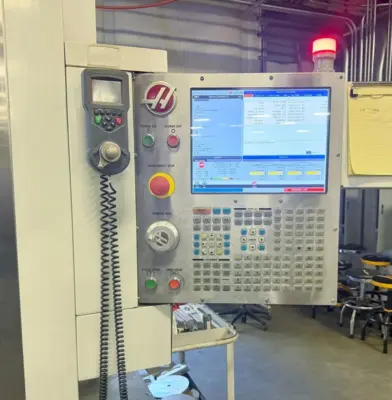

HAAS NEXTGEN CONTROL
15,000 RPM SPINDLE
40-STATION TOOL CHANGER
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
THROUGH-TOOL AIR BLAST
REMOTE JOG HANDLE
CHIP CONVEYOR
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL (DWO/TCPC)
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SECOND HOME POSITION
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
32GB MEMORY
HAASCONNECT: REMOTE MONITORING
** AS OF AUGUST 2026, CUTTING TIME – 4,784 HOURS
