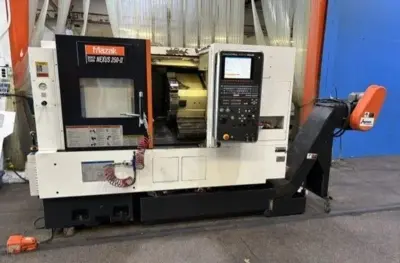

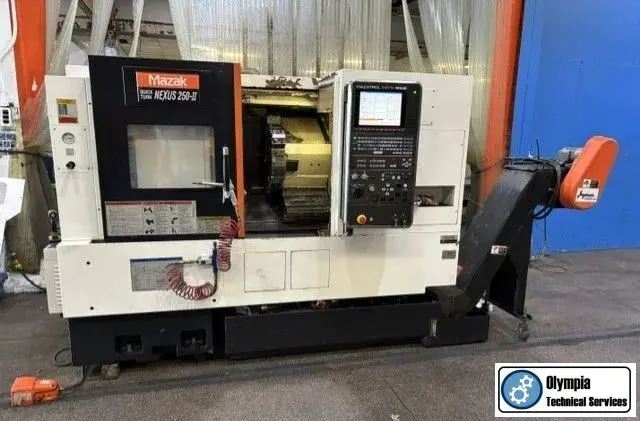

MAZAK QUICK TURN NEXUS 250-II CNC LATHE W/ MAZATROL MATRIX, CHIP CONVEYOR (2011)

OEM SPECIFICATIONS
SWING OVER BED 26.5"
MAX. LENGTH BETWEEN CENTERS 22"
TUNING LENGTH 22.7”
CHUCK SIZE (3 JAW) 10"
SPINDLE BORE DIA. 3"
SPINDLE SPEED (2 RANGES) 4000 RPM
MAIN SPINDLE MOTOR 35 HP
SPINDLE NOSE A2-8
X-AXIS TRAVEL 7.5”
Z-AXIS TRAVEL 22”
RAPID FEED RATE 1181 IPM
TURRET TYPE AUTO INDEXING
NO. OF TOOL STATIONS 12 POSITION
SQUARE TOOL SHANK SIZE 1.25"
TAILSTOCK TRAVEL 17.6”
POWER REQUIREMENTS 208 V, 3 Ph, 50/60 Hz, 111 Amp
MACHINE WEIGHT 11,000 LBS
MACHINE DIMENSIONS (LWH) 108” x 74” x 75” (w/o Conveyor)
