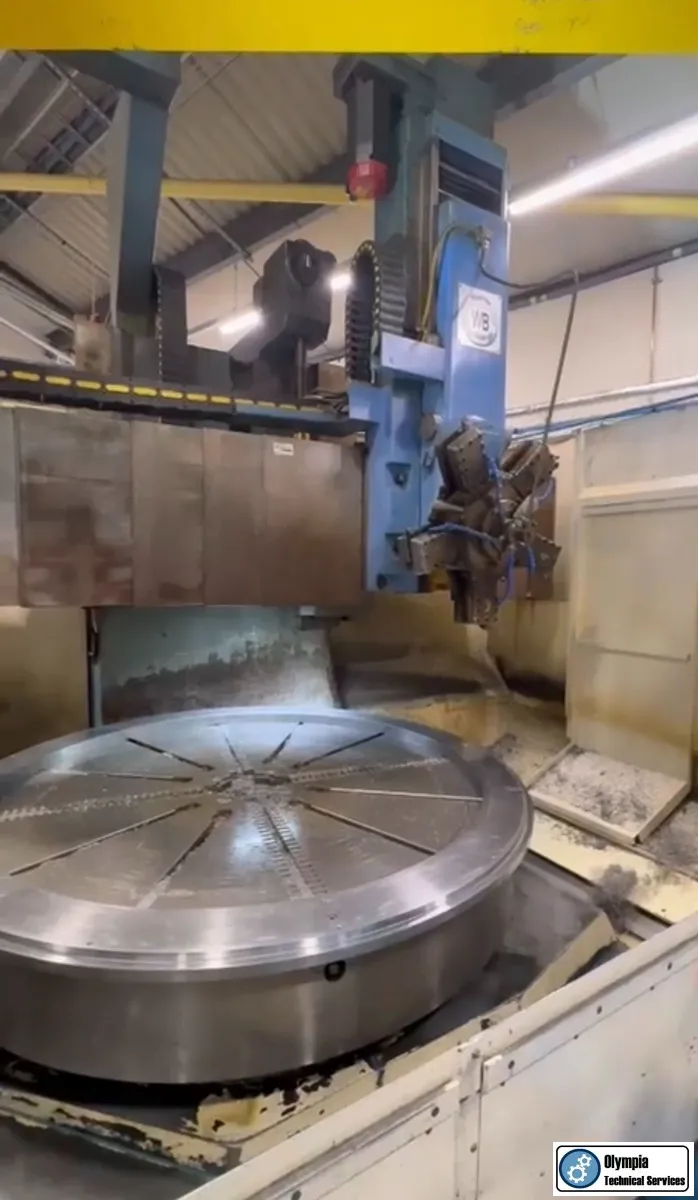

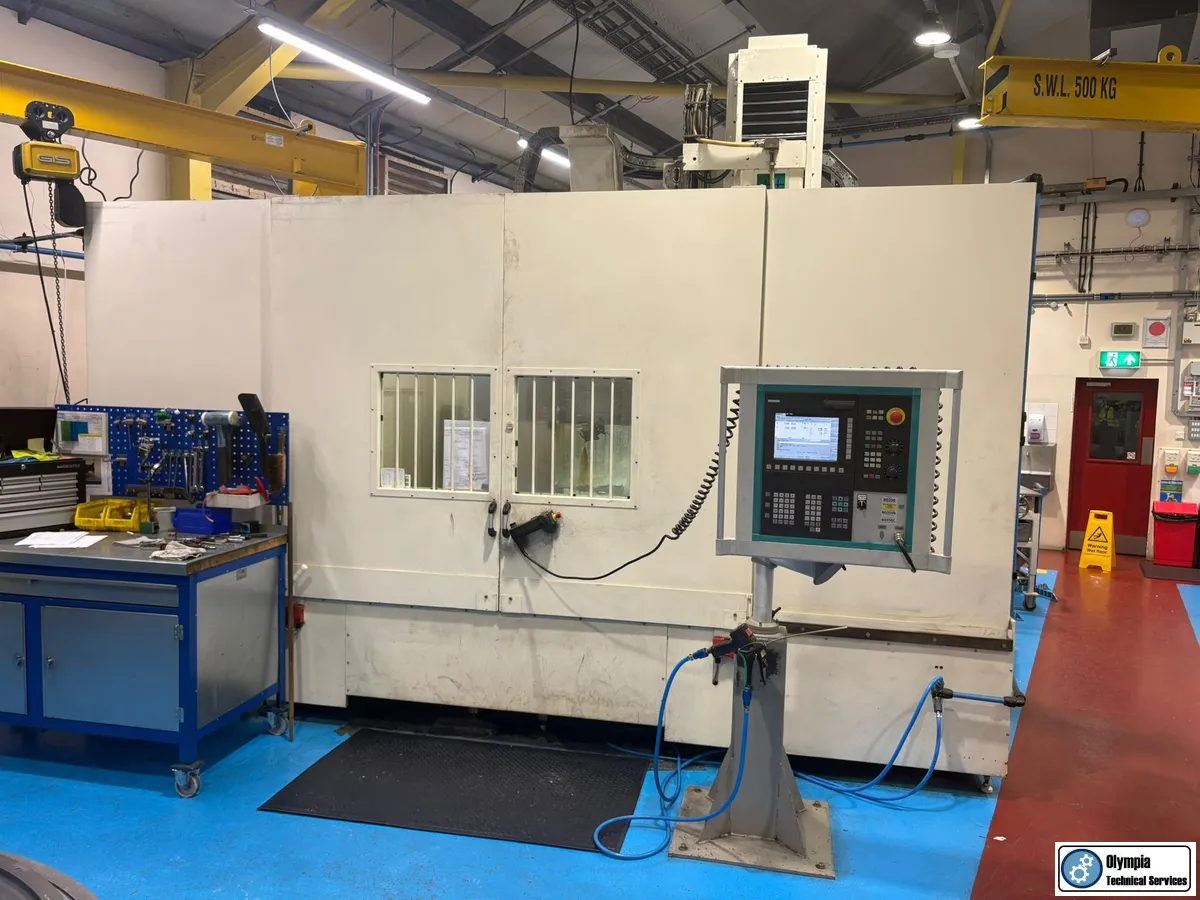

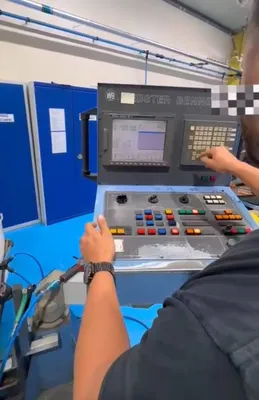

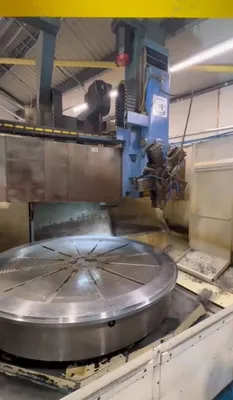

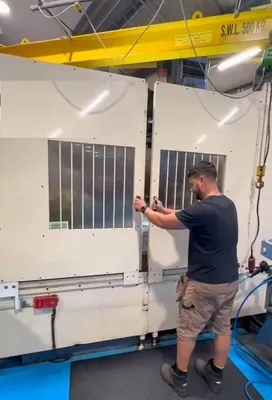

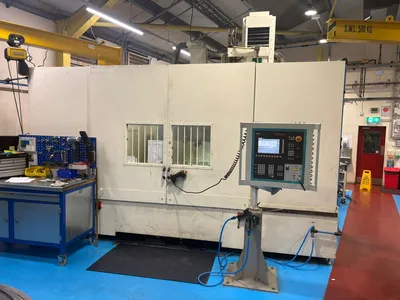

USED WEBSTER & BENNETT 72 E-R CNC VERTICAL BORING MILL, 72" TABLE, 84" SWING, FANUC 18i-TB CNC CONTROL

Machining diameter 84"
Table diameter 72"
Maximum machining height (Under Turret) 59"
Maximum workpiece weight 35,200 LBS
Maximum ram travel (Z-Axis) 38"
Horizontal travel (X Axis) 50”
Cross rail travel 24”
Number of tools 5
Main drive motor capacity 50 HP
Table cutting speed range 2 - 150 RPM
Number of table speeds 2
Machine Dimensions (W x D) 185” x 120”
Machine Height (maximum w/cross rail in top position) 167”
Machine weight 35,000 lbs.
