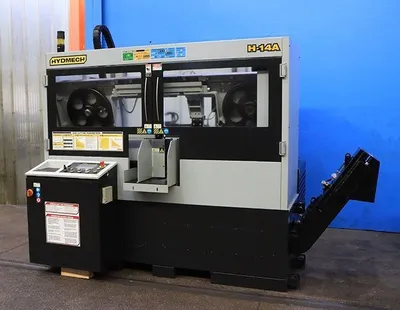

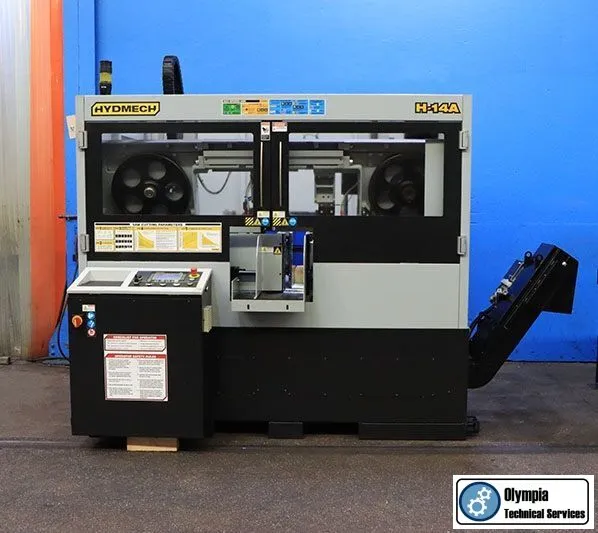

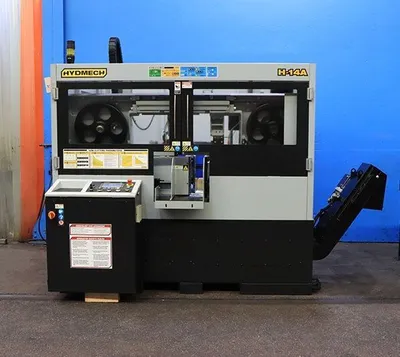

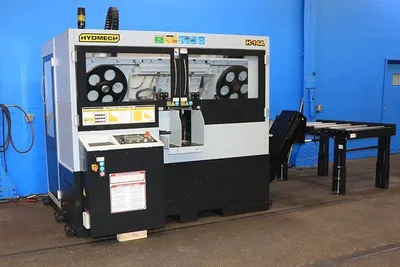

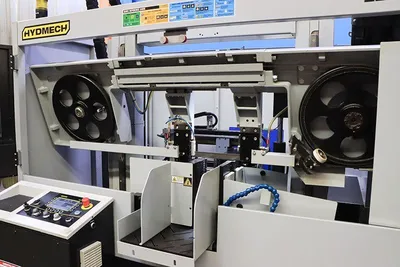

USED HYD-MECH H-14A HORIZONTAL BAND SAW 14" x 14" (2023)
Have one to sell?
ConditionUsed
1 available

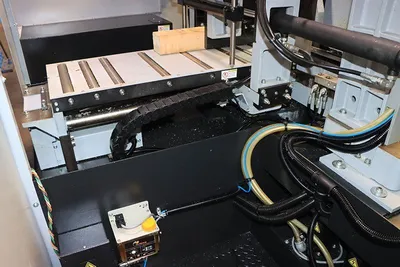

Featuring a powerful 8.8 HP variable frequency drive motor, the H-14A has a heavy-duty shuttle vise powered by a ball screw and vector motor. This provides material indexing up to 24” in a single stroke with multi-indexing capability.
Hyd-Mech H-14A Horizontal Band Saw (2012)
Blade Size: 1.25” x 15’ 2”
Capacity Rectangular: 14″ x 14″
Round: 14″
Remnant Length: 4.7” (11” w/OH bundling*)
Blade Drive: 8.8 HP VFD
Coolant Tank Capacity: 53 Gallons
Machine Voltage: 240 or 480 v
Blade Speed: 49-380 (660*) SFM
Table Height: 34”
Automatic Multi-indexing: 0-24”
Dimensions: 63" x 88" x 78"
Weight: 6,172 lbs.
- SINGLE STROKE WITH MULTI INDEXING

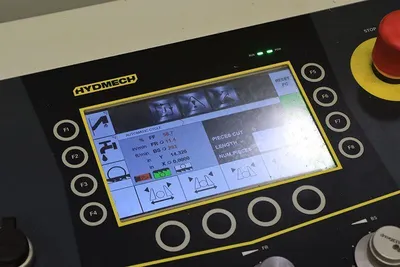

- PLC CONTROL FOR PROGRAMMING NUMBER & LENGTHS OF CUTS.
- MULTIPLE INDEXING OF VICES CAN BE PROGRAMMED FOR LONGER PIECES
- SHORT REMNANT OPTION 0.98"
- HYDRAULIC BLADE TENSION
- AUTOMATIC CHIP REOMVAL

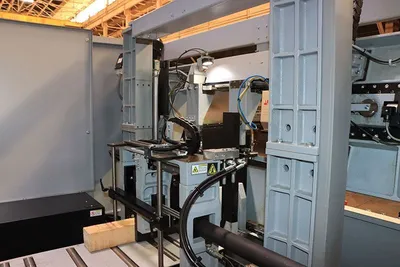

- THE MACHINE HEAD IS GUIDED ALONG TWO VERTICAL COLUMNS

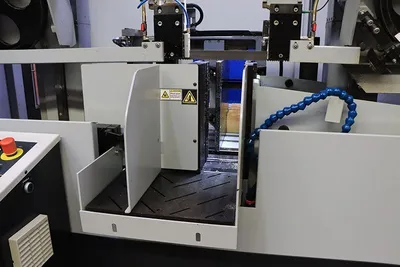

- SPLIT FRONT VISE
- MIST COOLANT SYSTEM OPTION
- COOLANT SYSTEM
- POWERED CHIP BRUSH
- HEAVY DUTY CAST IRON GUIDE ARMS

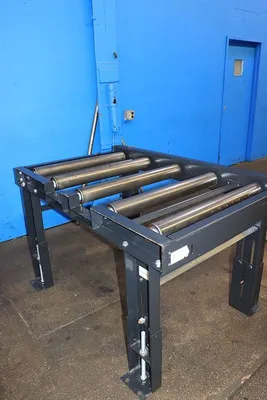

- 5' OF CONVEYOR
