USED HYD-MECH H-14A HORIZONTAL BAND SAW 14" x 14" (2012)
Have one to sell?
ConditionUsed
1 available
Featuring a powerful 8.8 HP variable frequency drive motor, the H-14A has a heavy-duty shuttle vise powered by a ball screw and vector motor. This provides material indexing up to 24” in a single stroke with multi-indexing capability.

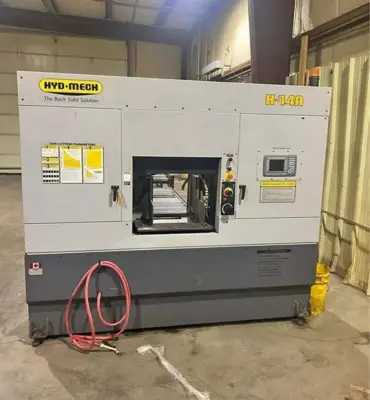

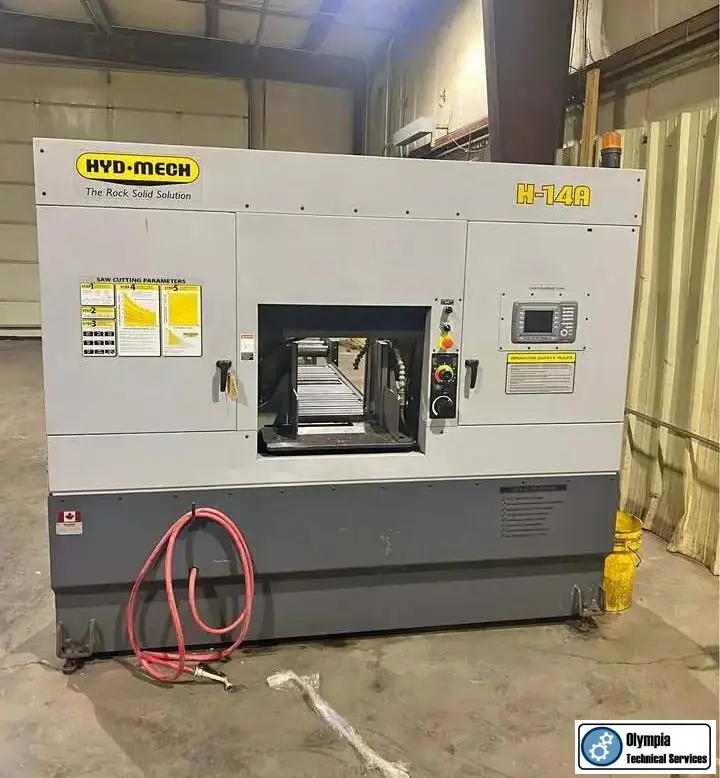

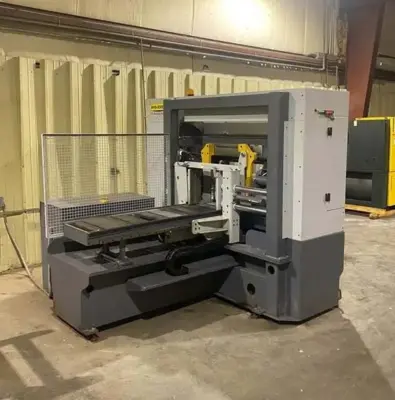

Hyd-Mech H-14A Horizontal Band Saw (2012)
Blade Size: 1.25” x 15’ 2”
Capacity Rectangular: 14″ x 14″
Round: 14″
Remnant Length: 4.7” (11” w/OH bundling*)
Blade Drive: 8.8 HP VFD
Coolant Tank Capacity: 53 Gallons
Machine Voltage: 240 or 480 v
Blade Speed: 49-380 (660*) SFM
Table Height: 34”
Automatic Multi-indexing: 0-24”
Dimensions: 63" x 88" x 78"
Weight: 6,172 lbs.
- Heavy-duty cast iron saw head
- Spilt front vise allows for short 4.7” remnant length
- Cast iron shuttle features automatic multi-indexing up to 24” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor
- On-demand hydraulics save energy
- Guide arms mounted on linear rails.
- Hydraulically powered idler side guide arm is adjustable for proper spacing
- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- Cast iron band wheels
- Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
- Replaceable blade brush
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Blade deviation monitor
- Variable vise pressure
- Out of stock switch
- Designed for safety with saw-in-the-box style
- Electronic band tensioning with digital readout
- Replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
