SWING OVER BED 21.7"
MAX CUTTING DIAMETER 11.4"
MAX CUTTING LENGTH 19.7"
X-AXIS TRAVEL 8"
Z-AXIS TRAVEL 22.8"
C-AXIS 0.001 DEG
CHUCK SIZE 10"
BAR CAPACITY 3"
SPINDLE BORE 3.38"
SPINDLE NOSE A2-8
SPINDLE MOTOR 25 hp
SPINDLE SPEED 3,500 RPM
TURRET CAPACITY 12
TURRET TYPE BMT55
LIVE MILLING SPEED 5,000 RPM
DOOSAN-FANUC i SERIES CONTROL
LNS QUICK LOAD SERVO 80 S2 MAGAZINE BAR FEEDER (5 Feet)
LIVE MILLING

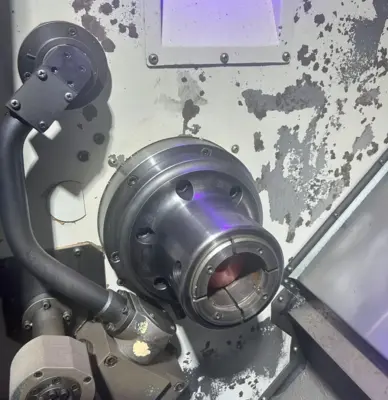

COLLET CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
BOX WAYS

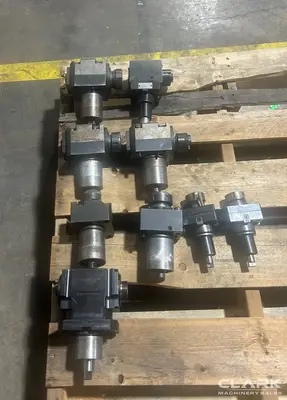

(13) LIVE TOOL HOLDERS
** AS OF JULY 2026, CUTTING TIME – 3,506 HOURS
This equipment has been sold. Similar equipment available now is shown below.
