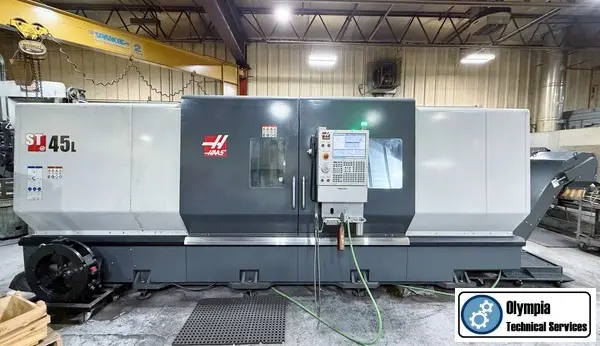

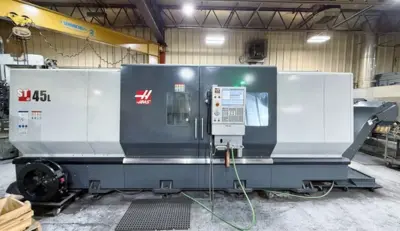

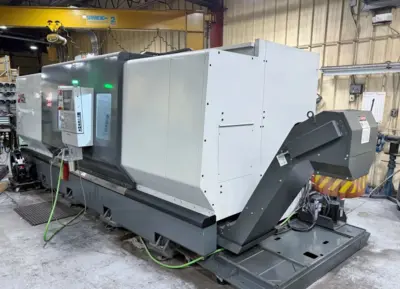

HAAS ST-45L 3-Axis CNC Turning Center (2020)
Have one to sell?
ConditionUsed
1 available
HAAS ST45L with HAAS NEXTGEN CNC CONTROL, LIVE MILLING, 6.5" BAR CAPACITY, 80" CUTTING LENGTH, HIGH PRESSURE COOLANT, & LOW CUTTING HOURS
OEM SPECIFICATIONS
SWING OVER BED 34.5"
MAX CUTTING DIAMETER 25.5"
MAX CUTTING LENGTH 80"
X-AXIS TRAVEL 17"
Z-AXIS TRAVEL 80"
CHUCK SIZE 18"
BAR CAPACITY 6.5"
SPINDLE BORE 7.0"
SPINDLE NOSE A2-11
SPINDLE MOTOR 55 hp
SPINDLE SPEED 1,400 RPM

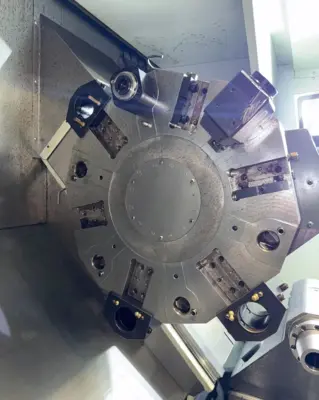

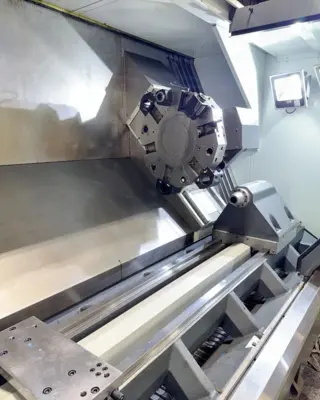

TURRET CAPACITY 12
TURRET TYPE HYBRID BOT/VDI
LIVE MILLING SPEED 6,000 RPM
POWER 220 V / 3 Ph / 60 Hz
DIMENSIONS 254″ x 95″ x 105″ High
WEIGHT 29,900 lbs

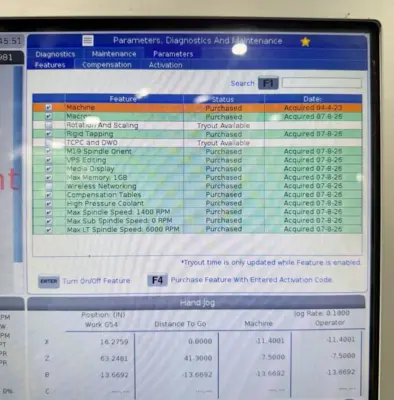

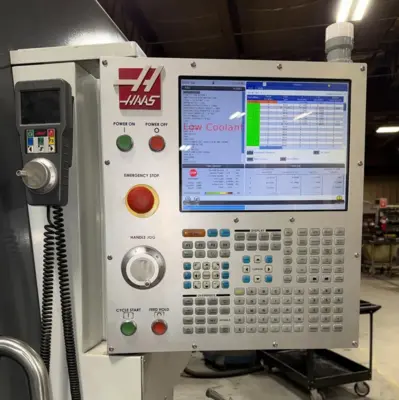

HAAS NEXTGEN CONTROL
EXTRA-PERFORMANCE OPTION (55 HP)
18”, 3-JAW LMC HYDRAULIC CHUCK (NOT INSTALLED)

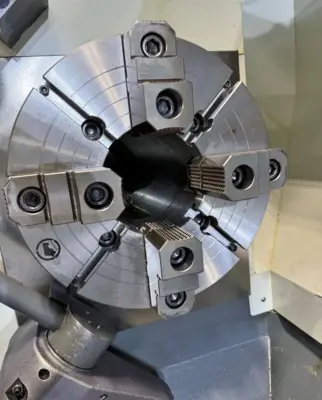

16", 4-JAW MANUAL CHUCK (CURRENTLY INSTALLED

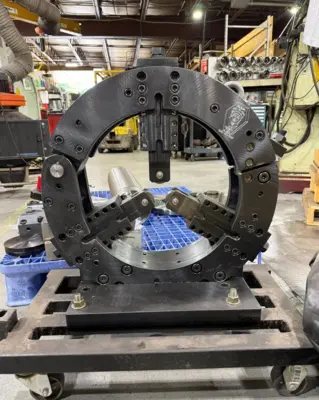

RIP-116 MANUAL STEADY REST (1” – 16”)
STEADY REST PROVISION
EXTENDED TOOL POCKET
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
HIGH-PRESSURE COOLANT (1,000 PSI)
AUXILIARY COOLANT FILTRATION SYSTEM
REMOTE JOG HANDLE (TOUCH SCREEN)
HIGH-INTENSITY LIGHTING
CHIP TRAY FILTER KIT
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1 GB MEMORY
HAASCONNECT: REMOTE MONITORING
HAAS DROP
WIFI CONNECTIVITY
(1) RADIAL LIVE TOOL HOLDER
(1) AXIAL LIVE TOOL HOLDER
AN ASSORTMENT OF STATIC HOLDERS
** AS OF JULY 2026, CUTTING TIME – 347 HOURS
