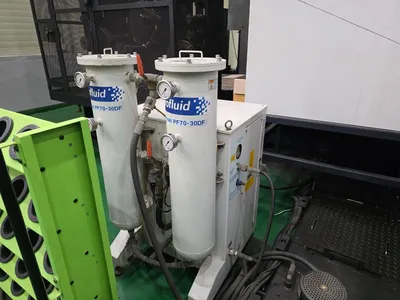

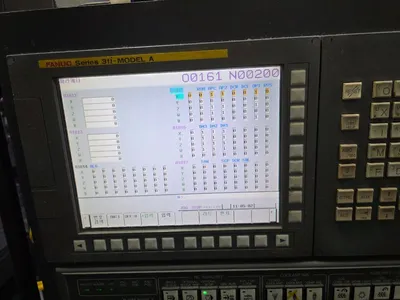

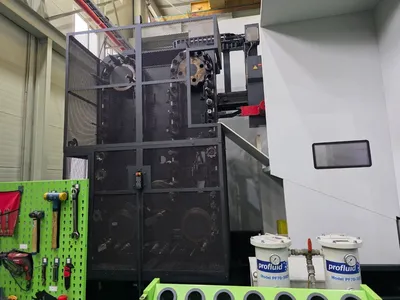

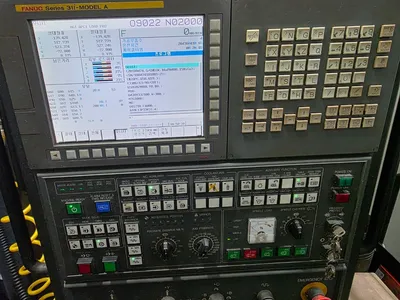

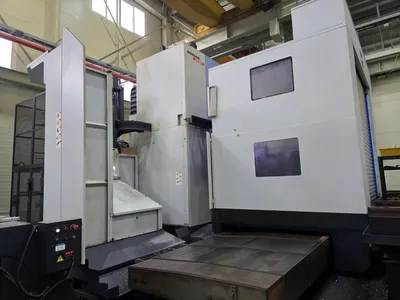

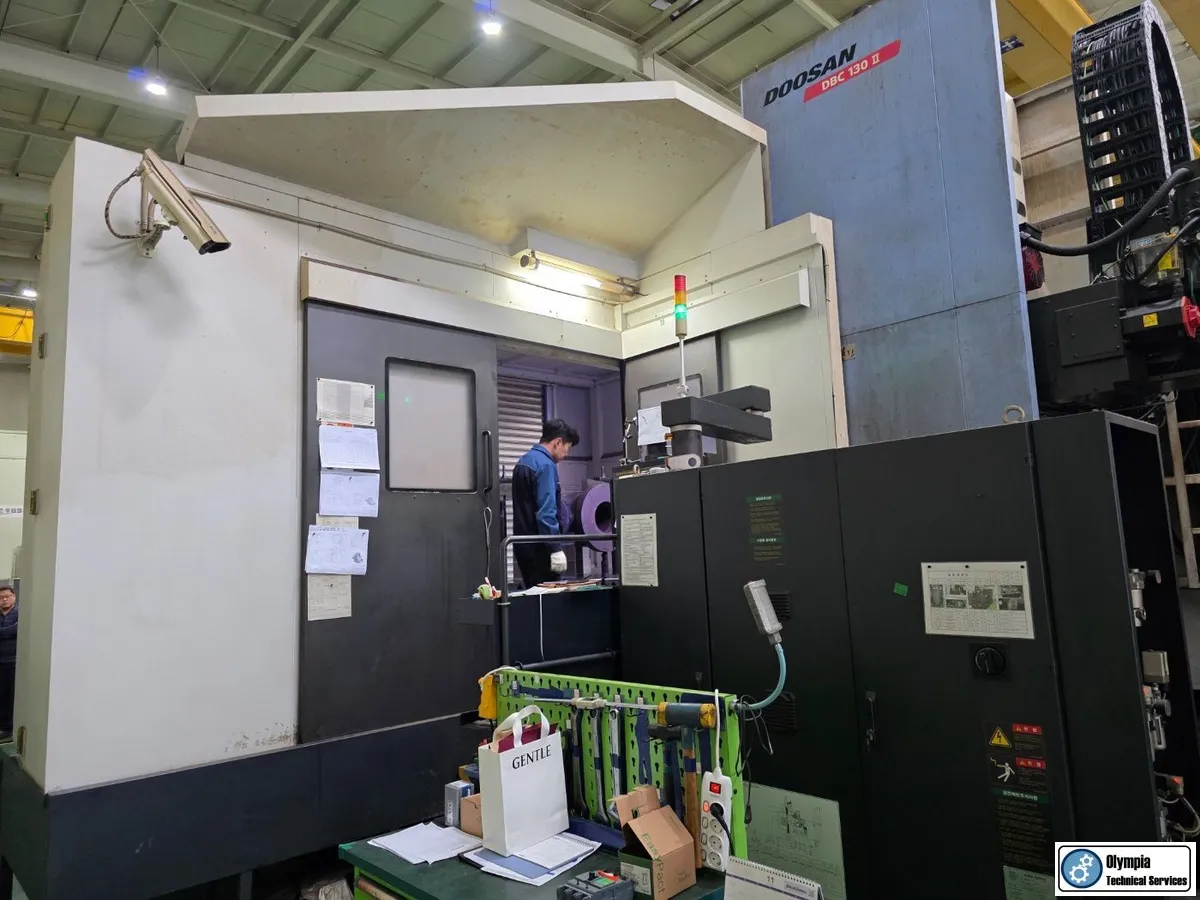

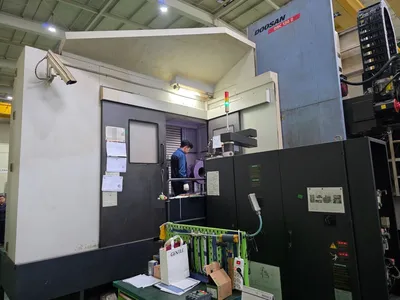

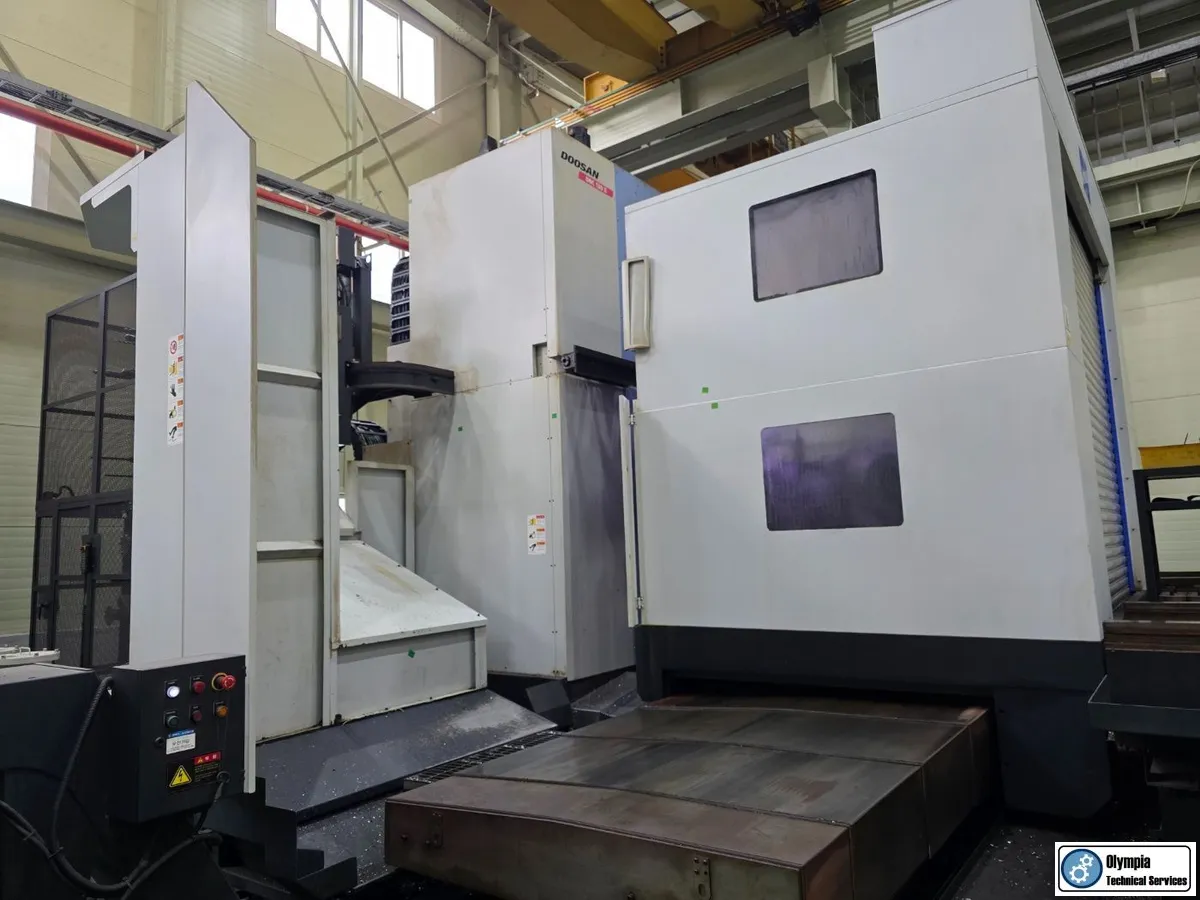

Doosan DBC-130L II CNC Horizontal Boring Mill, 2013, Fanuc 31i-MB, ATC 90 position, TSC & 2 Pallets

X axis travel 3000 mm (118.1")
Y axis travel 2250 mm (88.6")
Z axis travel 2000 mm (78.7")
W axis travel 700 mm (27.6")

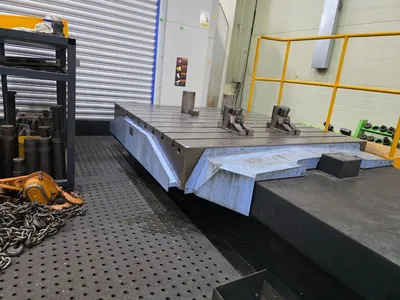

Table Size 1600 x 1600 mm (63" x 63")
Indexing Rotary B-Axis 360,000 positions (0.001 deg.)
Max. table load 15000 kg (33,000 lbs.)
Locating Pins (4) @ 90 Degrees (+/- 5" position accuracy)
Max Work piece Diameter (With Semi Splash Guard) 3400 mm (133.8")
Max Work piece Diameter (Guard Removed) 3900 mm (153.5")

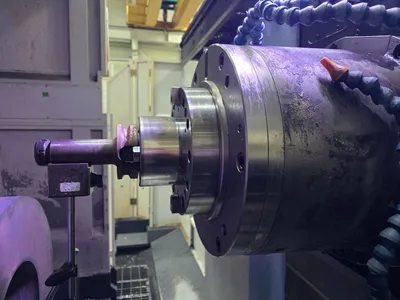

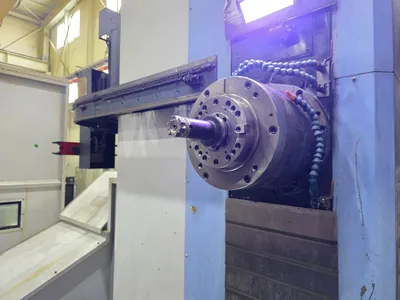

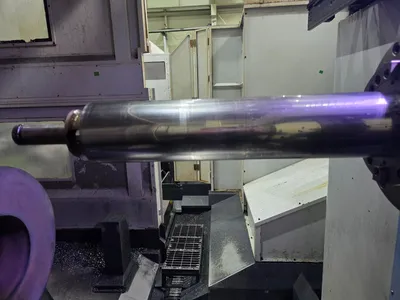

Boring spindle diameter 130 mm (5.1")

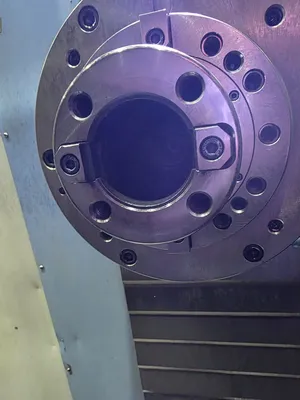

Spindle taper CAT 50 Big Plus
Spindle speed 10 - 2,500 rpm
AC Spindle Motor 22/30 kW (30/40 HP)
Spindle Torque 3940 Nm (2,960 ft-lbs)
Machine Height 4905 mm (193")
Floor Space Required (L x W) 7660 mm x 9286 mm (301.5" x 365.6")
Machine Weight 50500 kg (111,100 lbs.)
