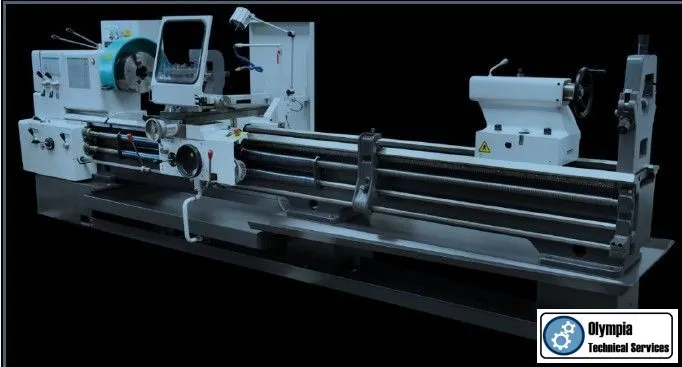

REMANUFACTURED TOS TRENCIN SN 71B/3000 Engine Lathe 28” x 120”
Have one to sell?
ConditionUsed
1 available
Imperial
MAXIMUM SWING OVER BEDWAYS 28"
MAXIMUM SWING OVER CARRIAGE 17"
SWING IN GAP 39.4"
DISTANCE BETWEEN CENTERS 120"
SPINDLE SPEEDS: (16) 10-1000 RPM
SPINDLE BORE 3.0"
MAIN MOTOR 15 HP
SPINDLE TORQUE 2400 Nm
ELECTRICS 230/460 V / 3Ph / 60 Hz
MODEL SN 63/3000
SERIAL # n/a
YEAR 2024 Remanufactured
WEIGHT 7200 LBS.(approx.)
DIMENSIONS 195" x 131"
Machine with modern Motor and Electrics
USA/CAN electrical components (UL/CSA approved)
Documentation in English
Warranty 12-months (parts)
CE/CSA/UL Electrical Approved
YOM: Remanufactured 2024
Machine ACCESSORIES (Included):
1 pc Steady rest (fixed)
1 pc Follow rest (movable)
Threaded watch
Chuck cover
Guide screw and Tie Rod cover
Flange 315 B8
Flange 400 B8
Digital Readout LIMAT 2-axes (DRO)
Multi-head type C + 2 pcs knife holders
OPTIONS NOT INCLUDED
- 4-jaw chuck BISON 20'' - $5,460
- 3-jaw chuck BISON 16'' - $5735
- ALGRA 700 Series Multifix Quick Change Turret - $4,900
- Isolated transformer 600V/440V/220V - $4,500
