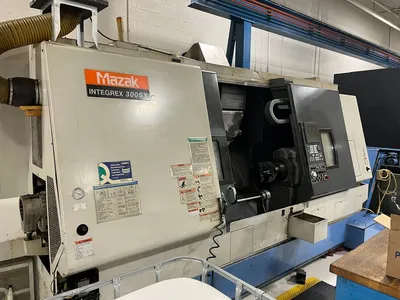

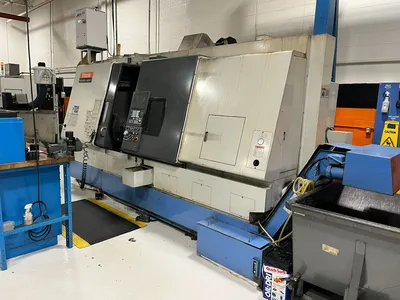

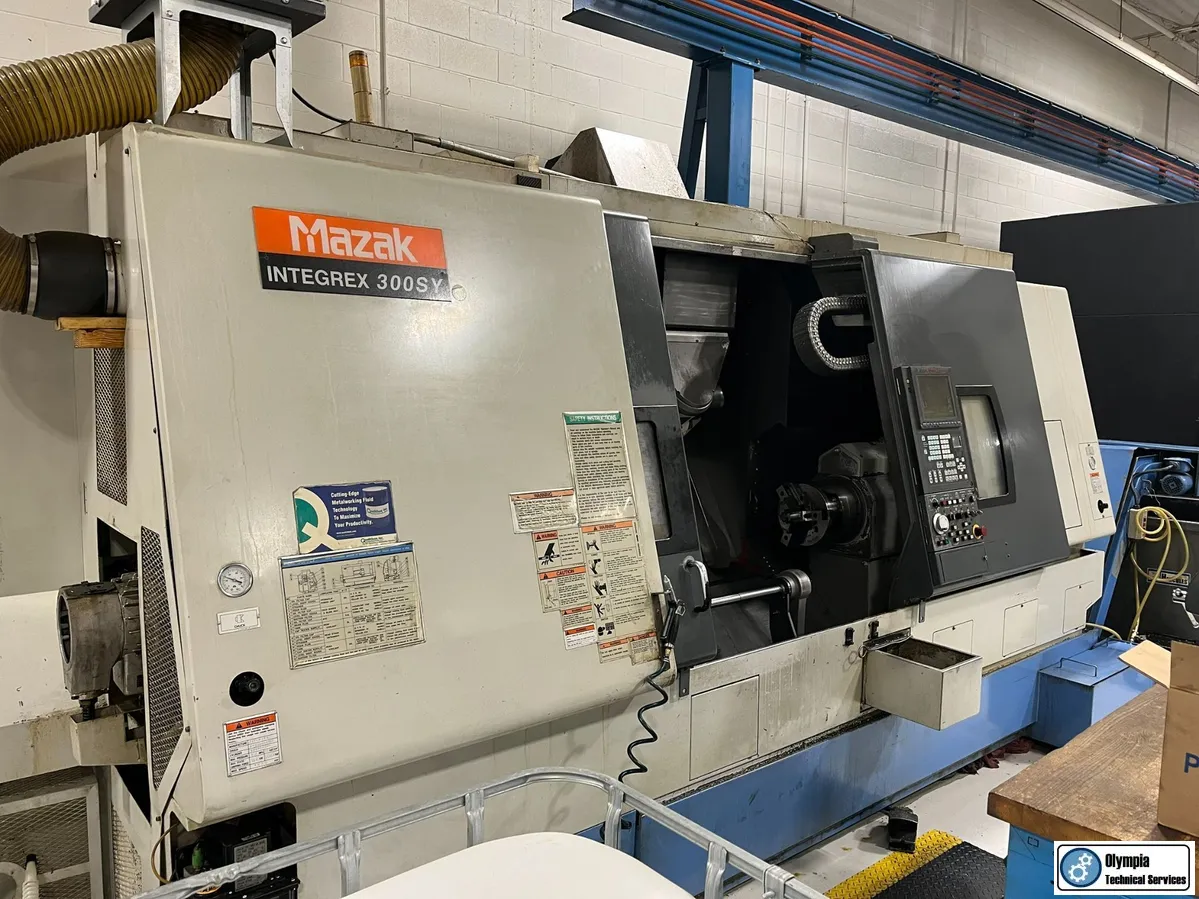

MAZAK NEXUS INTEGREX 300-SY 5-AXIS CNC LATHE WITH 10" 3-JAW CHUCK & CHIP CONVEYOR

OEM SPECIFICATIONS (IMPERIAL)
Maximum swing over cross slide 13.8"
Maximum machining diameter 24"
Distance between centers 40"
X-axis travel 22.83"
Y-axis travel +/- 4.13"
Z-axis travel 43.11"
B-axis tilt movement 225 Degrees at 0.001
C-axis rotation 0.001 Degree
Spindle nose A2-8
Spindle bore / bar capacity 3.46" / 3"
Spindle speed 4,000 RPM
Spindle motor 40 HP / 30 HP
Sub-spindle nose A2-8"
Sub-spindle bore / bar capacity 2.99" / 2.5"
Sub-spindle speed 4,000 RPM
Milling spindle speed 10,000 RPM
Milling spindle motor 20 HP

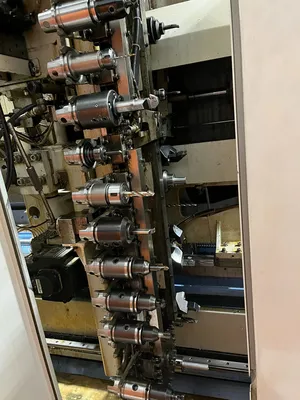

Tool magazine capacity 40 Station Tool Changer
Rapid traverse rates (x, y, z) 1181/590/1181 IPM
Machine dimensions (LWH) 207" x 118" x 110"
Machine weight 22,600 lbs.
