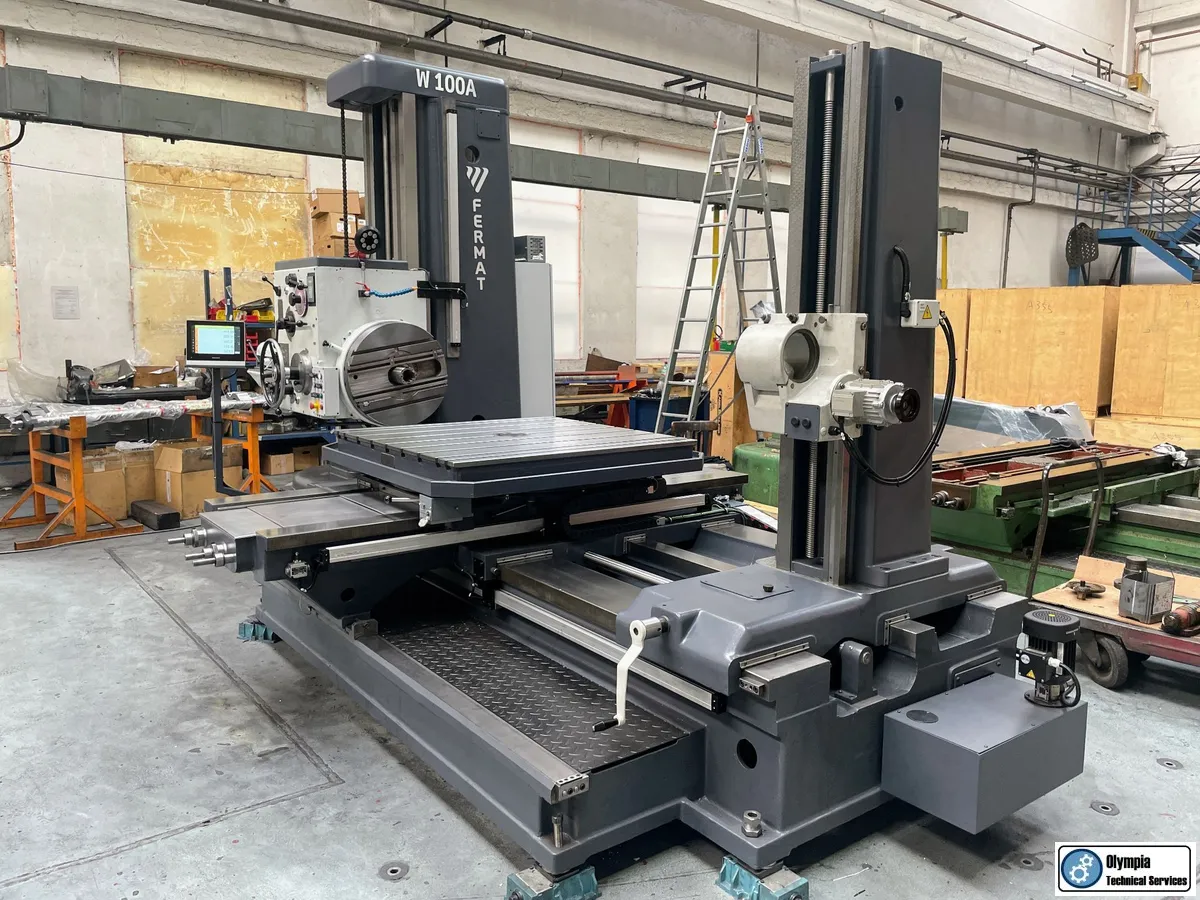

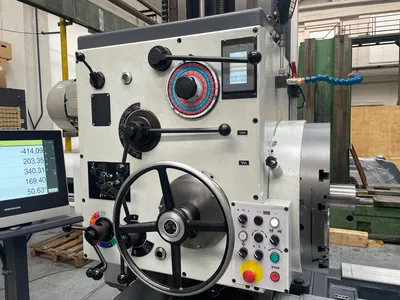

FERMAT W100A TABLE TYPE HORIZONTAL BORING MILL (2026)
Have one to sell?
ConditionNew
1 available
New
TECHNICAL SPECIFICATIONS
Machine type............ Manual Table Type Boring Machine
Make.................... FERMAT
Type.................... W100 A
Year / Sn#.............. 2025 / Sn# n/a
Control/DRO............. 5-Axis Digital Readout Heidenhain
Technical details
X-travel................ 1600 mm 63”
Y-travel................ 1120 mm 44.1”
W-travel (spindle)...... 900 mm 35.9”
Z-travel................ 1250 mm 49.2”
Spindle Dia............. 100 mm 3.93”
Spindle taper........... ISO 50

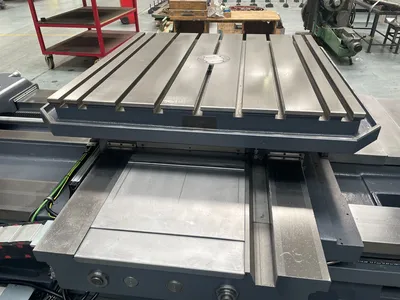

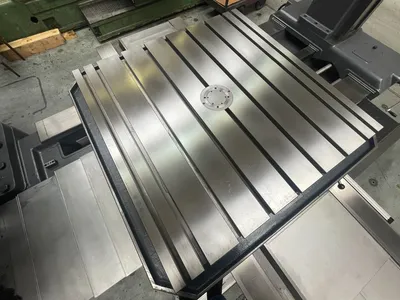

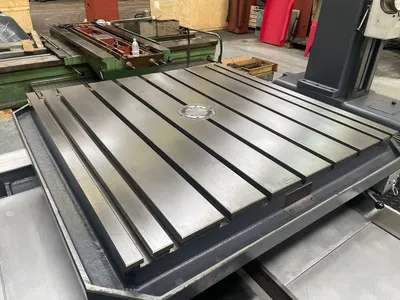

Table-size.............. 1250 x 1250 mm 49.2” x 49.2”
Table load capacity..... 3000 kg 6600 lbs.
Spindle speed:.......... 9 to 1120 rpm
Spindle Motor........... 11 kW. 15 HP
Weight of the machine... 17500 kg. 38,500 lbs.
Dimensions (LWH)........ 5.9 x 3.6 x 3.0 m 264” x 135” x 118”

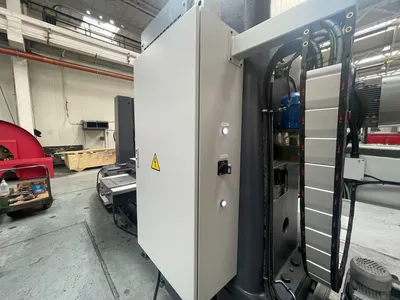

Machine with modern Motor and Electrics (UL/CSA compatible)

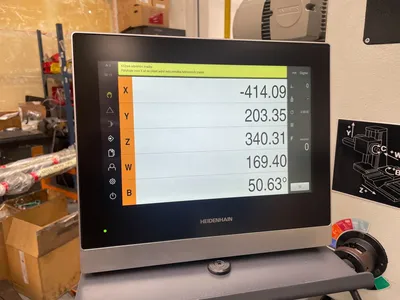

5-Axis Digital Readout Heidenhain (DRO)

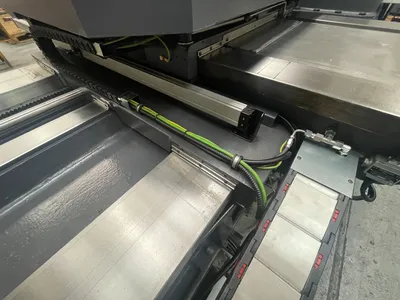

Scales on X, Y, Z and W-Axis
B-Axis measurement with built-in rotary encoder and 4×90° Optical Readout

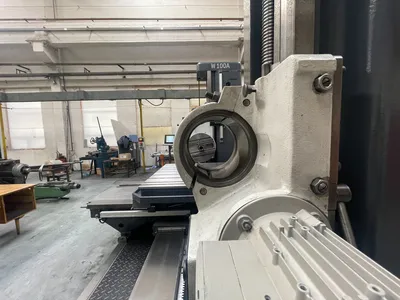

Long-life Spindle and Spindle Bearings

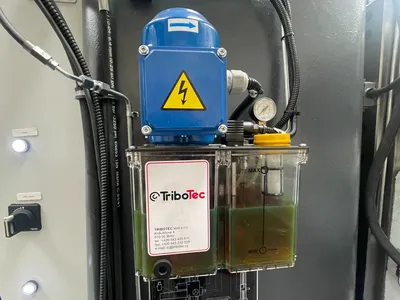

Central Lubrication System for All Axes
Telescopic Covers

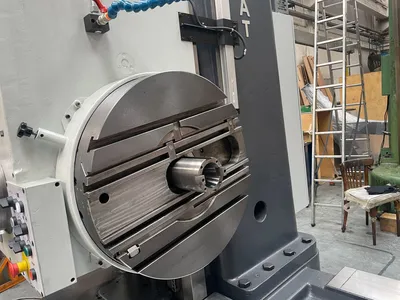

24" Facing Head with max. face milling diameter 35.5"
Facing Head
Tail stock assembly
Documentation
Electrical Specifications: 3-Phase, 400V, 50/60Hz
12 Months OEM Warranty
