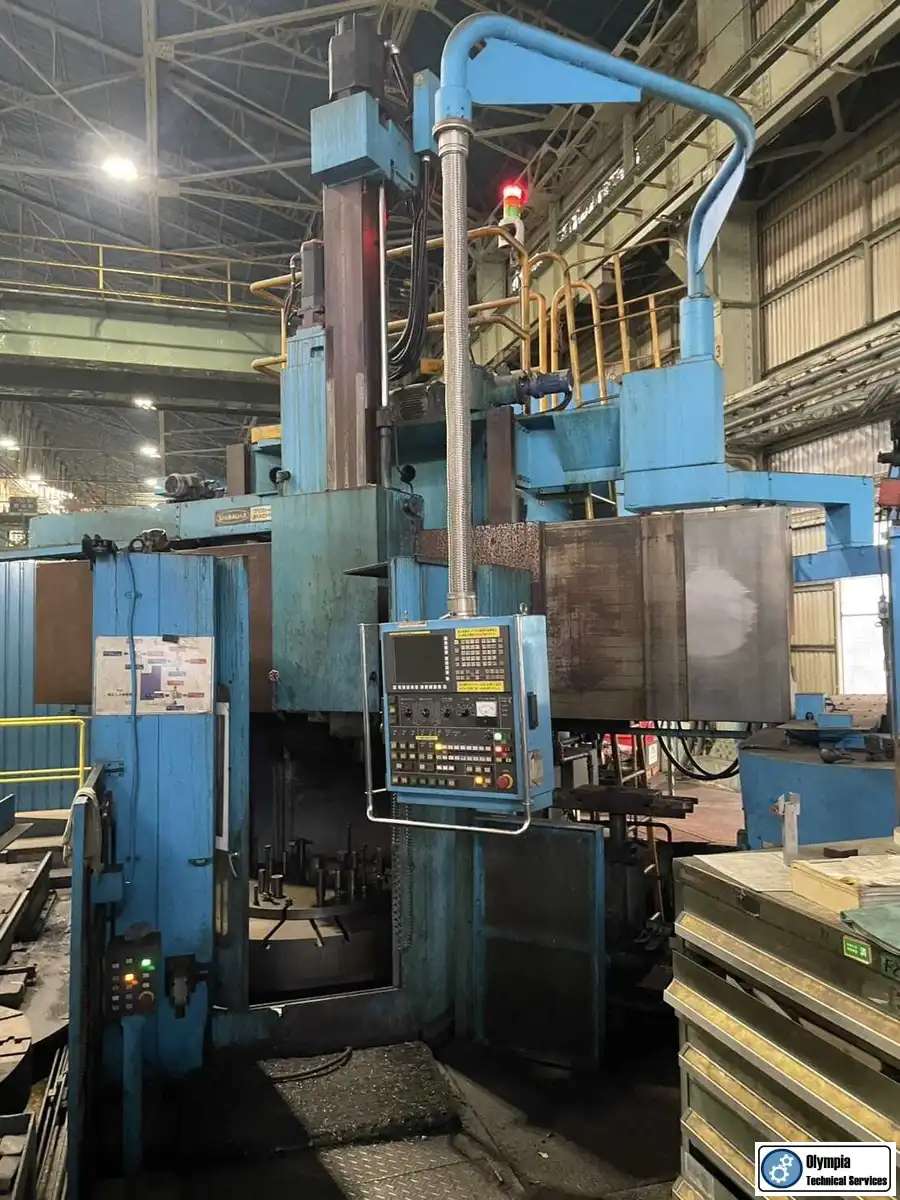

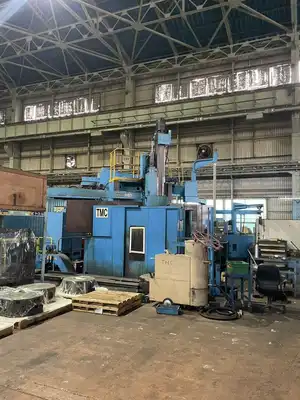

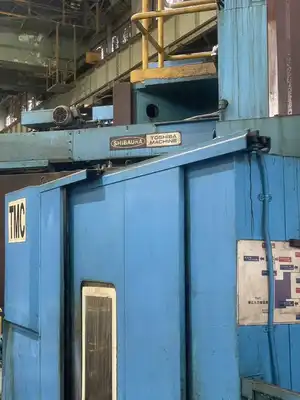

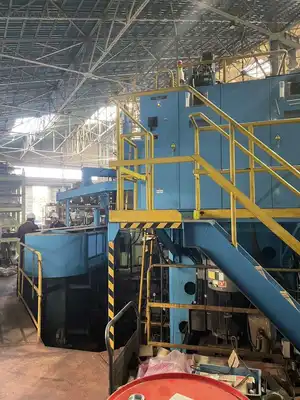

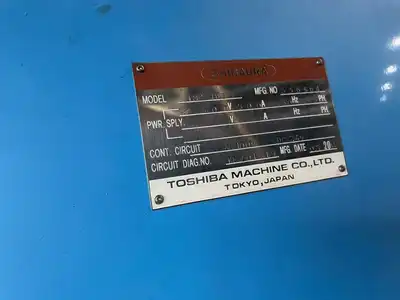

USED TOSHIBA TMC-16C APC CNC VERTICAL BORING MILL WITH LIVE MILLING & APC (year 2014 Retrofit)

Machining diameter 78.7"

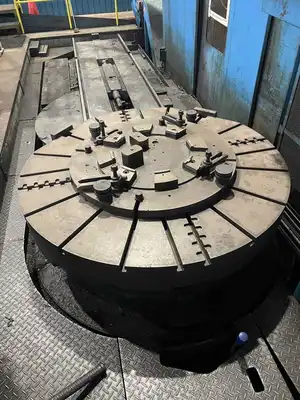

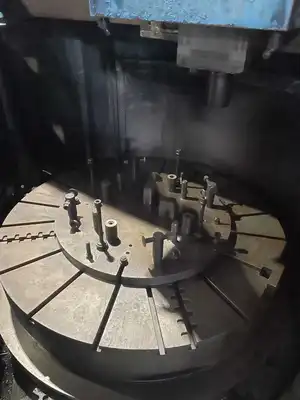

Table diameter 63"
Maximum machining height (w/ tool) 45.3"
Maximum distance under rail 53.1"
Maximum workpiece weight on APC 11,000 LBS
Maximum ram travel (Z-Axis) 41.34"
Horizontal travel (X Axis) -4.0” / 61.75”
Ram size 8.3" x 8.3"

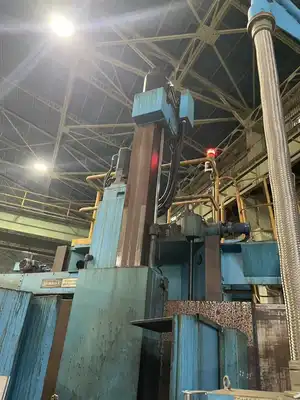

Cross rail travel (4 steps) 39.37”
Number of tools in ATC 60

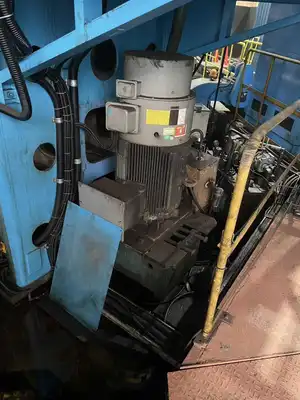

Main drive motor capacity 50 HP
Table cutting speed range (2 ranges) 1-300 RPM
Maximum Table Torque 14,750 Ft-lb.
Milling spindle motor 20 HP
Milling spindle speed 2000 RPM
Rapid feed rate (X & Z) 393 / 393 IPM
Maximum cutting feed rate 236 IPM

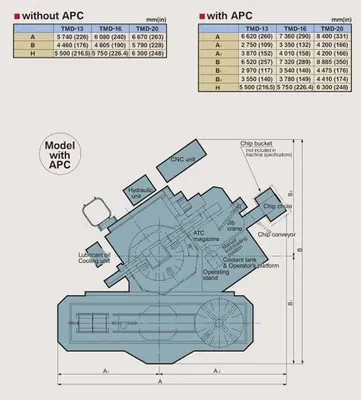

Machine Dimensions (W x D) 289” x 290”
Machine Height(w/cross rail in top pos) 226”
Machine weight 72,750 lbs.
