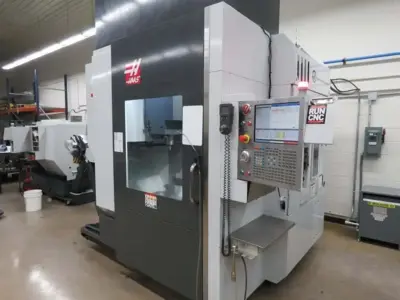

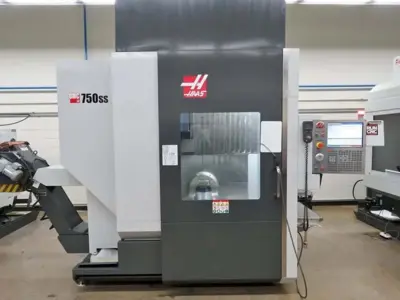

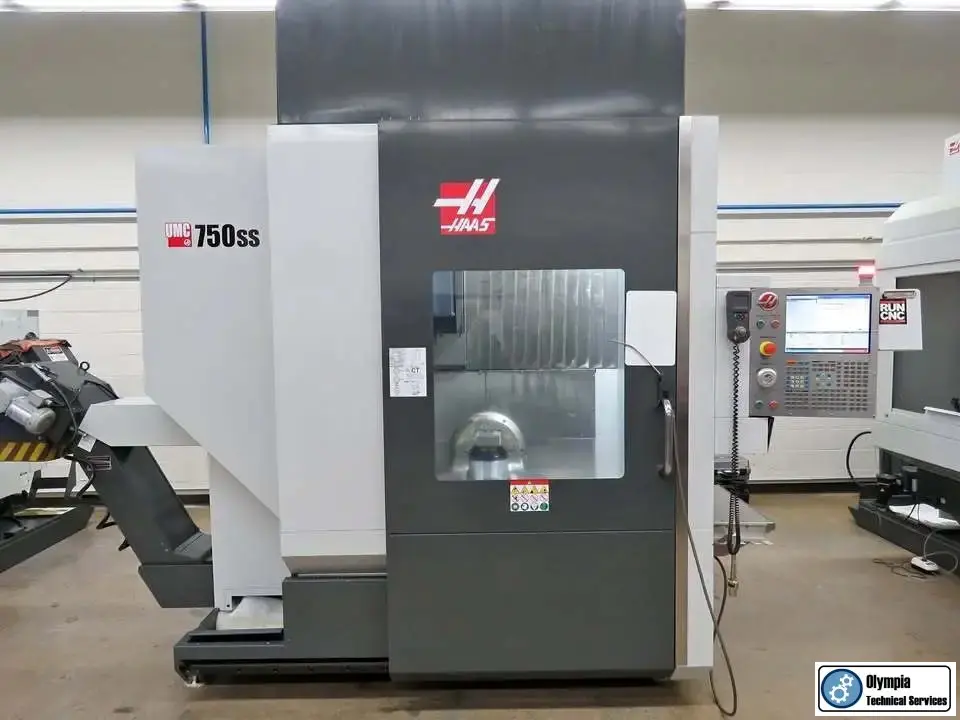

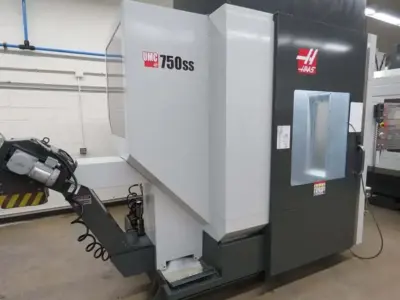

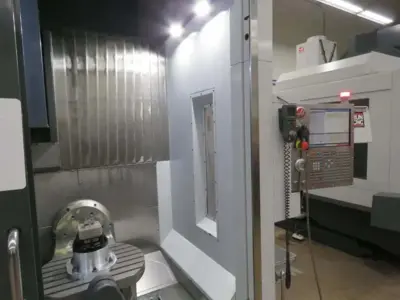

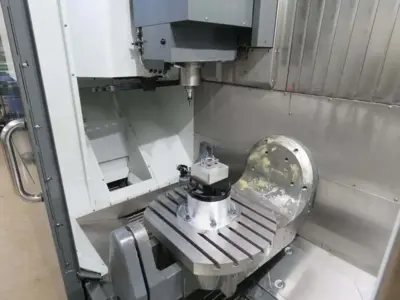

HAAS UMC-750SS 5-AXIS CNC VERTICAL TURN MILL CENTER (2016)

X axis travel 762 mm (30")
Y axis travel 508 mm (20")
Z axis travel 508 mm (20")
A axis travel +120 to -35 deg tilt
C axis travel 360 deg Rotary
Rapid Feed rate 30.5 m/min (1200 IPM)
Table Size 500 mm φ (19.7"φ)
Max Work Piece Diameter 630 mm (24.8")
Max Table Load 300 kg (660 lbs)
ATC Capacity 41 ATC

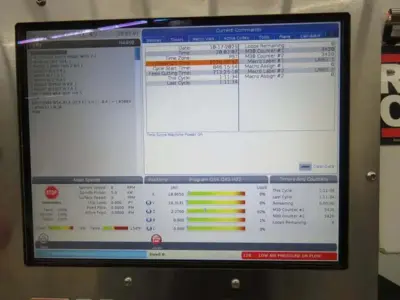

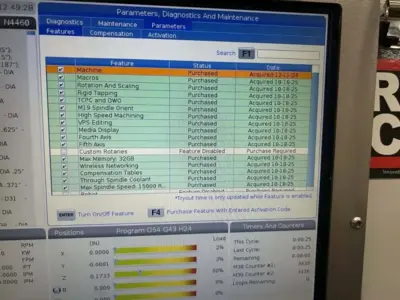

CNC Control HAAS CNC
Spindle Taper CAT 40
Spindle Speed 15,000 RPM
Spindle Motor 22 kW (30 HP)
Machine Height 3,150 mm (124")
Space Required (L x W) 4015 mm x 3130 mm (158" x 123")
Width with conveyor 3810 mm (150")
Machine Weight 6465 kg (14,250 lbs)
