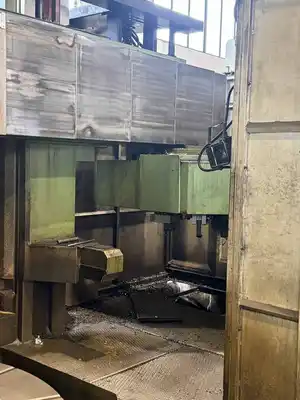

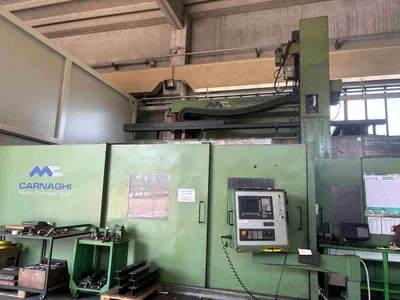

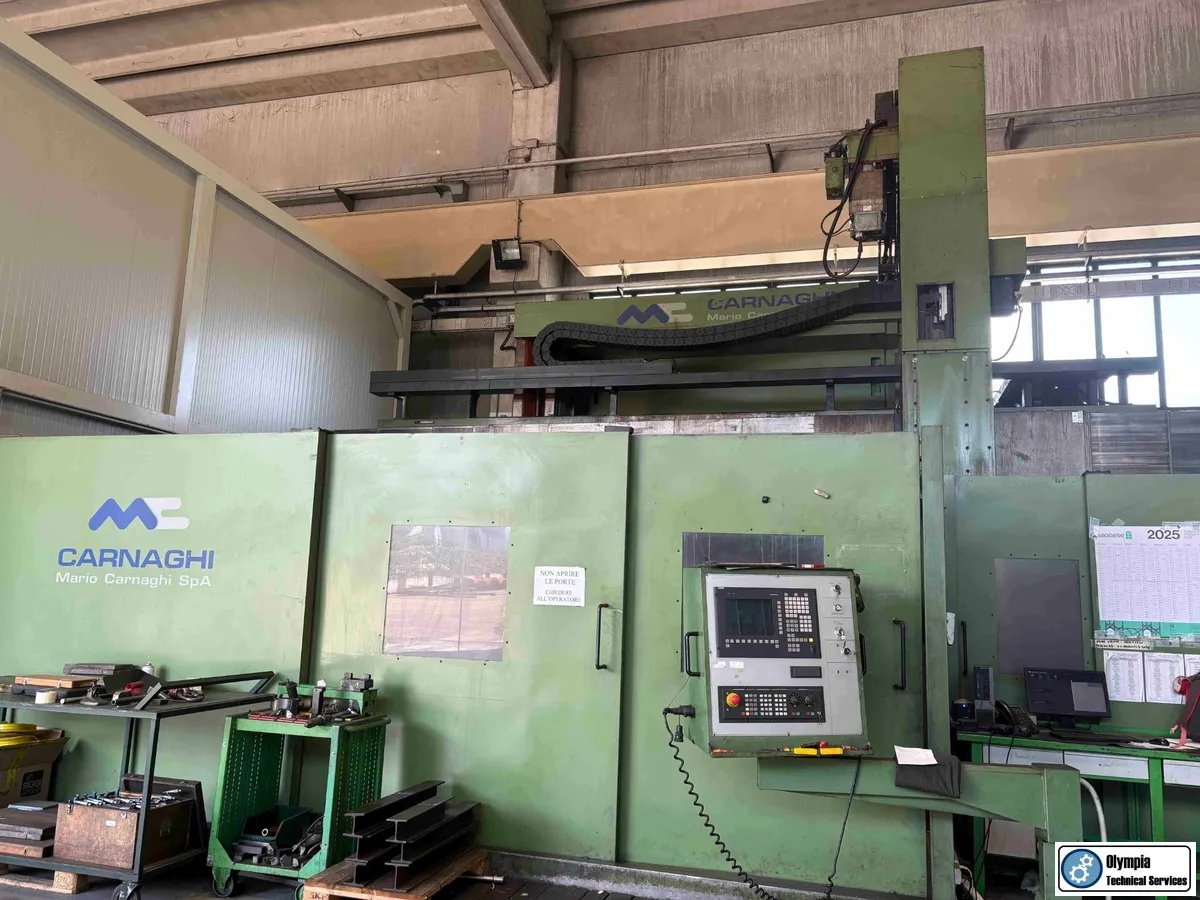

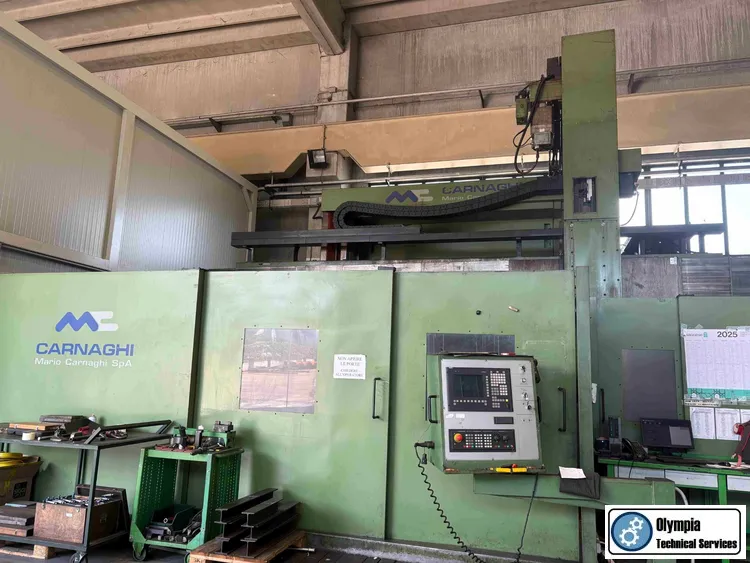

USED M. CARNAGHI MODEL TPG 20-25 VERTICAL BORING MILL, 98" TABLE, 118" SWING, 170 RPM, 80 HP, Y-AXIS, MAX. WORK HEIGHT 106", LIVE MILLING, SIEMENS 840D CNC, NEW 2005
Machining diameter 118"

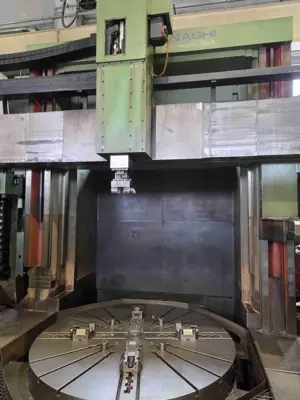

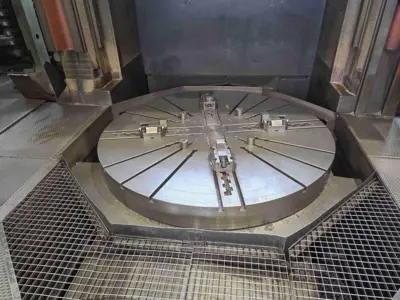

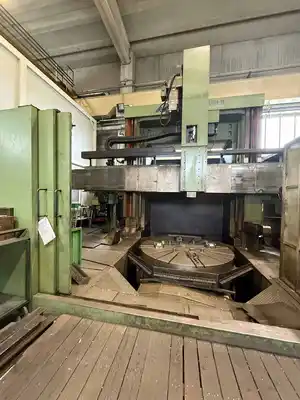

Table diameter 98”
Maximum machining height (w/ standard tool installed) 106"
Maximum workpiece weight 77,000 LBS
Maximum ram travel (Z-Axis) 60"

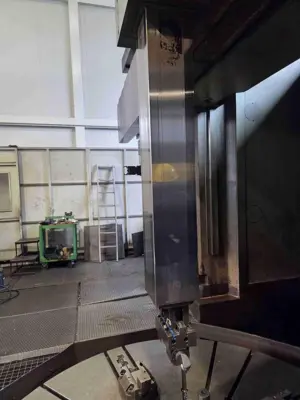

Ram size 9.8" x 9.8"

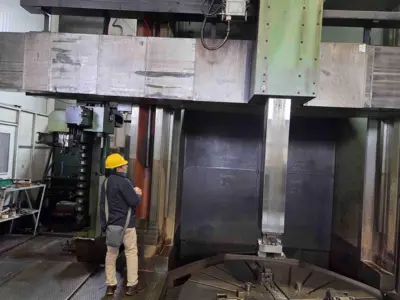

Cross rail travel 55"
Y-Axis Travel +/-30" (60")
C-Axis 0.001 deg
Number of tools in automatic tool changers 12 + 40
Main drive motor capacity 80 HP
Table cutting speed range (infinitely variable) 1-170 RPM
Milling Spindle motor 30 HP
Rapid feed rate (X) 393 IPM
Rapid feed rate (Z) 393 IPM
Machine Dimensions (W x D) 346” X 288” (approx.)
Machine Height (maximum w/cross rail in top position) 316”
Machine weight 110,000 LBS

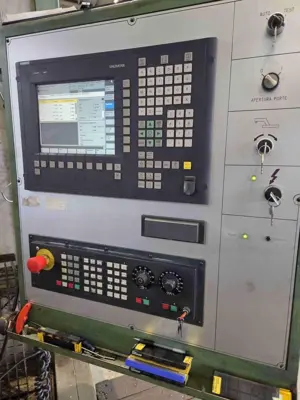

- SIEMENS 840D CNC

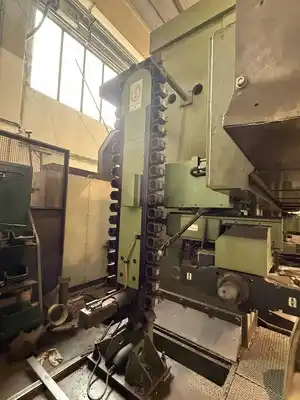

- 40 SEATS ATC FOR MILLING
- 12 SEATS ATC FOR TURNING

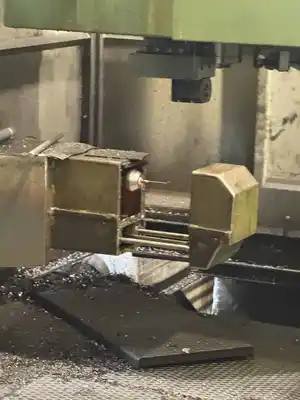

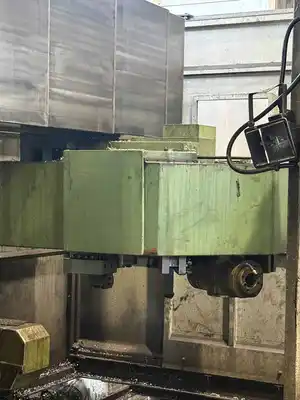

- N. 1 ANGULAR MILLING HEAD
- N. 1 VERTICAL MILLING HEAD
- RENISHAW
- TURNING AND MILLING TOOL HOLDERS

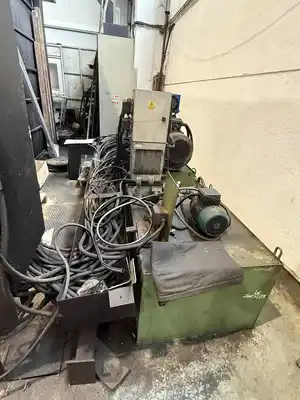

- CHIP CONVEYOR
- ALL AVAILABLE MANUALS
