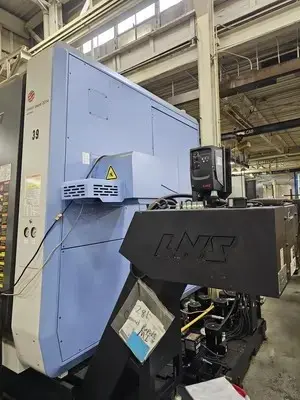

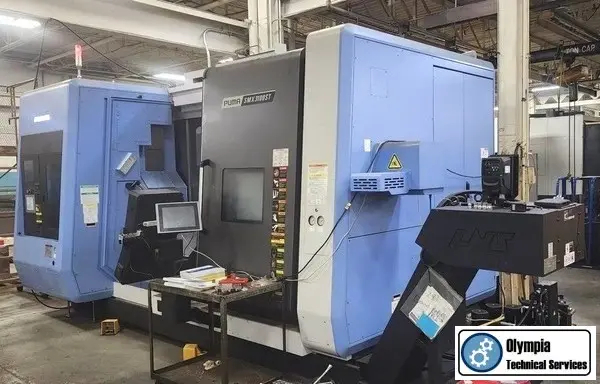

USED DOOSAN PUMA SMX 3100ST CNC MULTI TASK LATHE (2019)
Have one to sell?
ConditionUsed
1 available
TECHNICAL SPECIFICATIONS:
Swing Over Bed 660 mm (25.9")
Turning Diameter 660 mm (25.9")
Turning Length 1,540 mm (60.6")
Chuck Size Main 457 mm (18.0") 3-Jaw
Spindle Hole Thru 115 mm (4.5")
Spindle Bar Capacity 104 mm (4.1")
Spindle Speeds 3000 RPM
Spindle 1 Output 30 kW (40 HP)
Sub Spindle Output 30 kW (40 HP)
Sub Spindle Speed 4000 RPM
Sub Spindle Thru Hole Diameter 91 mm (3.6")
Sub Spindle Chuck Type 305 mm (12”) 3-Jaw
Rotary Tool Spindle Speed 12,000 RPM
Tool Storage Capacity 80
Tool Taper CAPTO C6
X1 - Axis Travel 630 mm (24.8")
Z1 - Axis Travel 1,585 mm (62.4")
Y - Axis Travel +/-150 mm (5.9")
B - Axis Indexing +/- 120 deg.
A - Axis Travel 1,562 mm (61.5")
C1 - Axis 0.0001 deg
C2 - Axis 0.001 deg
Milling Spindle B-Axis 0.0001 deg
Rapid Feed (X/Z/Y) 1181 IPM
Power Requirements 100 kVA
Machine Dimensions (L x W x H) 5.93 x 3.0 x 2.9m (233 x 118 x 112")
Machine Weight 18,500 kg (40,785 lbs.)

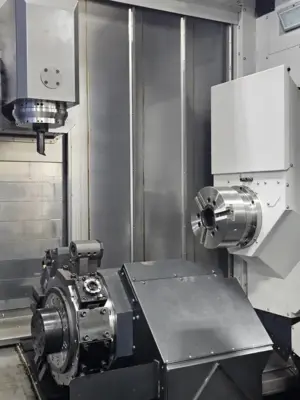

12 Station Live Tool Lower Turret
80 Station ATC

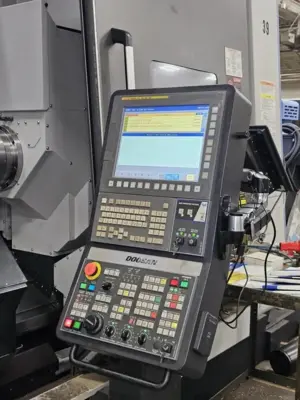

Fanuc Series 31i-Model B5 CNC Control w/ 15" Display
Doosan Easy Operation Package

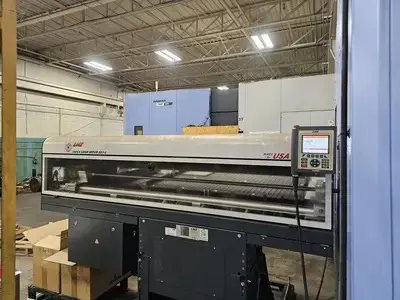

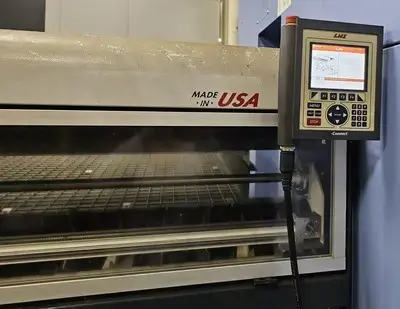

LNS Servo S3 T-L Quick Load Bar feeder
Milling Spindle 12,000 RPM w/ Capto C6
Tool Library Control Screen
Collet Chuck on Main

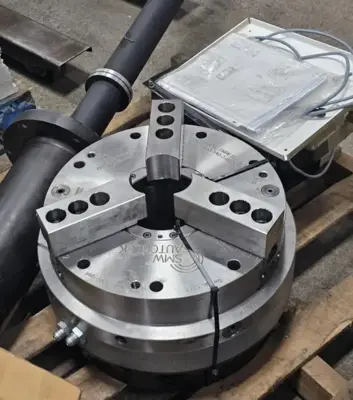

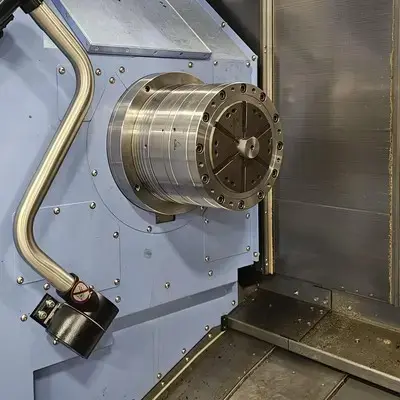

Samchully HCH-18 3-jaw 18" Air Chuck with 5.5" Bore
Samchully MH-212 12" 3-Jaw Chuck on Sub Spindle
Full C-Axis on Both Spindles
Tool Pre-setter

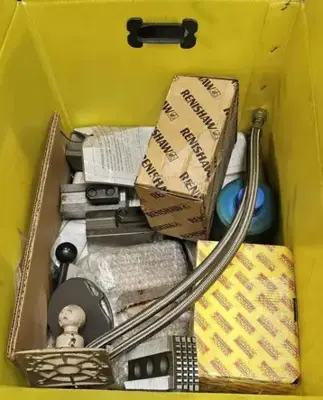

Renishaw Tool & Parts Probing System with RMI-Q Radio Receiver
RPM600 Parts Probe
Renishaw TRS2 Laser Tool Breakage Detection
Servo Auto Door
36,000 BTU Coolant Chiller
LNS MF2 Filtering Chip Conveyor with Variable Speed Drive
Coolant System and Tank
High Pressure Coolant 1000 PSI
All Available Machine Manuals

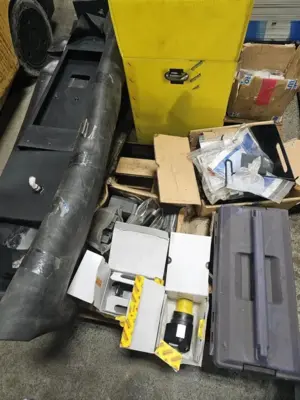

(3) Capto C6 Tool Holders & (5) Live Tools, and Static Tool Holders,

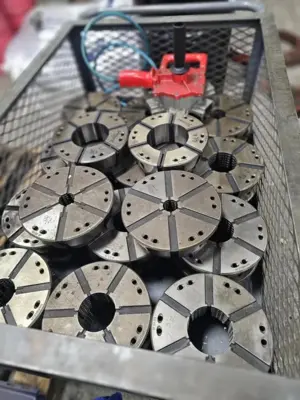

Serrated Collets
Low Hours
