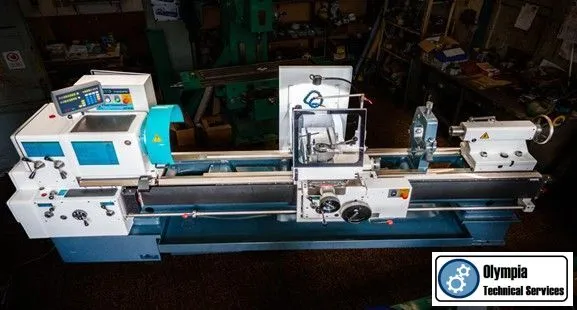

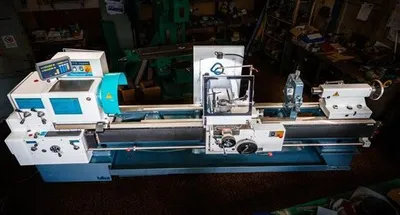

REMANUFACTURED TOS TRENCIN SN 63/2000 Engine Lathe 24” x 78.7”
Have one to sell?
ConditionUsed
1 available
Imperial
MAXIMUM SWING OVER BEDWAYS 24"
MAXIMUM SWING OVER CARRIAGE 13.3"
SWING IN GAP 34.6"
DISTANCE BETWEEN CENTERS 78.7"
SPINDLE SPEEDS: (16) 10-1000 RPM
SPINDLE BORE 3.0"

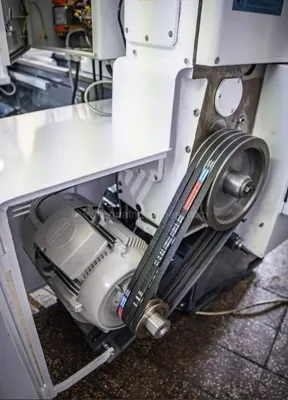

MAIN MOTOR 15 HP
ELECTRICS 230/460 V / 3Ph / 60 Hz
TAILSTOCK TAPER MORSE #5
MODEL SN 63/3000
SERIAL # n/a
YEAR 2024 Reman
WEIGHT 7000 LBS.(approx.)
DIMENSIONS 157" x 55"

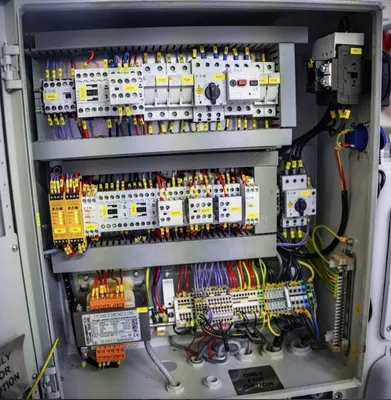

Machine with modern Motor and Electrics
USA/CAN electrical components (UL/CSA approved)
Documentation in English
Warranty 12-months (parts)
CE Electrical Specifications
YOM: Remanufactured 2024
Machine ACCESSORIES (Included):
1 pc Steady rest (fixed)
1 pc Follow rest (movable)
Threaded watch
Chuck cover
Guide screw and Tie Rod cover
Flange 315 B8
Flange 400 B8

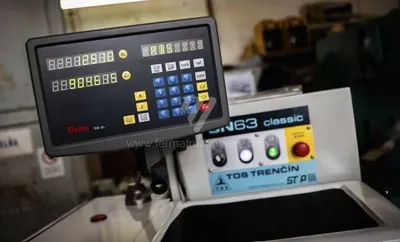

Digital Readout LIMAT 2-axes (DRO)
Multi-head type C + 2 pcs knife holders
OPTIONS NOT INCLUDED
- 4-jaw chuck BISON 20'' - $5,460
- 3-jaw chuck BISON 16'' - $5735
- ALGRA 700 Series Multifix Quick Change Turret - $4,900
- Isolated transformer 600V/440V/220V - $4,500
