TECHNICAL SPECIFICATIONS

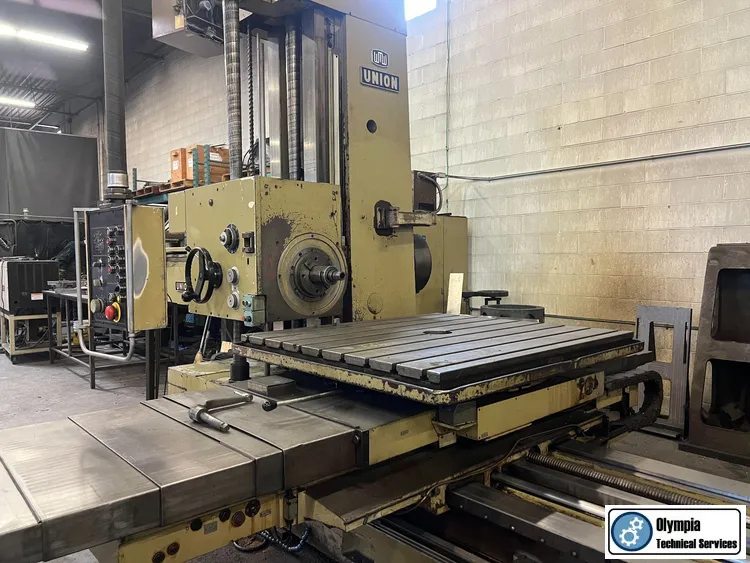

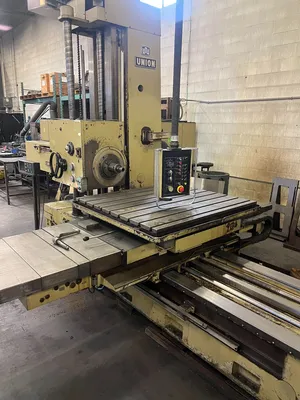

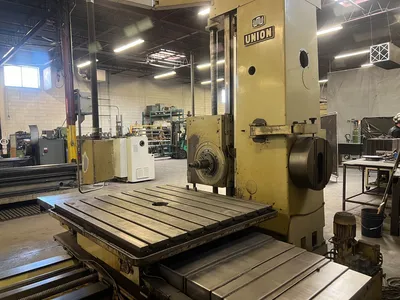

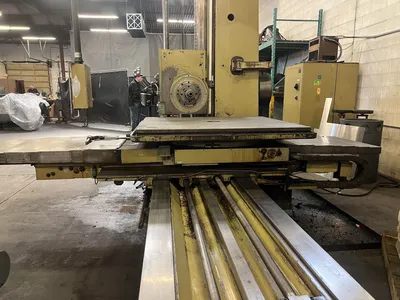

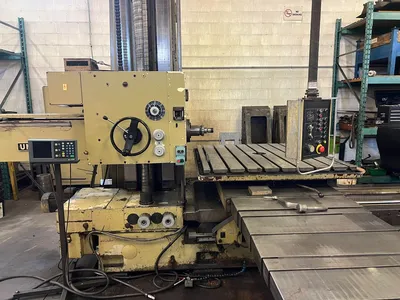

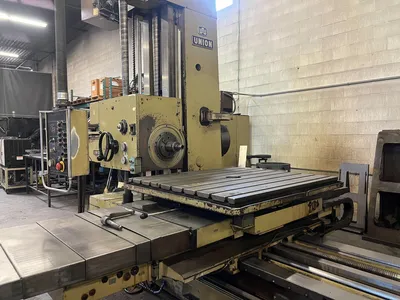

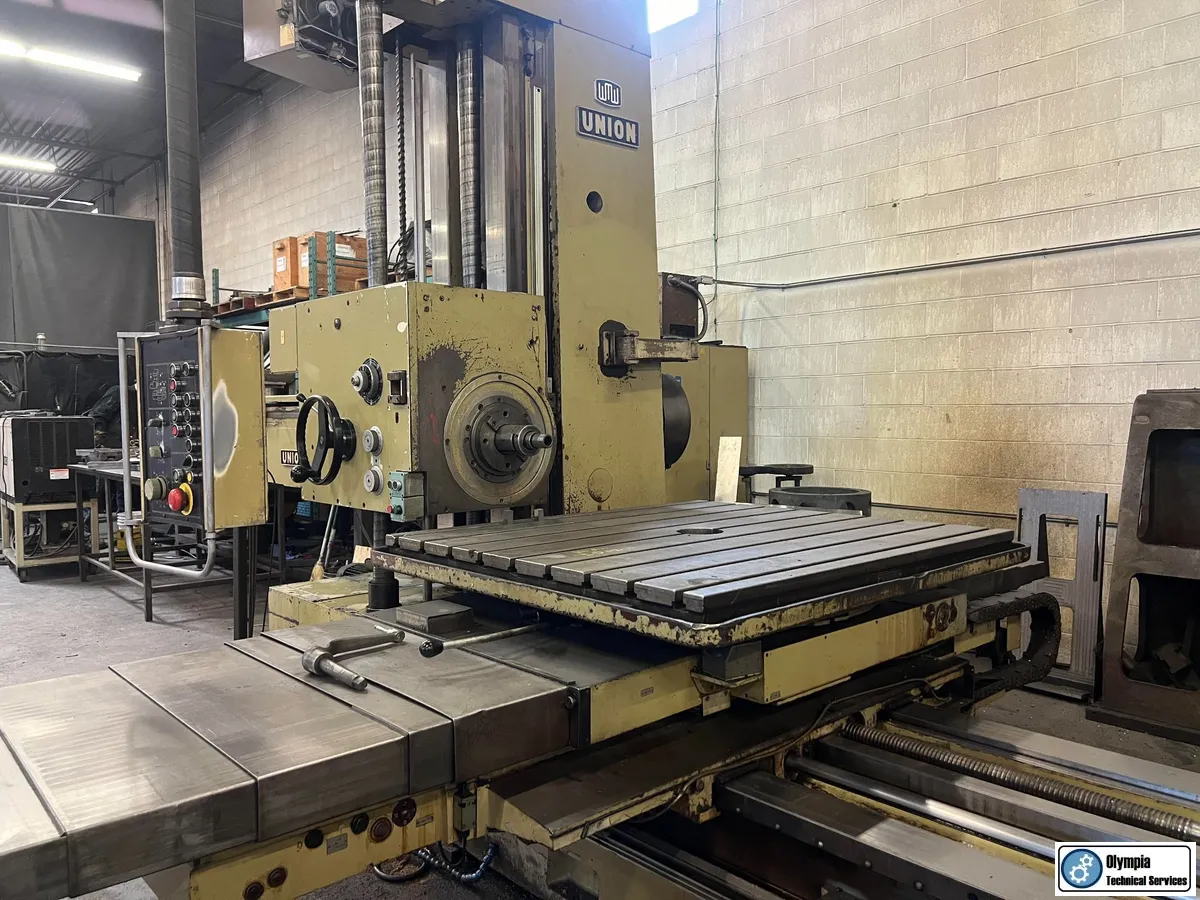

Machine type............ Manual Table Type Boring Machine
Make.................... UNION
Type.................... BFT 90/3-1

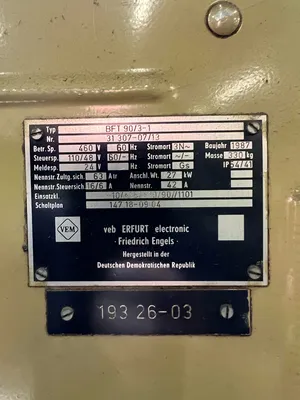

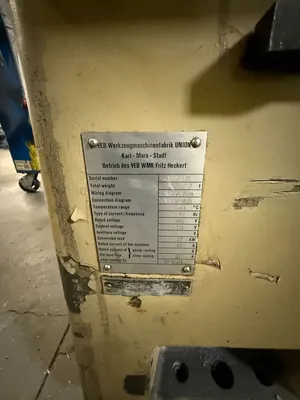

Year / Sn#.............. 1987 / Sn# 19328 03
Control/DRO............. ACU-RITE 3-Axis DRO
Technical details
X-travel................ 1600 mm 63”
Y-travel................ 1250 mm 49.2”
W-travel (spindle)...... 710 mm 28”
Z-travel................ 1600 mm 63”
Spindle Dia............. 90 mm 3.54”
Spindle taper........... ISO 50
Facing Head ............ 450 mm 18"
Slide Traverse (U-axis). 160 mm 6.3"
Speed (2 ranges) ....... 8 - 250 RPM
Table-size.............. 1100 x 1000 mm 44” x 39.4”
Table rotation ......... 360 deg.
Table load capacity..... 2500 kg 5500 lbs.
Spindle speed:.......... 8 to 1600 RPM
Spindle Motor........... 11 kW. 15 HP
Weight of the machine... 10000 kg. 22,000 lbs.
Power Draw Bar
All available 50 taper Tooling
Facing Head

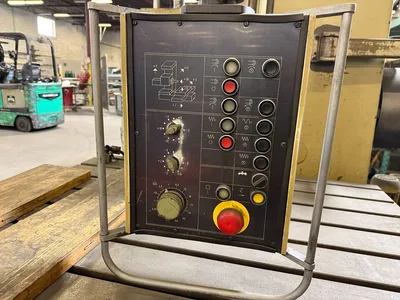

Pendant Control
Hard Ways

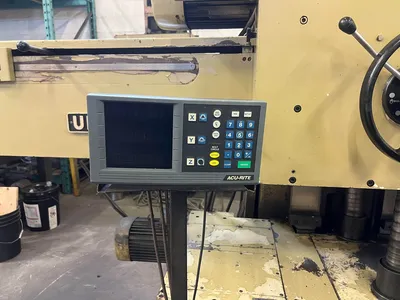

ACU-RITE 3-AXIS Digital Readout

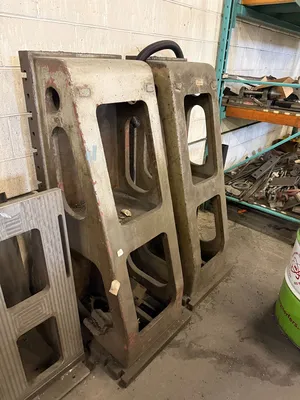

Set of Two (2) Cast Iron Angle Plates, 57" H, x 25.6" W, x 19.7" FB
Inspect Under Power in Plant
