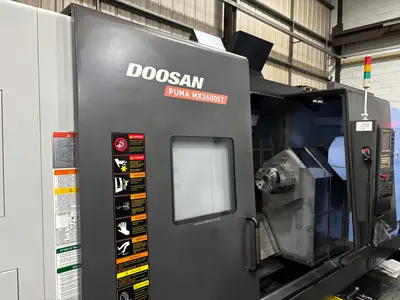

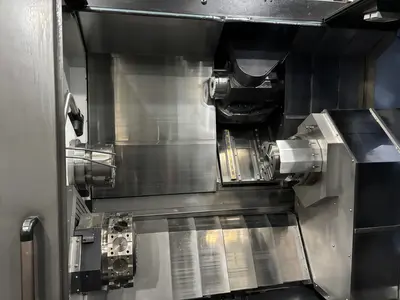

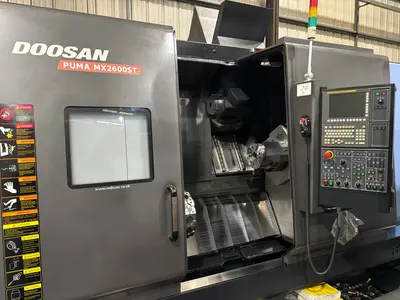

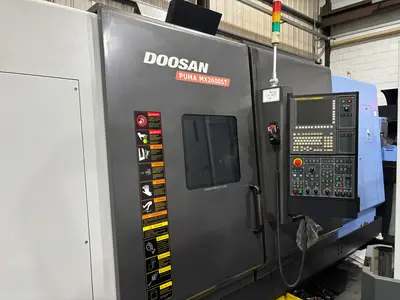

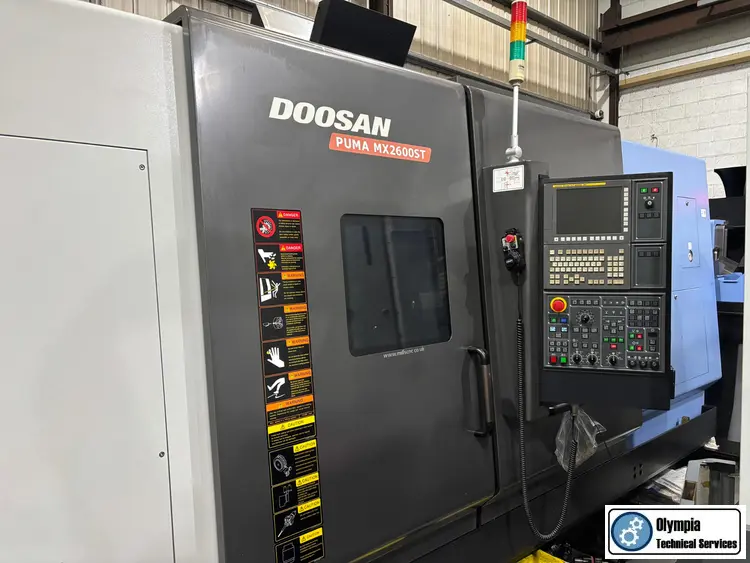

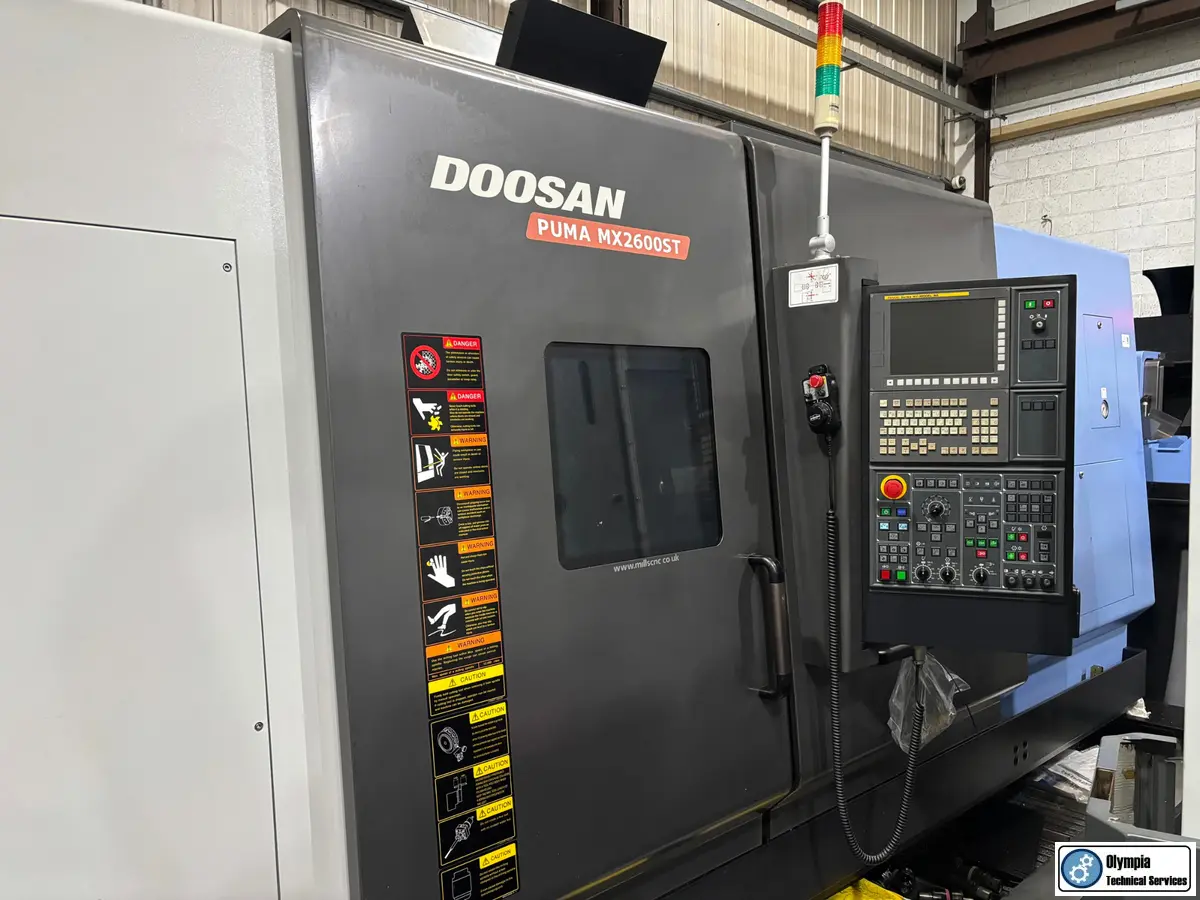

USED DOOSAN PUMA MX2600 ST CNC MULTI TASK LATHE (2014)

TECHNICAL SPECIFICATIONS:
Swing over bed 39.37"
Swing over saddle 29.92"
Recom. Turning diameter 10.0"
Max. Turning diameter 21.3"
Max. Turning length 60.63"
Chuck size inch 10.0"
Bar working diameter 3.0"

TRAVELS DISTANCE
X1-axis 24.8"
Z1-axis 62.4"
Y-axis 4.53"
X2-axis 8.66"
Z2-axis 59.65"
A-axis 61.02"
B-Axis Rotation +/- 120 Deg.

FEEDRATES RAPID TRAVERSE RATE
X1-axis m/min 36 (1417.3 IPM)
Z1-axis m/min 36 (1417.3 IPM)
Y-axis m/min 26 (1023.6 IPM)
X2-axis m/min 24 (944.9 IPM)
Z2-axis m/min 36 (1417.3 IPM)
A-axis m/min 30 (1181.1 IPM)

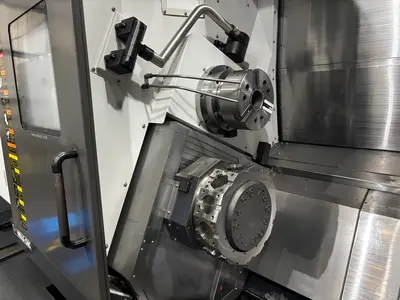

LEFT SPINDLE
Max. Spindle speed 4000 RPM
Spindle nose A2-8
Spindle through hole 3.6"
Spindle Indexing angle(C-axis) 0.001 deg
Spindle Motor 30 HP

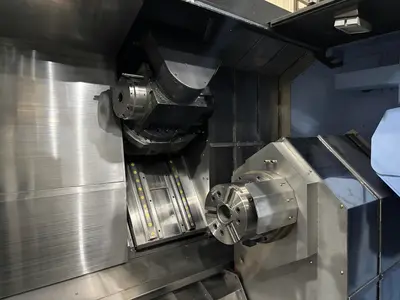

RIGHT SPINDLE
Max. Spindle speed 4000 RPM
Spindle nose A2-8
Spindle through hole 3.6"
Spindle Indexing angle(C-axis) 0.001 deg
Spindle Motor 30 HP

MILLING SPINDE
Milling spindle speed 12,000 RPM
Spindle Indexing angle(B-axis) 0.001 deg
Tool storage capacity 40

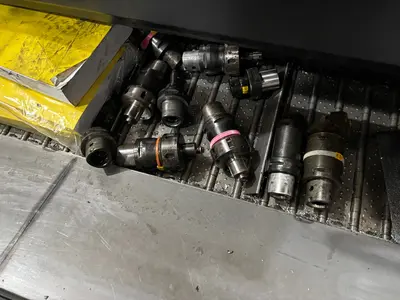

Tool type CAPTO C6
Spindle Motor 25 HP

LOWER TURRET

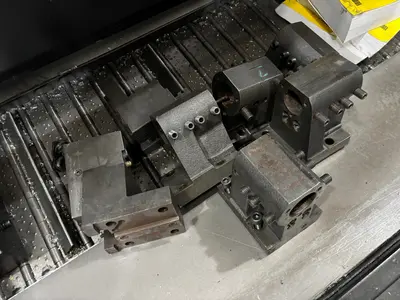

No. of tool stations 12
Max. Rotary tool speed 5000 RPM
Rotary Tool Spindle Motor 7.5 HP

DIMENSIONS
Machine Weight 34100 lbs.
Floor space 262" x 105.6" x118.6"
