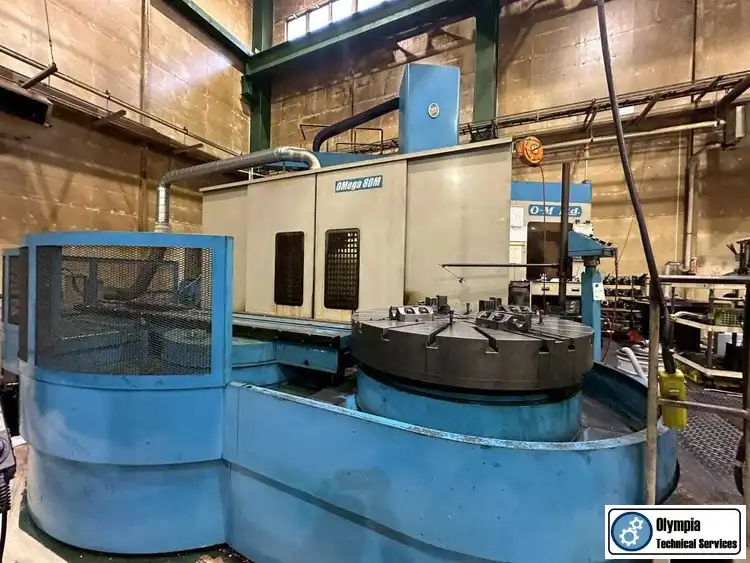

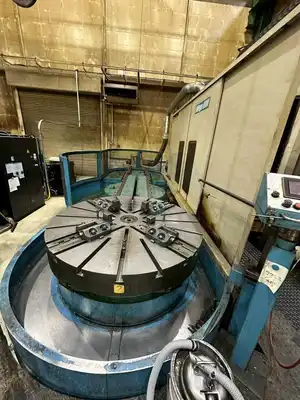

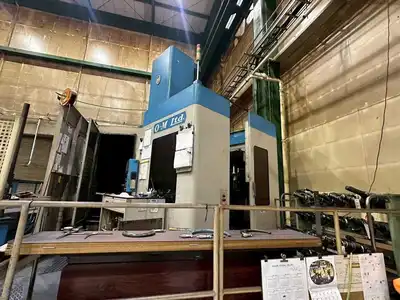

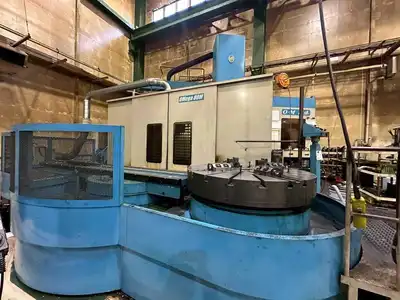

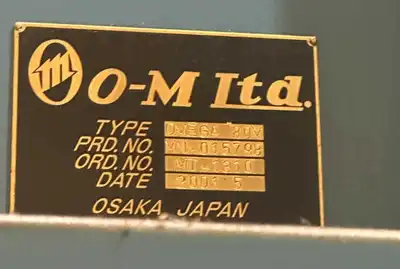

USED O-M OMEGA 80 M CNC VERTICAL BORING MILL WITH LIVE MILLING & APC (year 2001)

Machining diameter 78.7"

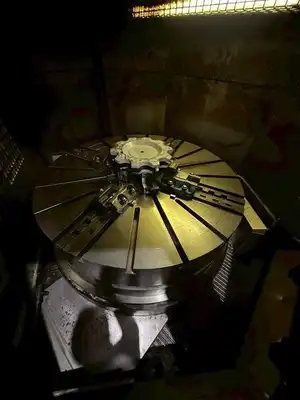

Table diameter 63"
Maximum machining height (w/ tool) 63"
Maximum distance under rail 66.7"
Maximum workpiece weight 22,000 LBS
Maximum ram travel (Z-Axis) 39.4"
Horizontal travel (X Axis) -4.0” / 61.75”
Ram size 8.3" x 8.3"
Cross rail travel (3 steps) 24”

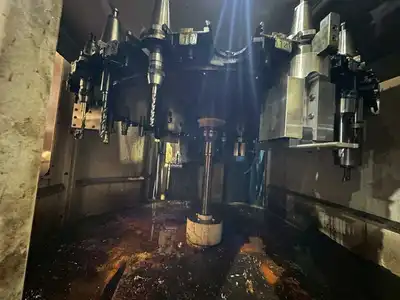

Number of tools in ATC 16
Main drive motor capacity 50 HP
Table cutting speed range (3 ranges) 1-320 RPM
Maximum Table Torque 14,750 Ft-lb.
Milling spindle motor 20 HP
Milling spindle speed 3000 RPM
Rapid feed rate (X & Z) 472 / 393 IPM
Maximum cutting feed rate 236 IPM
Machine Dimensions (W x D) 232” x 208”
Machine Height(w/cross rail in top pos) 215”
Machine weight 42,000 lbs.
