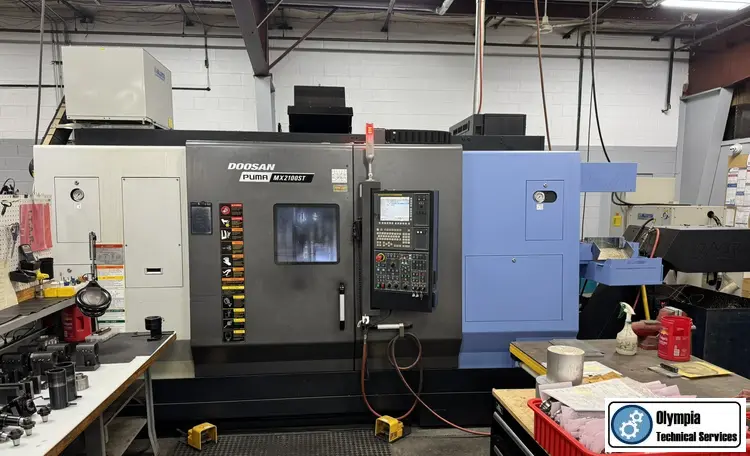

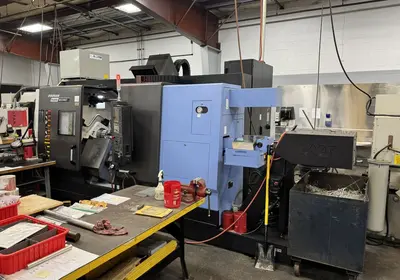

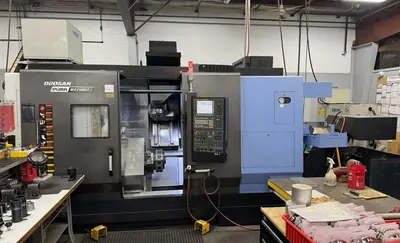

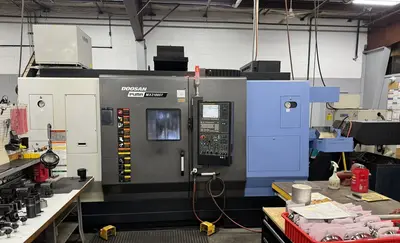

USED DOOSAN PUMA MX2100 ST CNC MULTI TASK LATHE (2015)

TECHNICAL SPECIFICATIONS:

CAPACITY
Swing over bed 29.5"
Swing over saddle 25.6"
Recom. Turning diameter 8.3"
Max. Turning diameter 21.3"
Max. Turning length 40.2"
Chuck size inch 8"
Bar working diameter 2.6"

TRAVELS DISTANCE
X1-axis 22.2"
Z1-axis 41.3"
Y-axis 6.7"
X2-axis 7.4"
Z2-axis 41.3"
A-axis 41.3"
B-Axis Rotation +/- 120 Deg.

FEEDRATES RAPID TRAVERSE RATE
X1-axis m/min 36 (1417.3 IPM)
Z1-axis m/min 36 (1417.3 IPM)
Y-axis m/min 26 (1023.6 IPM)
X2-axis m/min 24 (944.9 IPM)
Z2-axis m/min 36 (1417.3 IPM)
A-axis m/min 30 (1181.1 IPM)

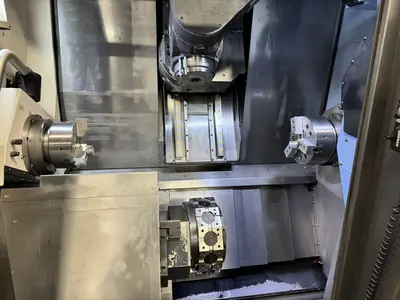

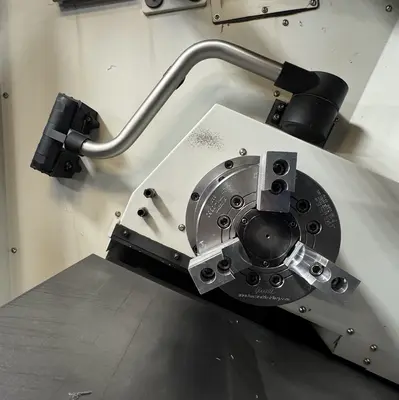

LEFT SPINDLE
Max. Spindle speed 5000 RPM
Spindle nose A2-6
Spindle through hole 3.0"
Spindle Indexing angle(C-axis) deg 0.0001
Spindle Motor 30 HP

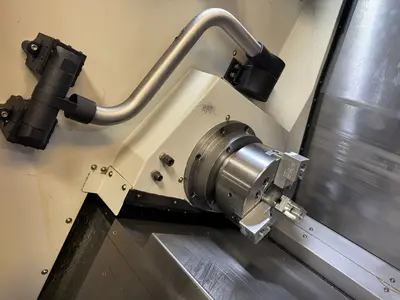

RIGHT SPINDLE
Max. Spindle speed 5000 RPM
Spindle nose A2-6
Spindle through hole 3.0"
Spindle Indexing angle(C-axis) deg - 0.001
Spindle Motor 30 HP

MILLING SPINDE
Milling spindle speed 12,000 RPM
Min. spindle Indexing angle(B-axis) deg. 0.001
Tool storage capacity 40
Tool changer arm SWING ARM
Spindle Motor 25 HP

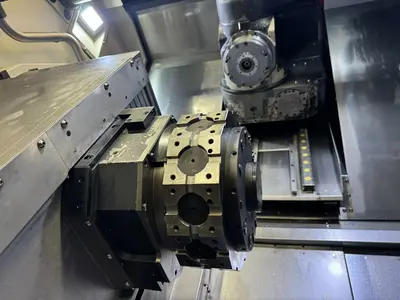

LOWER TURRET
No. of tool stations 12
Max. Rotary tool speed 5000 RPM
Rotary Tool Spindle Motor Power 7.4 HP
