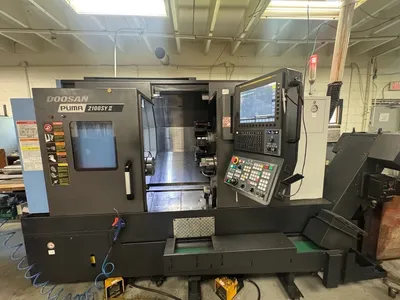

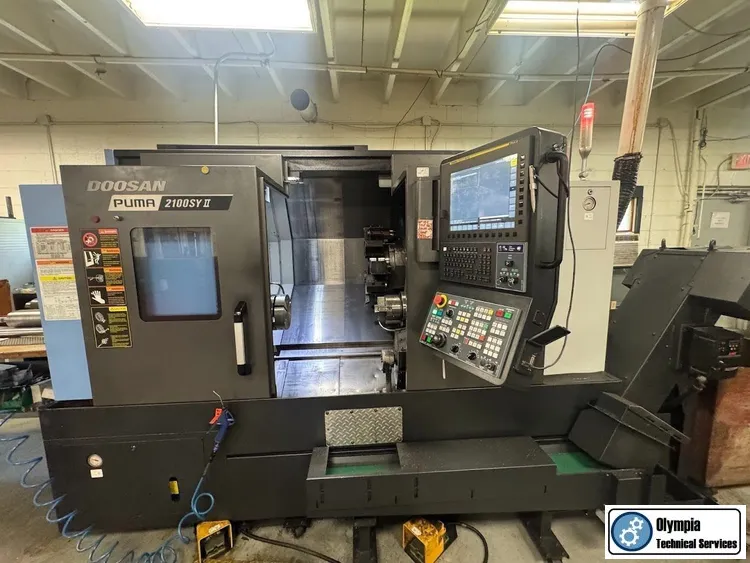

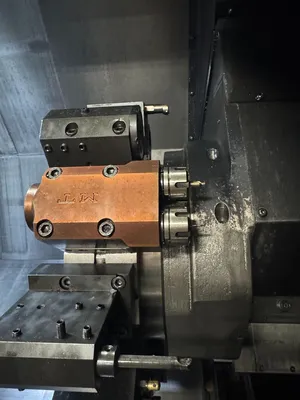

USED DOOSAN PUMA 2100 SY-II MULTI AXIS CNC TURNING CENTER (2021)

SWING OVER BED ................. 30.7"
SWING OVER CARRIAGE ............ 24.8"
MAX. TURNING DIAMETER .......... 15.98"
MAX. TURNING LENGTH ............ 20.47"
DISTANCE BETWEEN SPINDLES ...... 33.46"
CHUCK SIZE (210 mm)............. 8.26"
SPINDLE BORE ................... 2.99"
HOLE THRU SPINDLE .............. 2.68"
X-AXIS TRAVEL .................. 10.2"
Z-AXIS TRAVEL .................. 23.2"
Y-AXIS TRAVEL .................. +/-4.13"
C-AXIS INDEXING.... ............ 0.001 deg
C2-AXIS INDEXING ............... 0.001 deg.
RAPID TRAVERSE RATE X/Z ........ 1181 IPM
RAPID TRAVERSE RATE Y .......... 394 IPM
MAX. SPINDLE SPEED, MAIN ....... 20 to 5000 RPM
MAIN SPINDLE MOTOR ............. 30 HP
SPINDLE NOSE ................... A2-8
SUB SPINDLE MOTOR .............. 20 HP
SUB SPINDLE SPEED............... 20-6000 RPM
SUB SPINDLE CHUCK .............. 6”
SUB SPINDLE NOSE ............... A2-5
MILLING SPINDLE UPPER TURRET.... 7.5 HP
MILLING SPINDLE SPEED........... 20-5000 RPM

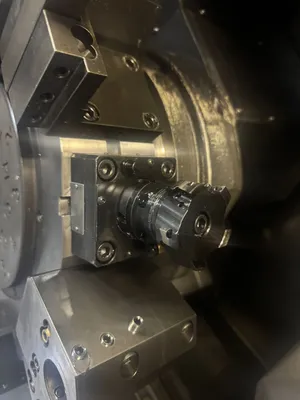

NO. OF TOOL STATIONS UPPER...... 12/24
APPROX. MACHINE WEIGHT ......... 13,500 LBS
DIMENSIONS (LWH)................ 135” x 75” x 85”

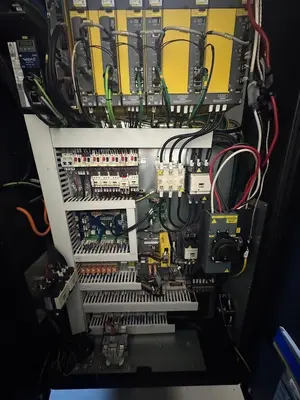

ELECTRICS ...................... 220V / 3PH / 60 Hz
