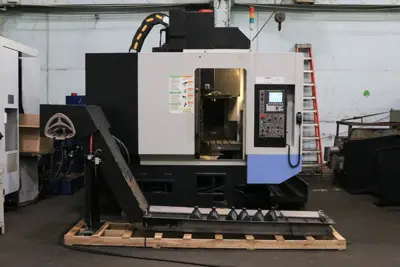

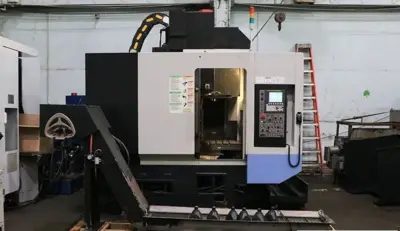

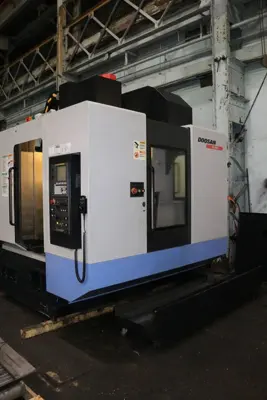

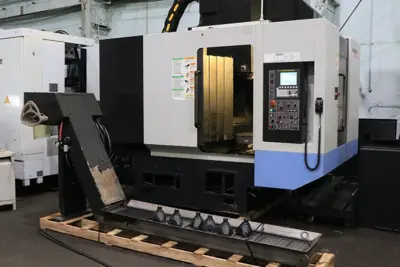

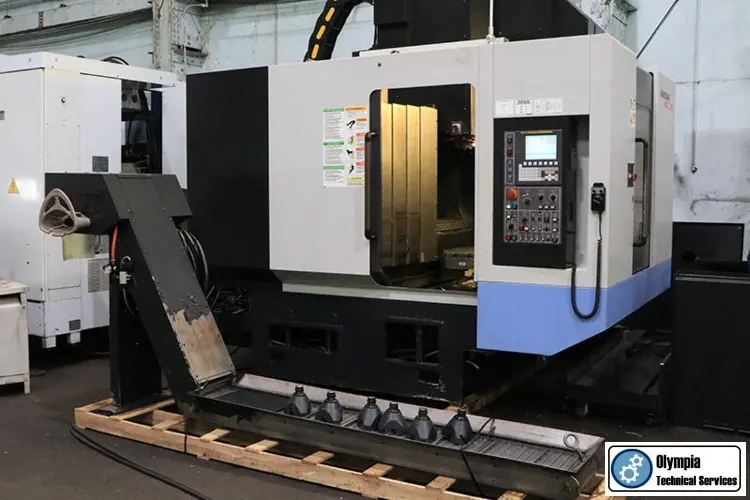

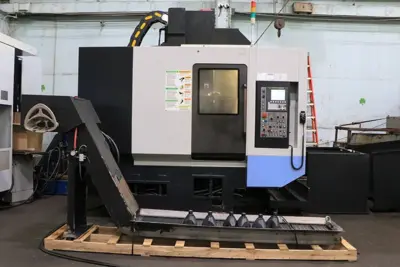

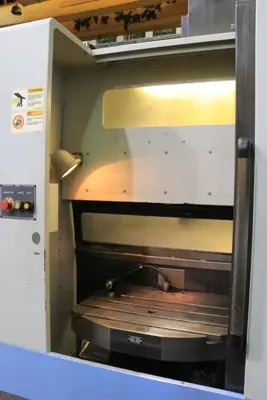

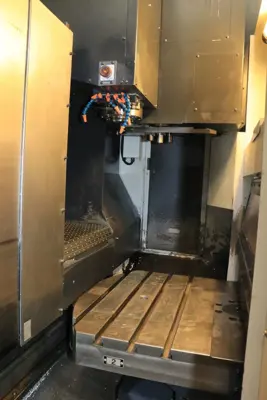

DOOSAN VC-430 VERTICAL MACHINING CENTER (2012)

SPECIFICATIONS:
X-AXIS TRAVEL ......................... 22"
Y-AXIS TRAVEL ......................... 16.9"
Z-AXIS TRAVEL ......................... 22.4"

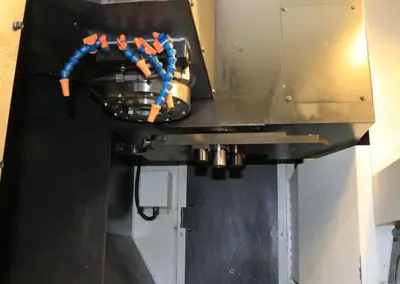

MAXIMUM SPINDLE SPEED ................. 12,000 RPM
SPINDLE TAPER ......................... CAT 40
SPINDLE MOTOR ......................... 25 HP
AUTOMATIC TOOL CHANGER ................ 30 TOOLS

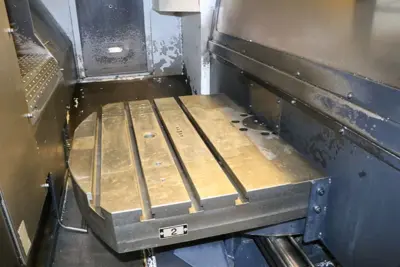

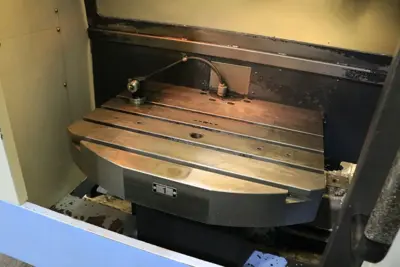

PALLET SIZE ........................... 28" X 19.3"
DISTANCE SPINDLE NOSE TO TABLE ........ 5.9" MIN - 28.3" MAX
NUMBER OF PALLETS ..................... 2
PALLET CHANGE TIME .................... 5 SECONDS
PALLET LOADING CAPACITY ............... 661 LBS/EACH
DIMENSIONS (LWH)....................... 87" X 114" X 108"

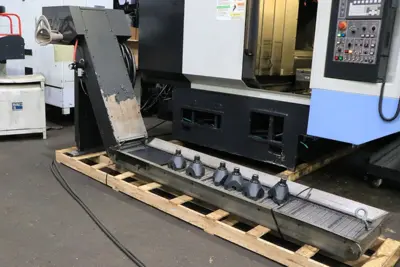

(PLUS 37" FOR CHIP CONV) (122.4" HEIGHT MAX)
APPROXIMATE WEIGHT .................... 17,200 LBS
