X-Axis 121"
Y-Axis 61"
Z-Axis 11"
Spindle Nose to Table (Max) 13.5"
Spindle Nose to Table (Min.) 2.5"
Table Size 122" x 53"
Between Columns 62"
Max. weight on table 6000 LBS
Spindle motor 15 HP
Max. Speed 8100 RPM
Max. Torque 17 ft-lb @4600 RPM
Taper CAT 40
Rapids on X 800 in/min
Rapids on Y 2100 in/min
Rapids on Z 1100 in/min
Max. Cutting 800 in/min
Tool Changer 10
Max. Tool Diameter (full) 3.5"
Max. Tool weight 12 LBS
Air required 4 SCFM, 100 PSI
Coolant Capacity 95 GALLONS
Power Requirements 220 V / 3 Ph / 60 Hz / 40 Amps
Dimensions 206" x 111" x 108"
Weight 19600 LBS

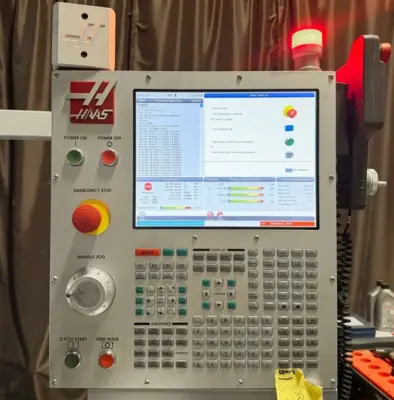

- Haas CNC Controls

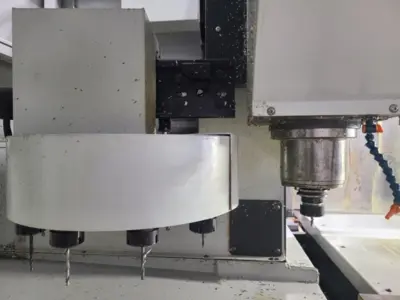

- 10 Position Automatic Tool Changer

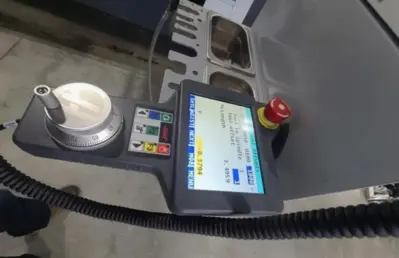

- Remote jog handle
- Aluminum table
- Coordinate rotation
- Macro programming
- Visual quick code
