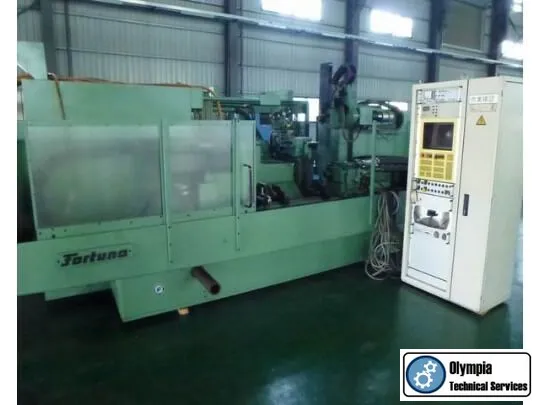

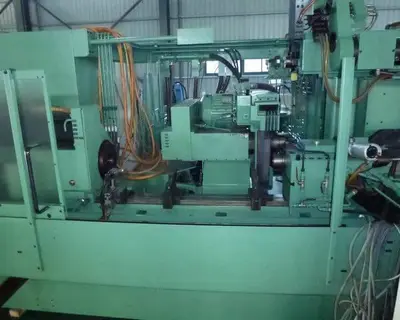

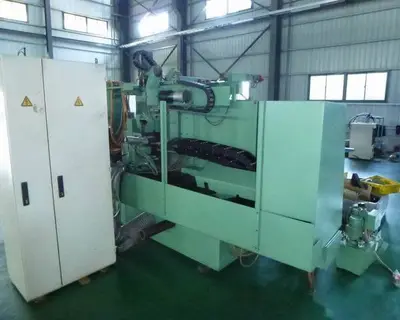

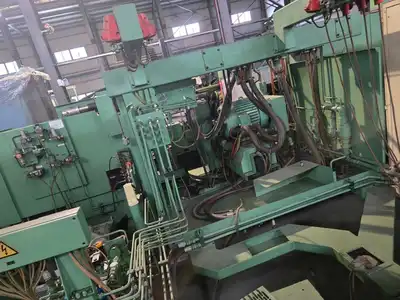

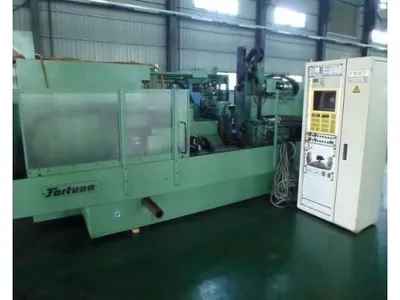

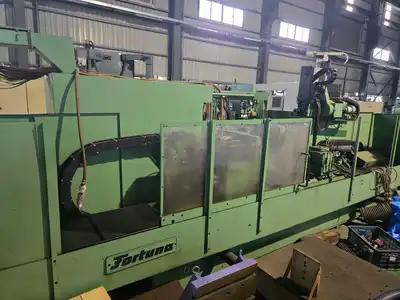

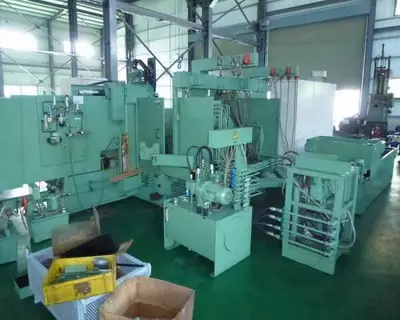

FORTUNA MODEL FM55 CNC UNIVERSAL CYLINDRICAL GRINDER

TECHNICAL SPECIFICATIONS
SWING OVER BED: 18.9"
DISTANCE BETWEEN CENTERS: 63.0"
MAX TRAVERSE LONGITUDINAL 66.0"
TABLE SPEEDS: 2 - 200 IPM
TABLE SWIVEL: 0 - 14 DEG.
WORKHEAD SPEEDS: 6 - 50 RPM
WORKHEAD MOTOR: 10 HP
AUTOMATIC INFEED: 0.0002" - 0.004"
GRINDING WHEEL SPEEDS: (2) 430, 1150 RPM
GRINDING WHEEL MOTOR: 25 HP
GRINDING WHEEL SIZE: 29.5" X 4.0"
GRINDING SPINDLE TRAVERSE TRAVEL: 16.0"
WHEEL SLIDE ANGLE: 26 DEG
MAXIMUM WORKPIECE WEIGHT: 2,400 LBS.
