| Horsepower | 30 hp | 22.4 kW |
| Machining Length | 570 mm | 22.441" |
| Turning Dia | 400 mm | 15.748" |
OEM TECHNICAL SPECIFICATIONS
Swing: 26.37”
Turning Diameter: 15.75”
Center Diameter: 22.05”
Chuck Size: 10”
Hole Thru Spindle: 3.54”
Bar Capacity: 2.95”
X - Axis Travel: 7.87”
Z - Axis Travel: 22.4”
Turning Length: 21.02”
Feed Traverse (X/Y): 189 IPM
Rapid Traverse (X,Y): 788 / 945 IPM
Spindle Speed: 40 - 4,000 RPM
Spindle Nose: A2-8
Main Motor: 15 / 20 HP

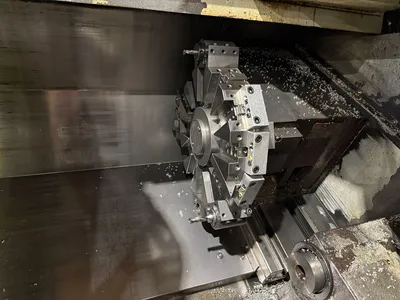

Turret Capacity: 12
Tailstock: MT #3; 3.34” OD; 4.72” Travel
Power Requirements: 200 / 220 VAC; 3 Ph; 60 Hz; 30 kVa
Machine Weight: 12,320 Lbs.
Machine Dimensions: 138” x 74” x 88”
Year 2016

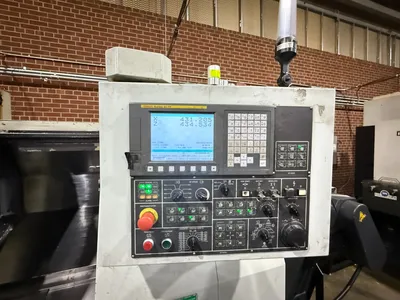

FANUC 0i-TF CNC CONTROL

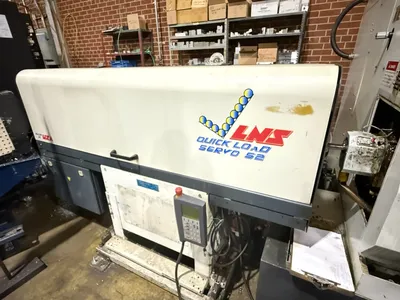

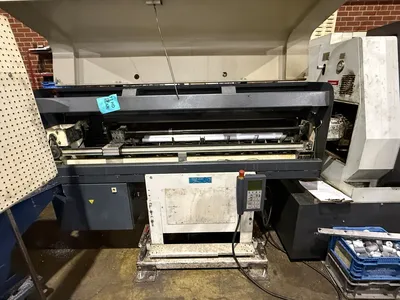

LNS QUICK LOAD SERVO S2 BARFEED
TOOL PRESETTER

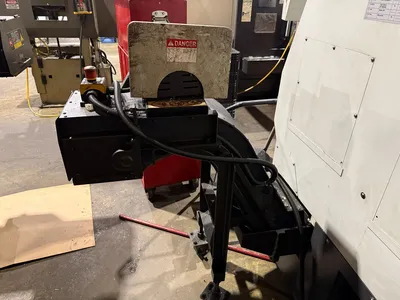

CHIP CONVEYOR
COOLANT TANK AND PUMP

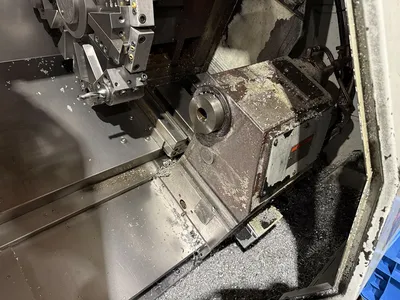

TAILSTOCK
HARDENED BOXWAYS
ALL AVAILABLE MANUALS
This equipment has been sold. Similar equipment available now is shown below.
