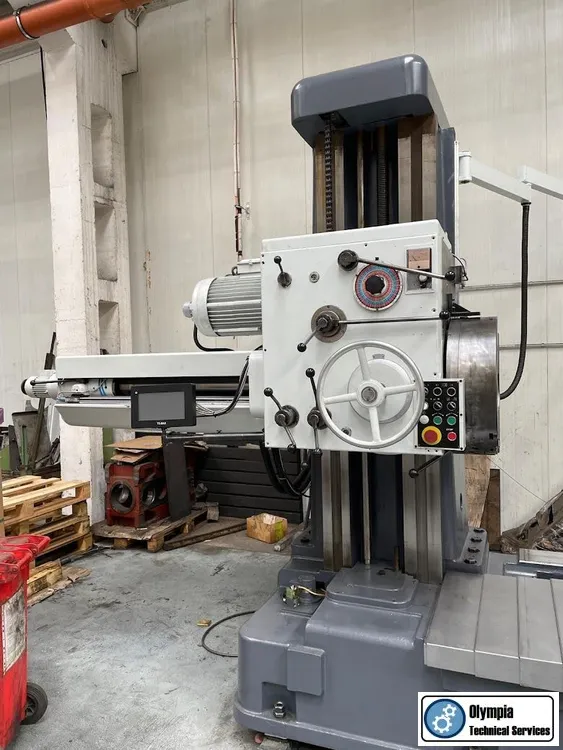

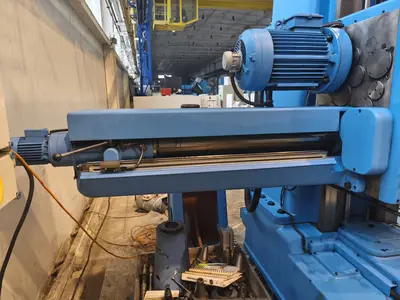

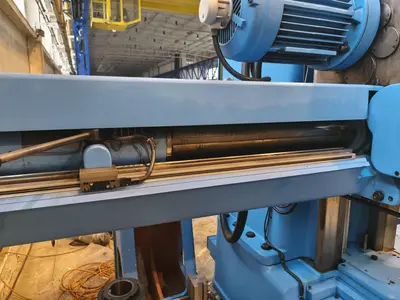

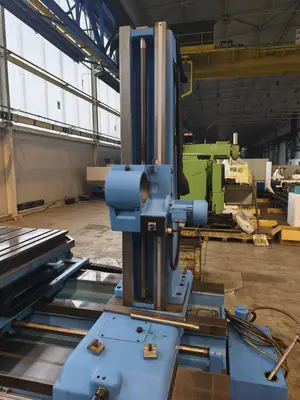

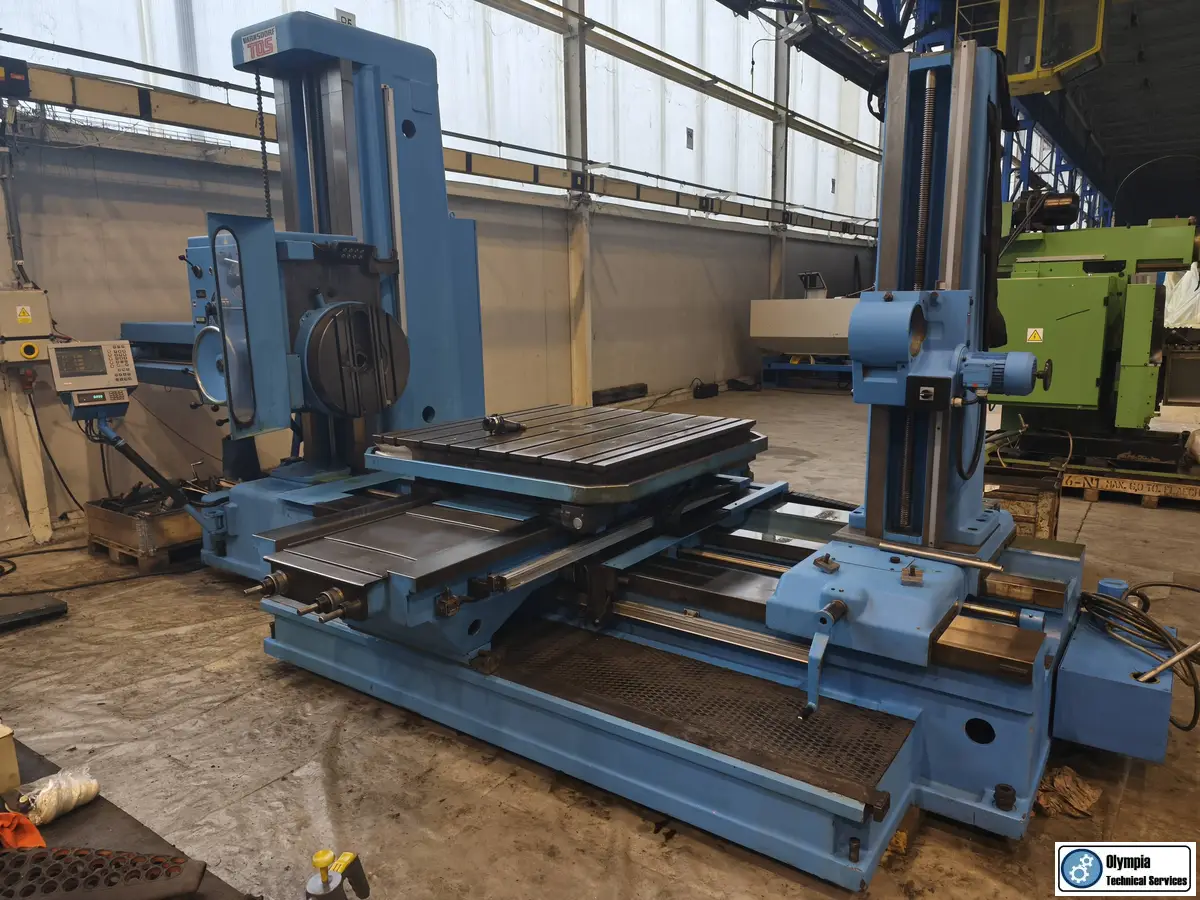

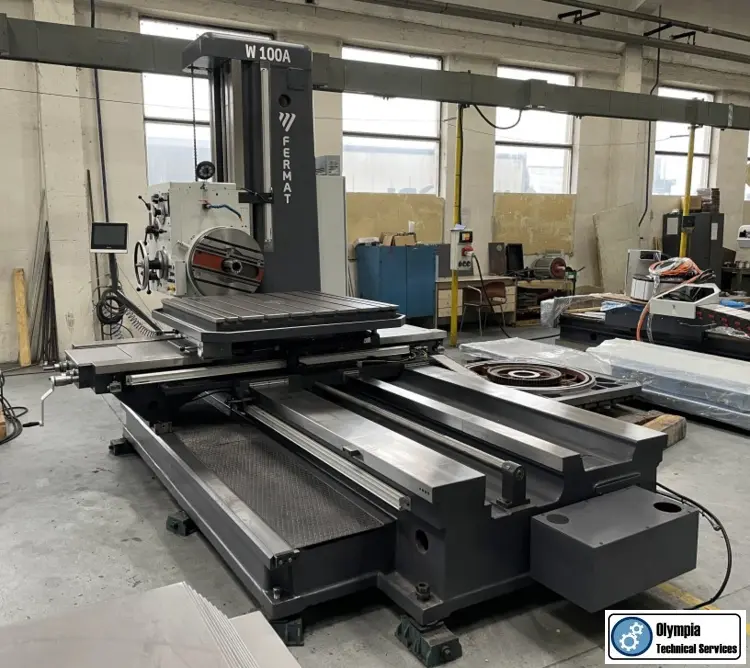

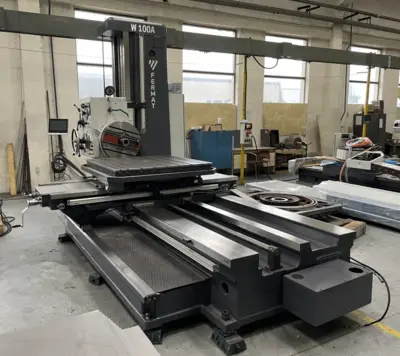

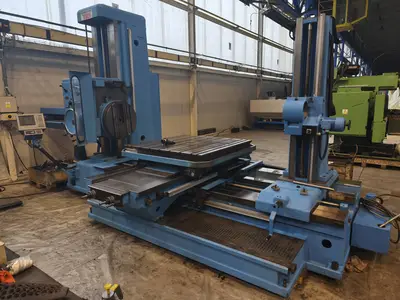

TOS VARNSDORF W100A TABLE TYPE HORIZONTAL BORING MILL (2004)

TECHNICAL SPECIFICATIONS
Machine type............ Manual Table Type Boring Machine
Make.................... TOS
Type.................... W100 A

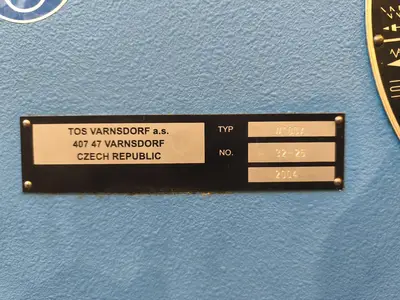

Year / Sn#.............. 2004 / Sn# 32-25

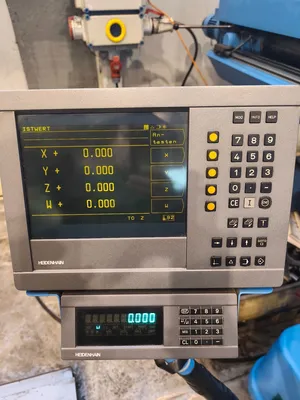

Control/DRO............. HEIDENHAIN 5-Axis DRO

Technical details
X-travel................ 1600 mm 63”
Y-travel................ 1120 mm 44.1”
W-travel (spindle)...... 900 mm 35.9”
Z-travel................ 1250 mm 49.2”
Spindle Dia............. 100 mm 3.93”
Spindle taper........... ISO 50

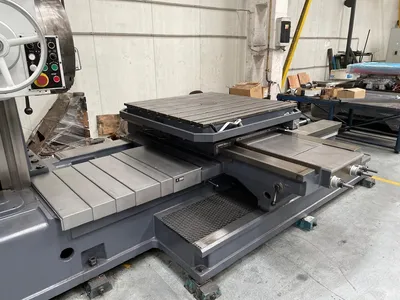

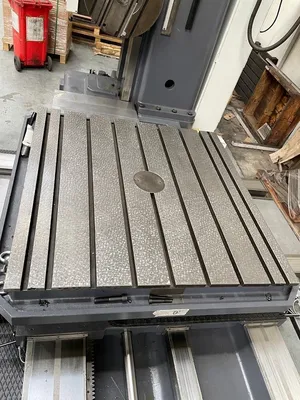

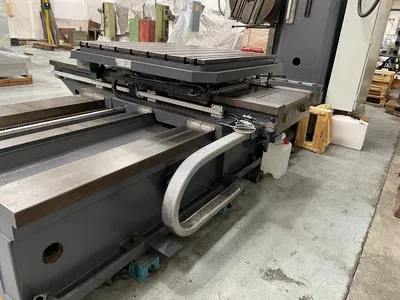

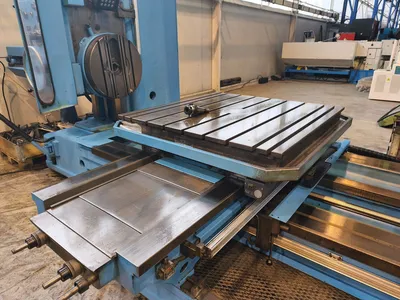

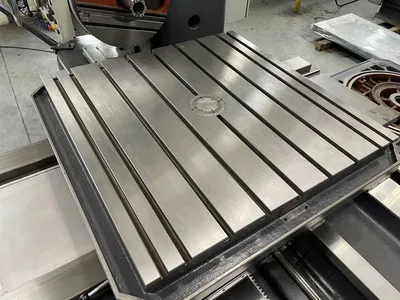

Table-size.............. 1250 x 1250 mm 49.2” x 49.2”
Table load capacity..... 3000 kg 6600 lbs.
Spindle speed:.......... 9 to 1120 rpm
Spindle Motor........... 11 kW. 15 HP
Weight of the machine.... 17500 kg. 38,500 lbs.
Dimensions (LWH)......... 5.9 x 3.6 x 3.0 m 264” x 135” x 118”
