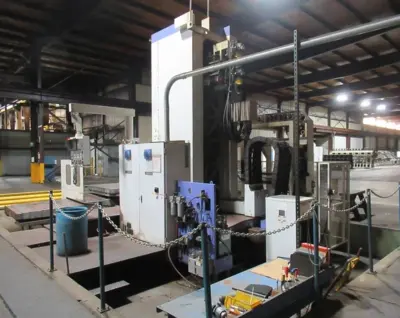

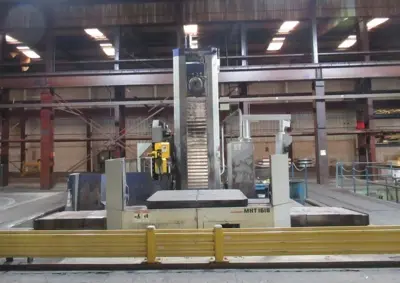

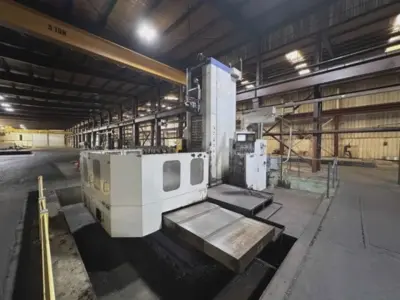

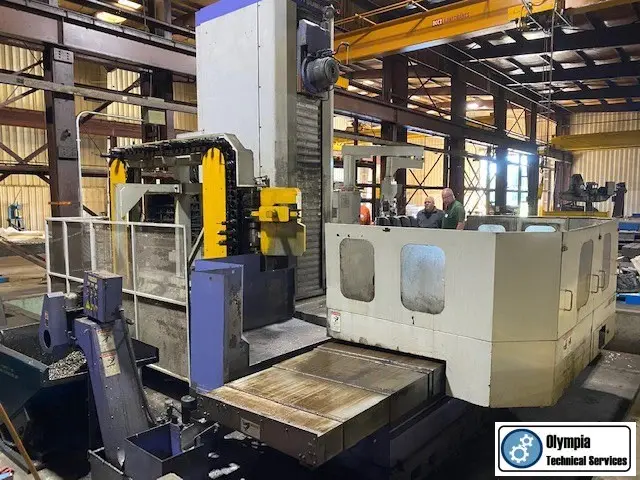

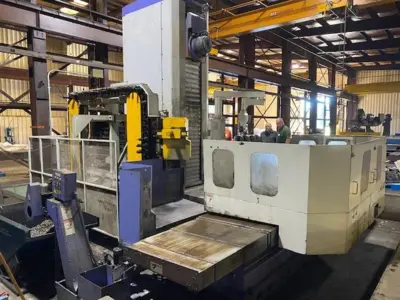

MITSUBISHI M-HT 13/1618 CNC BORING MILL (2008)

TECHNICAL SPECIFICATIONS
X AXIS LONGITUDINAL STROKE 3000 mm 118"
Y AXIS VERTICAL STROKE 2500 mm 98.4"
W AXIS (SPINDLE) 500 mm 19.7"
Z AXIS 1300 mm 51.1"

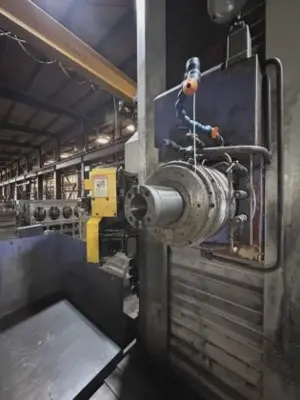

SPINDLE DIAMETER 130 mm 5.1"
SPINDLE TAPER ISO 50
SPINDLE MOTOR POWER 37 KW 50 HP
SPINDLE MAX 4000 RPM
RAPID AXIS (X Y Z ) 12000 mm/min 472 IPM
RAPID AXIS (W) 8000 mm/min 236 IPM
FEED RATE 8000 mm/min 315 IPM
ROTORY TABLE 1600 X 1800 mm 63 X 71"
TABLE LOAD 8000 kg 17,600 lbs.
TABLE INDEXING 0.001 DEG

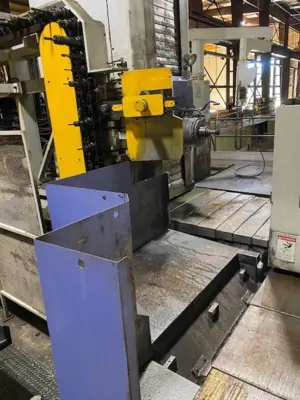

ATC 80 Positions
TOOL DIAMETER 150/240 mm 6"/9.4"
TOOL LENGTH 500 mm 19.7"
TOOL WEIGHT 30 Kg 66 lbs.
MACHINE DIMENSIONS 7 x 6.4 x 4.7 m 276" x 252" x 185"
MACHINE WEIGHT 32,730 kg 72,000 lbs.
