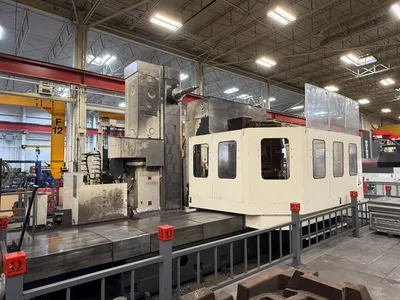

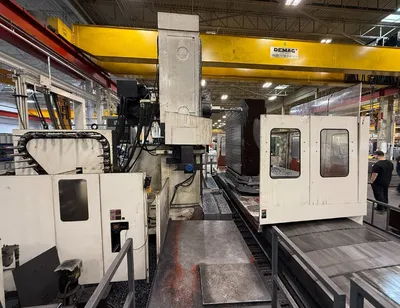

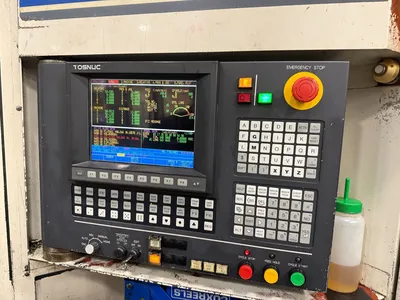

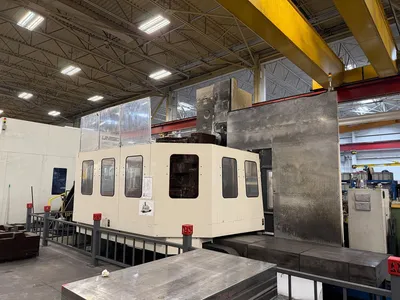

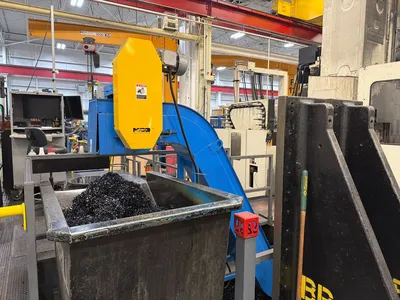

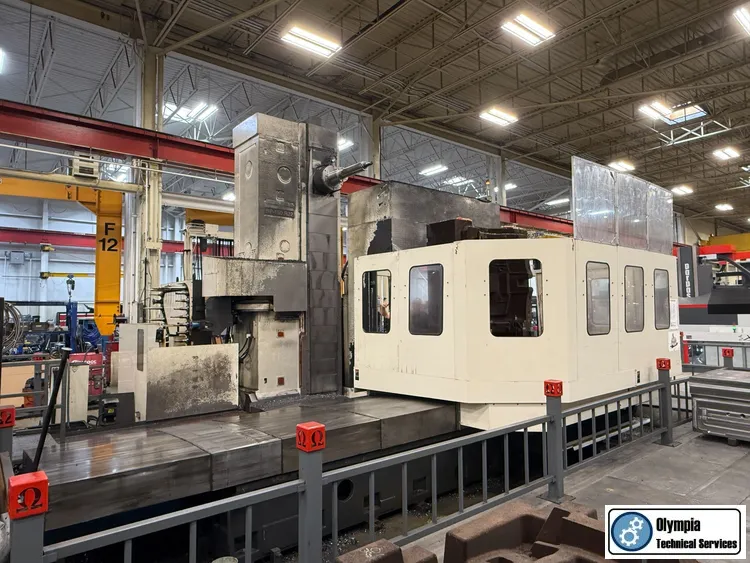

Toshiba BP-150.R22 CNC Horizontal Boring Mill, TOSNUC 999, ATC 60 position, & Chip conveyor (2014)

TECHNICAL SPECIFICATIONS:

X axis travel 4064 mm (160")
Y axis travel 3048 mm (120")
Z axis travel 1500 mm (60")
W axis travel 710 mm (28")
Rapid Travel (X,Y,Z) 20 m/min (787 IPM)
Rapid Travel (W) 6 m/min (236 IPM)
Cutting Feed Rate 1.0 - 4.0 m/min (0.04 - 157 IPM)
Table Size 2200 x 1800 mm (86.6" x 70.9")
Indexing Rotary B-Axis 360,000 pos. (0.001 deg.)
Max. table load 15,000 kg (33,000 lbs.)

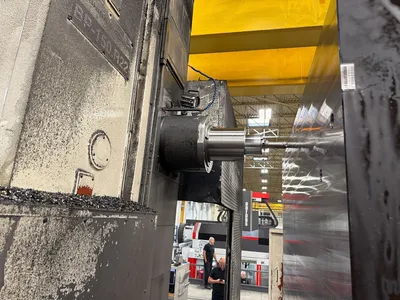

Boring spindle diameter 150 mm (5.9")
Spindle Center to Table Top 0 mm to 3048 mm (0" to 120")
Spindle system CAT 50
Spindle speed 5 - 2,500 RPM
AC Spindle Motor 40 kW (50 HP)
Tool Changer 60 Position
Machine Height 5722 mm (225.3")
Floor Space Required (L x W) 7.6 x 10.2m (300" x 402")
Machine Weight 50000 kg (110,000 lbs.)
