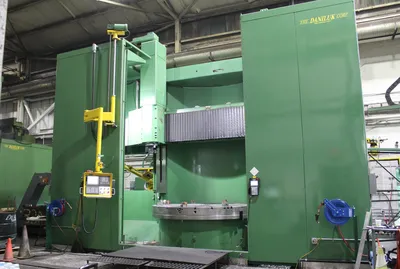

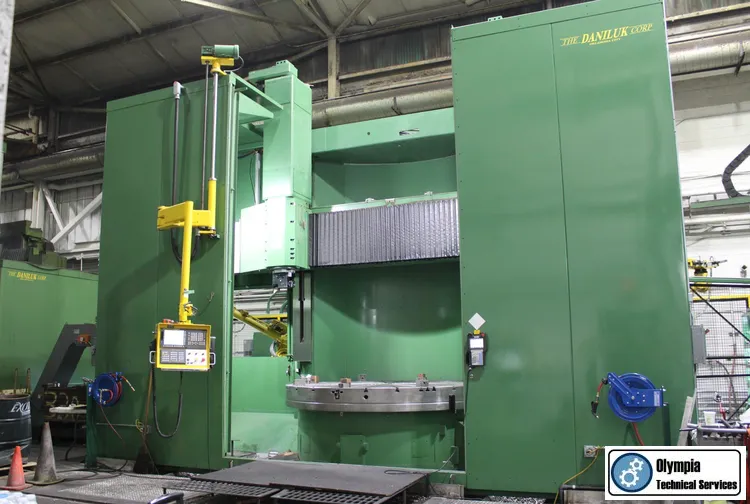

GIDDINGS & LEWIS MODEL 515 VERTICAL BORING MILL (REMANUFACTURED 2025)
Have one to sell?
ConditionNew
New
Giddings & Lewis Model 515 Vertical Boring Mill offers a 84" table and 96" machining diameter and 250,000 lbs. table capacity. Features Fanuc 0i-TF control, full enclosure, chip conveyor, and versatile tool changers. Optional Renishaw probing and mist collection. (Re-manufactured by The Danulik Corporation - year 2025)
Machining diameter 96"
Table diameter 84"
Maximum machining height (w/ standard tool installed) 96"
Maximum workpiece weight 250,000 LBS
Maximum ram travel (Z-Axis) 62"
Ram size 8" x 8"
Cross rail travel 54"
Number of tools in automatic tool changers 12
Main drive motor capacity 100 HP
Table cutting speed range (infinitely variable) 1-200 RPM
Rapid feed rate (X) 393 IPM
Rapid feed rate (Z) 393 IPM
Machine Dimensions (W x D) 300" X 185" (approx.)
Machine Height (maximum w/cross rail in top position) 260"
Machine weight 150,000 LBS
COOLANT SYSTEM
PENDENT MOUNTED CONTROL
FANUC 0i-TF CONTROL
FULL ENCLOSURE WITH POWER DOORS
CHIP CONVEYOR
COOLANT THRU TOOL
THREAD CUTTING
OPERATORS PLATFORM
MOVABLE OPERATOR PENDANT TOP MOUNTED
OPTIONAL ACCESSORIES:
1000 PSI VARIABLE PRESSURE COOLANT - $12,980.00
RENISHAW PART PROBING - $9,875.00
RENISHAW TOOL PROBING - $16,450.00
MIST COLLECTION (2 Units @ 1200 CFM) - $9,875.00
ADJUSTABLE HEIGHT PENDANT MOUNT - $8,685.00
