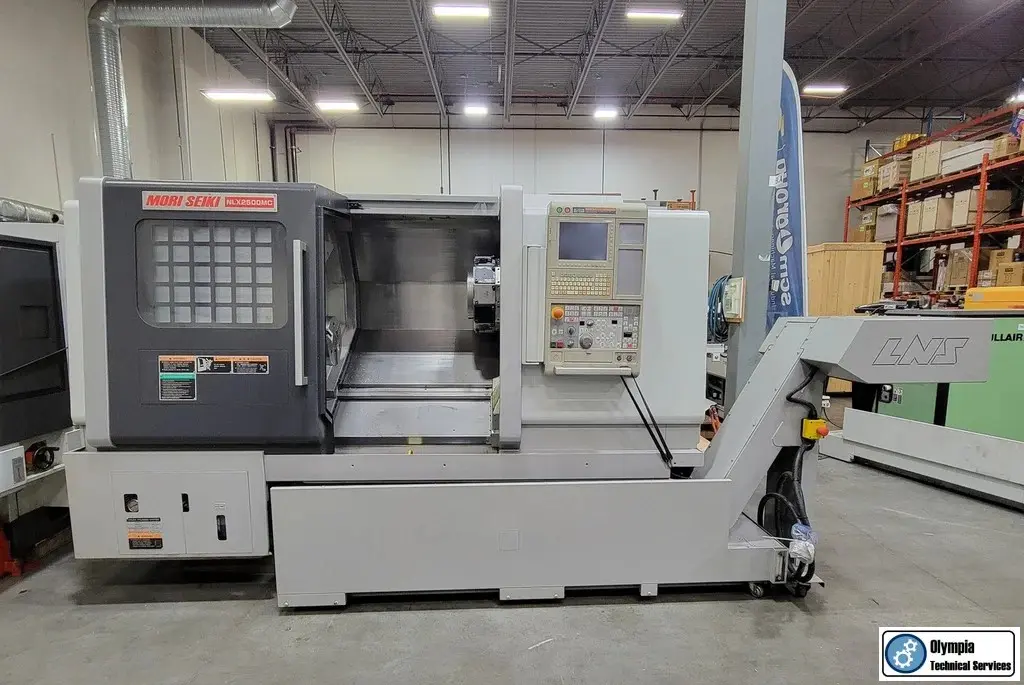

USED MORI-SEIKI NLX2500MC/700 CNC LATHE, w/ MSX-853 IV CNC Control (yr. 2012)

SPECIFICATIONS: Imperial Metric
SWING OVER BED 31" 787 mm
SWING OVER COVER 23" 584 mm
SWING OVER SADDLE 21.3 541 mm
MAX. TURNING DIAMETER 14.0" 355 mm
CENTER DISTANCE 27.7" 700 mm
CHUCK SIZE 10" 254 mm
BAR CAPACITY DIAMETER 3.1" 80 mm
X-AXIS TRAVEL 10.2" 260 mm
Z-AXIS TRAVEL 31.3” 795 mm
C-AXIS 0.001 deg.
RAPID TRAVERSE RATE X/Z 1181 IPM 30 m/min
MAX. SPINDLE SPEED, MAIN 4000 RPM
MAIN SPINDLE MOTOR 24.7 HP 18.4 Kw
SPINDLE NOSE A2-8
SPINDLE TORQUE 442 ft. lbs. 600 Nm
NO. OF TOOL STATIONS 12 (All live milling)
MILLING MOTOR 7.5 HP 5 Kw
MILLING SPEED 6000 RPM
TAILSTOCK TAPER MT#5
MACHINE DIMENSIONS w/conveyor 156" x 81” x 86” 4.0 x 2.06 x 2.18 mm
APPROX. MACHINE WEIGHT 12,100 LBS 5500 Kg
