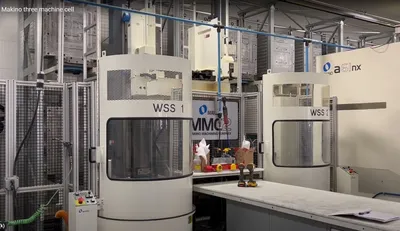

(3) Three Makino A61NX horizontal machining centers with one multi pallet system, MMC 2, 300PSI CTS, Chip conveyor, Tool Breakage Detection, 60 pos. ATC, 20000 RPM, & HSK 63 spindle
Pallet: 19.7" x 19.7"
X-TRAVEL: 28.7"
Y-TRAVEL: 25.6"
Z-TRAVEL: 31.5"
B-Axis: 0.001°
Spindle RPM: 20,000 RPM
Spindle Motor: 50 HP
Spindle Taper: HSK-63
Rapid Traverse: 2,362 IPM
Cutting Feedrate: 1,968 IPM
Maximum Workpiece: ø31.5" x 39.4"
Maximum Payload: 1,100 lbs.
ATC Capacity: 60 tools
Tool to Tool: 0.9 sec
Chip to Chip: 2.5 sec
Maximum Tool Dia: 8.1"
Max. Tool Weight: 26.4 lbs.
One multi pallet system, MMC 2
CNC Control Pro 5 (2 machines)
CNC Control Pro 6 (1 machine)
22 Pallet Rack Cell with two load/unload stations
CTS 300 PSI
Lift Up Chip Conveyor
Tool Breakage Detection
All pallet fixtures are included
No tooling available,
