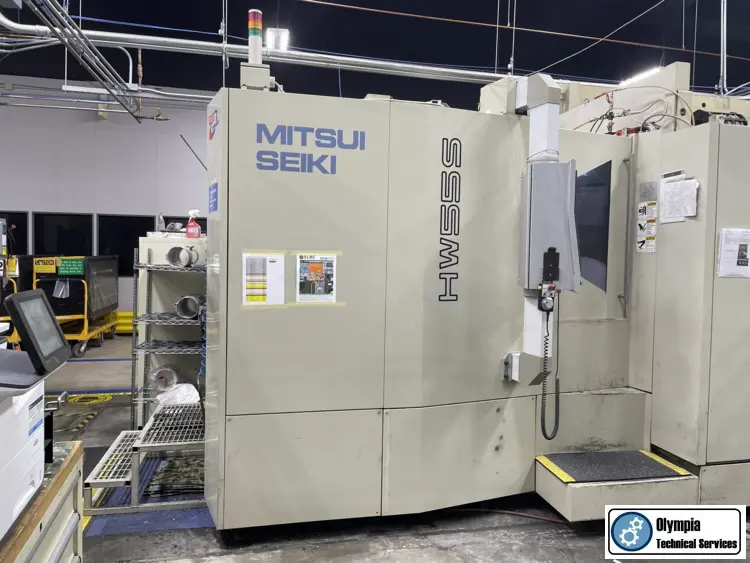

Mitsui Seiki HW550S CNC Horizontal Machining Center (2006)

X axis 750 mm (29.53")
Y axis 800 mm (31.50")
Z axis 850 mm (33.46")
Spindle Motor 18.5 Kw (25 HP)
Spindle Speed 15,000 RPM
ATC 121
Spindle Taper Cat-50
Pallet Width 550 mm (21.65")
PALLET-Length 550 mm (21.65")
Max Table Load 1200 kg (2600 lbs)
# of Axis 4
Table top to spindle axis 50 - 850 mm (1.96" - 33.46")
Spindle nose to table center 150 - 1000 mm (5.9" - 39.37)
Rapid Feed (X,Y,Z axes) 60,000 mm/min (2,362 ipm)
B axis (0.001º table) 40 RPM
Cutting Feed (X,Y,Z axes) 0.1 ~ 30,000 mm/min (1,181 ipm)
B axis (0.001º table) 0.1 ~ 4,000º / min
Electrical Service Required 220/200V AC, 3 Ph, 50/60 Hz, 52 KVA
Air Service (Dry & lean) 0.7 Mpa, 1.4 m3/min
Length 7,000 mm (275 in)
Width 3,200 mm (126 in)
Height 3,100mm (122")
Machine Weight 16,000 kg. (35,273 lbs)
