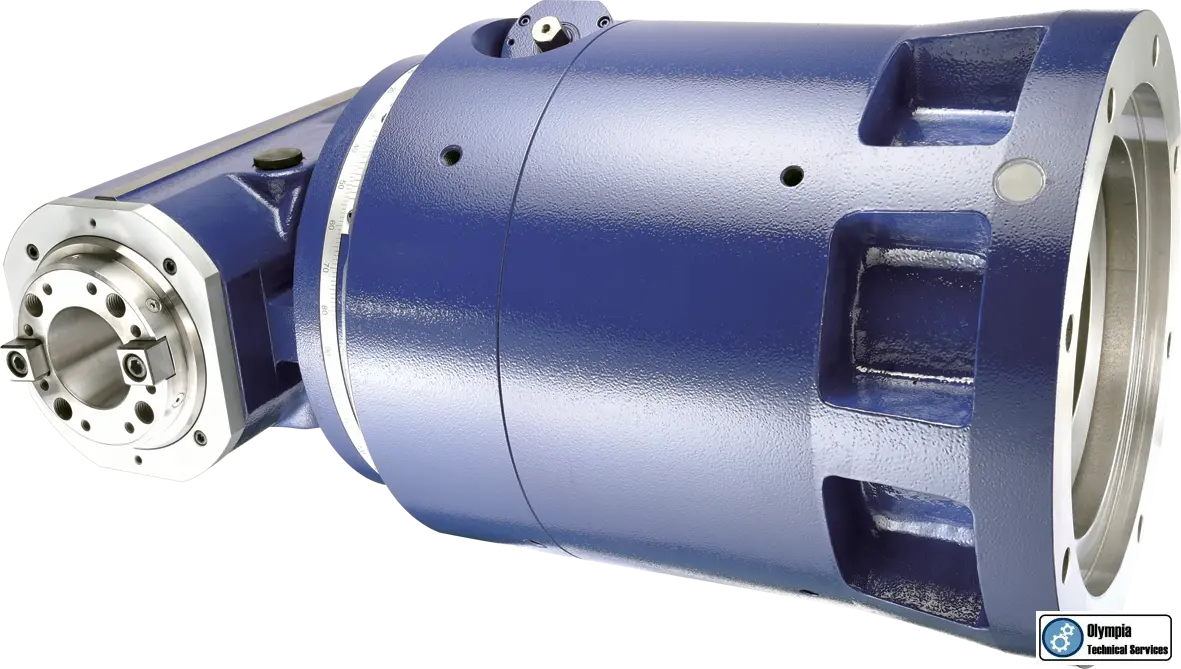

NEW Right Angle 90 Degree Manual Milling Head, Model A81L-H250110-450
Have one to sell?
ConditionUsed
w/ Head stand and test bar
A81L-H250110-450 Manual Right Angle 90 Degree
Ratio: 1:1
Max Milling Cutter diameter: 150 mm
Max Speed: 2000 RPM
Max Torque: 1500 Nm
Max Power: 38 kW
Weight: 240 kgs.
Length: 450 mm flange to spindle C/L
Overall Length: 535 mm
Flange to match SNK NISSIN BP130 HBM spindle head
Mounting flange with 4 mounting holes 22 mm on 350 mm BHC
Keyway for positioning - 20 mm
Manual tool clamping
Spindle Drive Tool holder
Optional Head stand included
