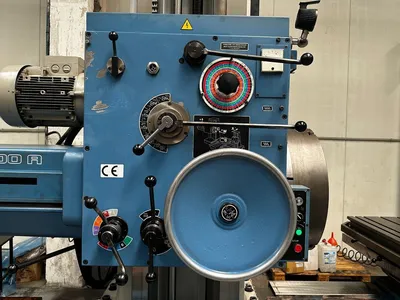

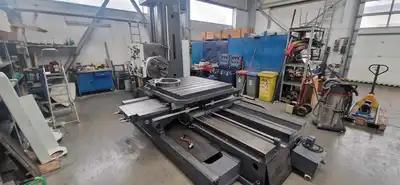

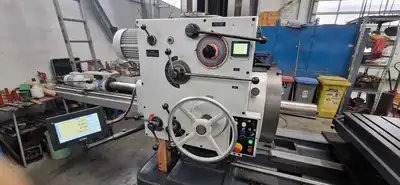

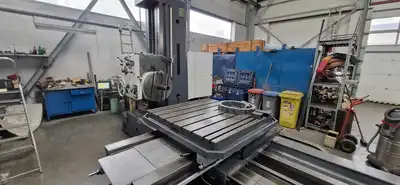

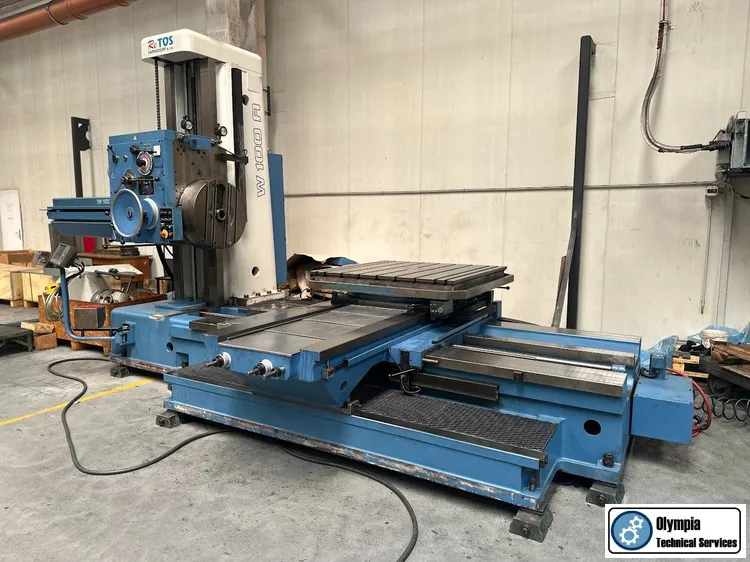

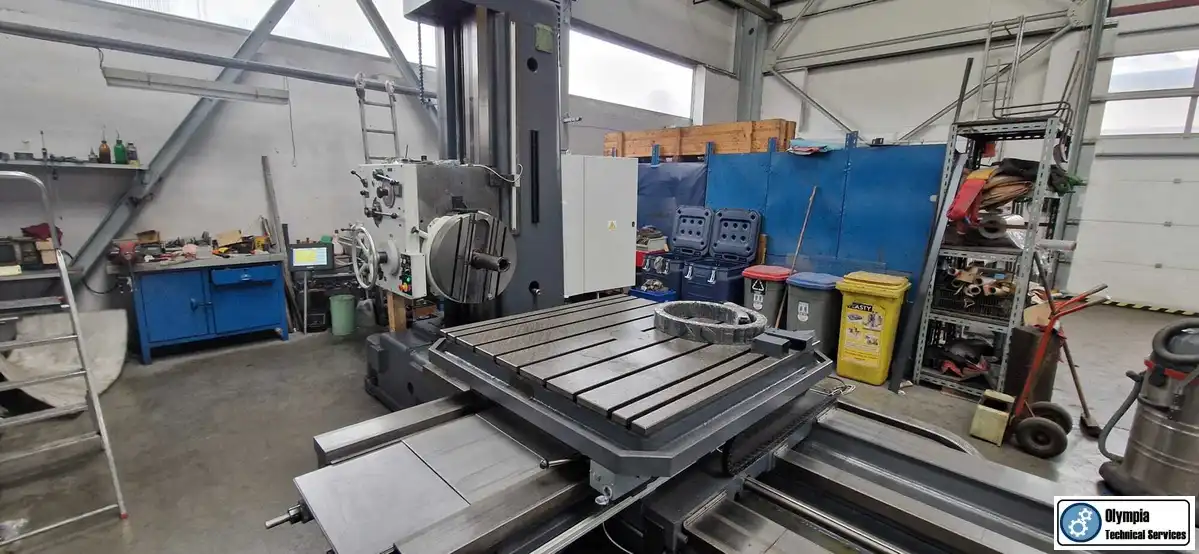

TOS VARNSDORF W100A TABLE TYPE HORIZONTAL BORING MILL (2026)

TECHNICAL SPECIFICATIONS
Machine type............ Manual Table Type Boring Machine

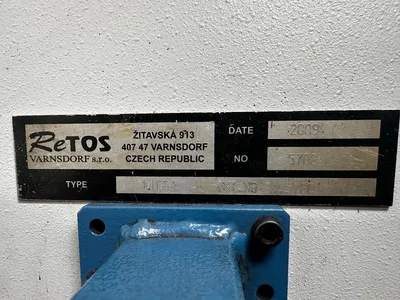

Make.................... TOS

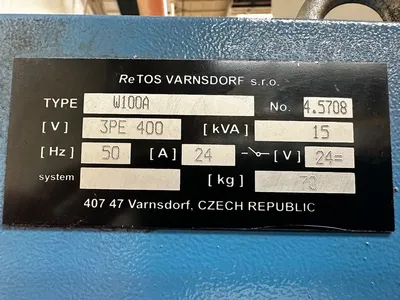

Type.................... W100 A
Year / Sn#.............. 2024 / Sn# n/a

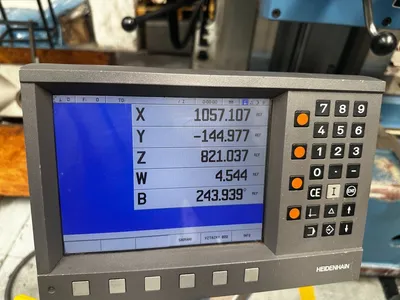

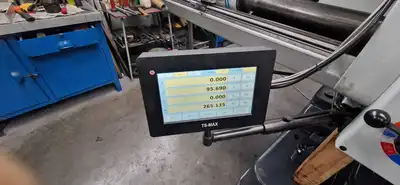

Control/DRO............. TIGER 4-Axis DRO

Technical details
X-travel................ 1600 mm 63”
Y-travel................ 1120 mm 44.1”
W-travel (spindle)...... 900 mm 35.9”
Z-travel................ 1250 mm 49.2”

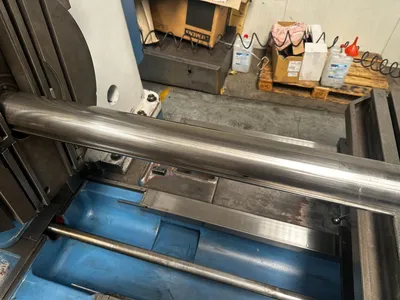

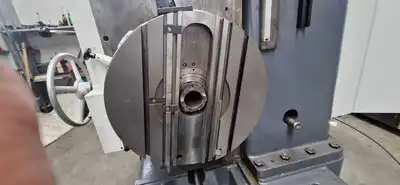

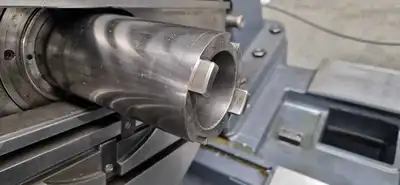

Spindle Dia............. 100 mm 3.93”
Spindle taper........... ISO 50

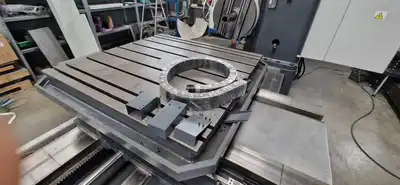

Table-size.............. 1250 x 1250 mm 49.2” x 49.2”
Table load capacity..... 3000 kg 6600 lbs.
Spindle speed:.......... 9 to 1120 rpm

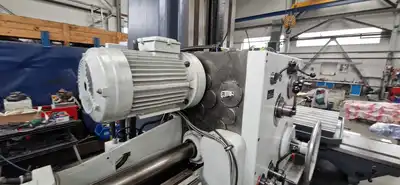

Spindle Motor........... 11 kW. 15 HP
Weight of the machine.... 17500 kg. 38,500 lbs.
Dimensions (LWH)......... 5.9 x 3.6 x 3.0 m 264” x 135” x 118”
