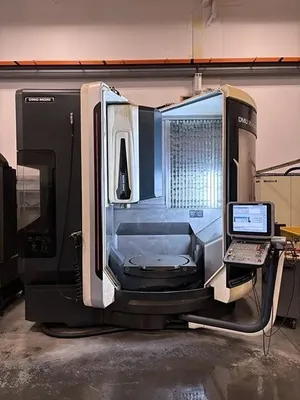

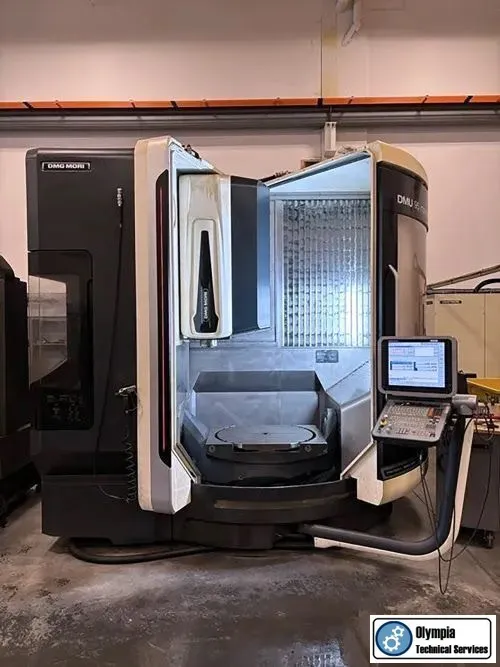

DMG MORI DMU 95 MONOBLOCK 5 AXIS CNC VERTICAL MILLING CENTER (2018)
Have one to sell?
ConditionUsed
1 available
W/Chip conveyor, 60 Position ATC, HSK-A 63, 20,000 RPM Spindle, HEIDENHAIN TNC 640 CNC, Renishaw Probe & Blum Laser tool measurement system

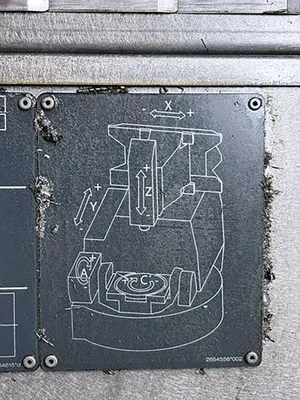

NUMBER OF AXES 5
NUMBER OF PALLETS 1
X AXIS TRAVEL 37.4"
Y AXIS TRAVEL 33.5"
Z AXIS TRAVEL 25.6"
PALLET SIZE 39.3" X 29.5"
MAX WORKPIECE SIZE 40.9" X 23.2"
TABLE CAPACITY 2,200 LBS.
TABLE ROTATION SPEED 800 RPM
A-AXIS TRAVEL +/- 120 deg

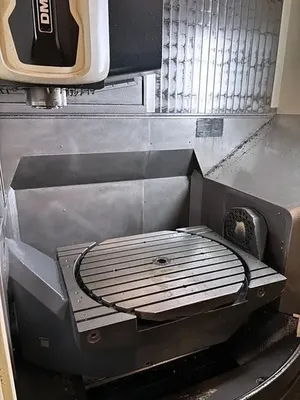

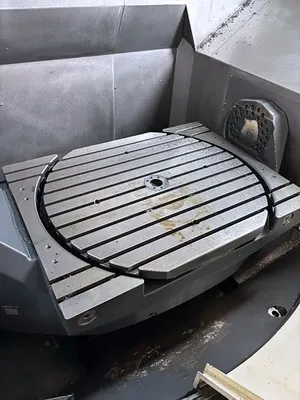

C-AXIS TABLE INDEX 360 deg

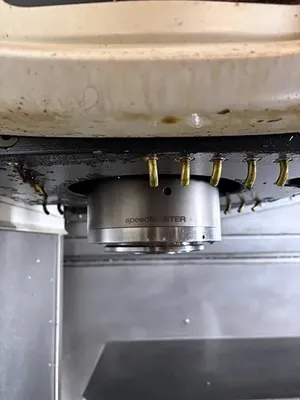

MAX SPINDLE SPEED 20,000 rpm
MILLING SPINDLE POWER 47 HP
ATC CAPACITY 60
SPINDLE TAPER HSK-A63
COOLANT THRU 560 PSI
RAPID TRAVERSE SPEED 1,576 IPM
WEIGHT 39,460 LBS.
MACHINE DIMENSIONS (LWH) 175 x 124 x 126"

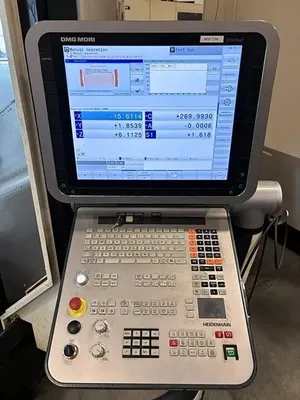

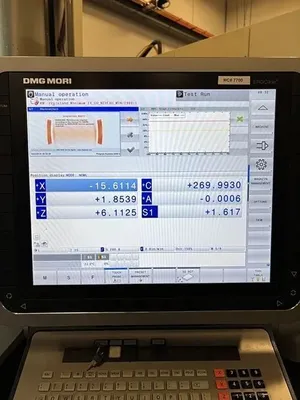

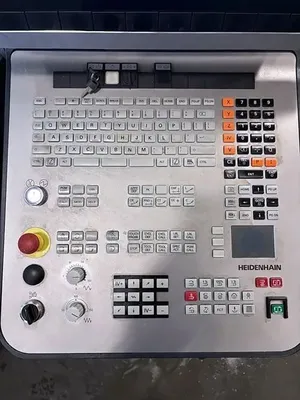

HEIDENHAIN TNC 640 3D CNC CONTROL
MDYNAMICS PACKAGE
MPC MACHINE PROTECTION CONTROL
SAFETY PACKAGE FOR POWER FAILURE
SPRAY PISTOL WITH PUMP
ROTATING CLEARVIEW WINDOW
COOLANT RING JET
3D QUICKSET
CHIP CONVEYOR
RENISHAW INFRARED MEASURING PROBE
BLUM LASER TOOL LENGTH MEASUREMENT

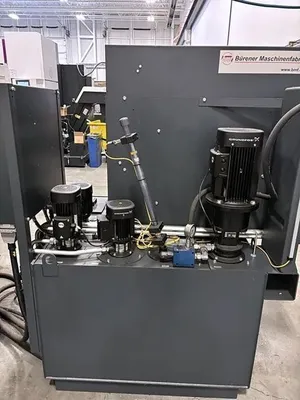

PRODUCTION PACKAGE: 40 BAR 23 L/MIN COOLANT THRU SPINDLE

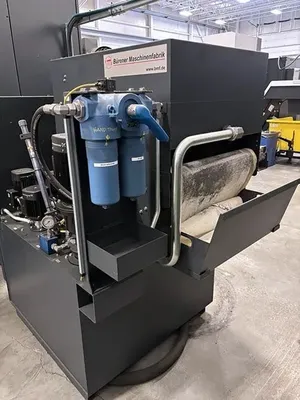

500L TANK & FILTRATION
HAND-HELD REMOTE PULSE GENERATOR
INNER COOLED BALL SCREWS
OPTIMAL 3-POINT SUPPORT SYSTEM
3D SIMULTANEOUS GRAPHICS
DYNAMIC COLLISION MONITORING
SIMULTANEOUS 5-AXIS MILLING
FOUR (4) COLOUR SIGNAL LIGHT
TRANSFORMER
