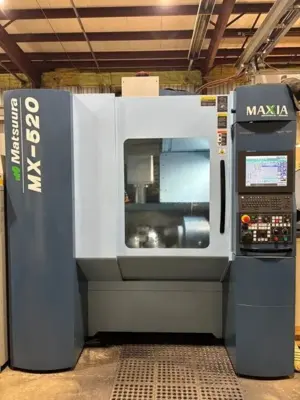

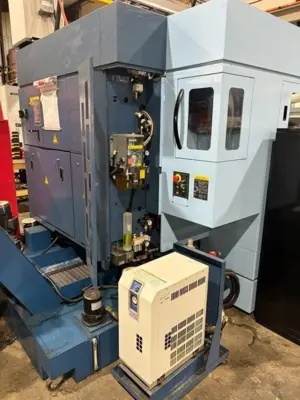

MATSUURA MX-520 5-AXIS CNC VERTICAL TURN MILL CENTER (2019)
Have one to sell?
ConditionUsed
1 available

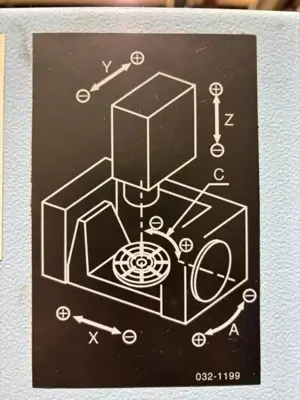

X axis travel 630 mm (24.8")
Y axis travel 560 mm (22.04")
Z axis travel 510 mm (20.07")
A axis travel +10 ~ -125 deg
C axis travel 360 deg
Rapid Feed rate 40 m/min (1575 IPM)

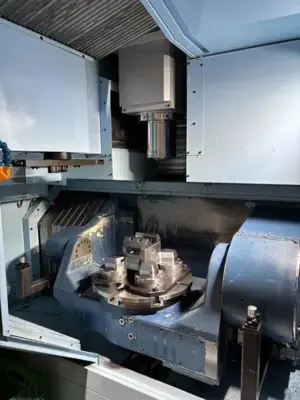

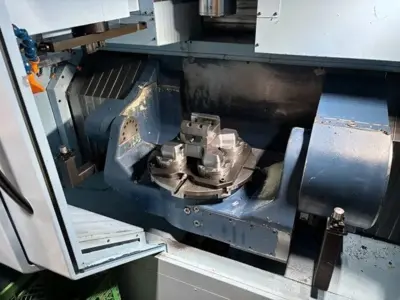

Table Size 500 mm φ (19.7"φ)
Max Work Piece Diameter 520 mm (20.47")
Max Work Piece Height 350 mm (13.77")
Max Table Load 200 kg (440 lbs)
ATC Capacity 60 ATC
CNC Control FANUC 31iB5

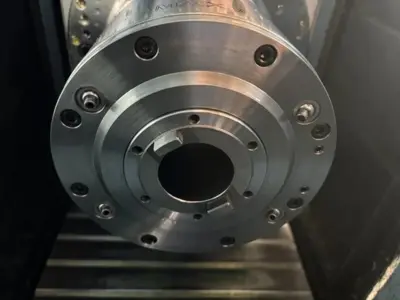

Spindle Taper CAT 40 BIG PLUS
Spindle Speed 20,000 RPM
Spindle Motor 22 kW (30 HP)
Machine Height 2,970 mm (117")
Space Required (L x W) 4765 mm x 3110 mm (188" x 123")
Machine Weight 9450 kg (20,800 lbs)

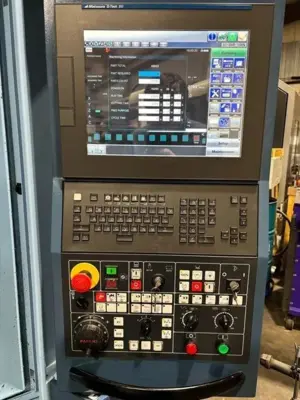

Fanuc G-Tech 31ib5 Controller
Rear Discharge Chip Conveyor
Simultaneous Axes: 5-Axis Simultaneous (Full)
Coolant Type: Flood, Through Spindle, Bed Wash, High Pressure
Coolant Pressure: 300 psi

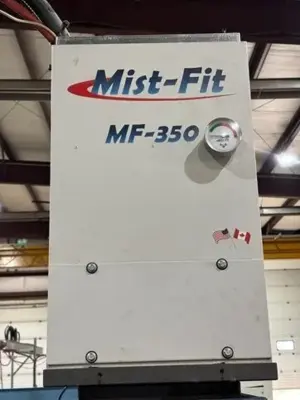

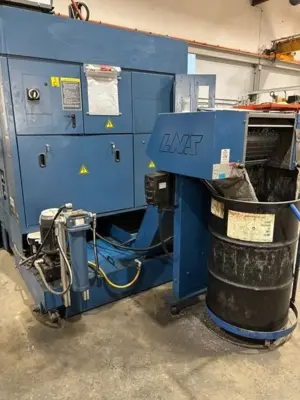

Mist-Fit (MF-350) Coolant Mist Extractor,

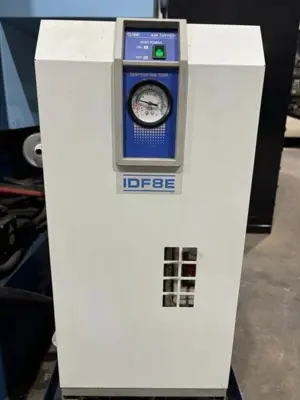

SMC - Air Drying Unit - External,
Glass Scales for all 5 Axes - X, Y, Z, B, C,
Renishaw RMP-60 In Process Measurement Probe,

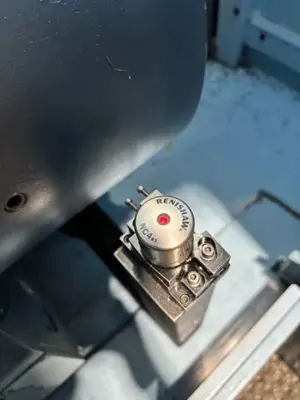

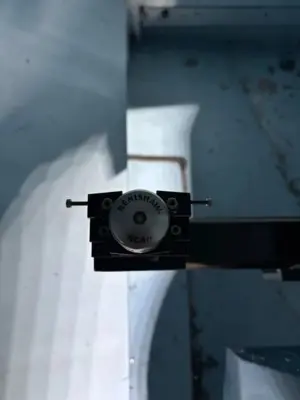

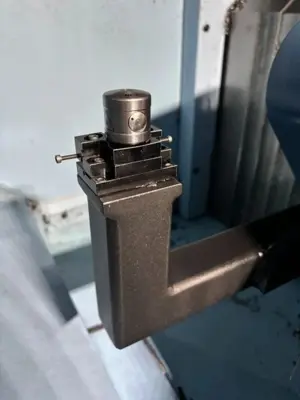

Renishaw NC-4 Laser Tool Breakage/Measurement System,
High Pressure NOP Coolant Pump at 300PSI with 20 Microns filtration,
eZ-5 Kinematic Function - Including Calibration Sphere,
Matsuura/Fanuc High Speed, High Precision, and 5 Axis Value Software
Complete set of all Consumable Parts
– Grease Canisters, High Pressure Coolant Filters, Air Filters, Batteries, & Hydraulic Filters
Machine Manuals Included
Hours: 11,050 hours
X axis travel 630 mm (24.8")
Y axis travel 560 mm (22.04")
Z axis travel 510 mm (20.07")
A axis travel +10 ~ -125 deg
C axis travel 360 deg
Rapid Feed rate 40 m/min (1575 IPM)
Table Size 500 mm φ (19.7"φ)
Max Work Piece Diameter 520 mm (20.47")
Max Work Piece Height 350 mm (13.77")
Max Table Load 200 kg (440 lbs)
ATC Capacity 60 ATC
CNC Control FANUC 31iB5
Spindle Taper CAT 40 BIG PLUS
Spindle Speed 20,000 RPM
Spindle Motor 22 kW (30 HP)
Machine Height 2,970 mm (117")
Space Required (L x W) 4765 mm x 3110 mm (188" x 123")
Machine Weight 9450 kg (20,800 lbs)
Fanuc G-Tech 31ib5 Controller
Rear Discharge Chip Conveyor
Simultaneous Axes: 5-Axis Simultaneous (Full)
Coolant Type: Flood, Through Spindle, Bed Wash, High Pressure
Coolant Pressure: 300 psi
Mist-Fit (MF-350) Coolant Mist Extractor,
SMC - Air Drying Unit - External,
Glass Scales for all 5 Axes - X, Y, Z, B, C,
Renishaw RMP-60 In Process Measurement Probe,
Renishaw NC-4 Laser Tool Breakage/Measurement System,
High Pressure NOP Coolant Pump at 300PSI with 20 Microns filtration,
eZ-5 Kinematic Function - Including Calibration Sphere,
Matsuura/Fanuc High Speed, High Precision, and 5 Axis Value Software
Complete set of all Consumable Parts
– Grease Canisters, High Pressure Coolant Filters, Air Filters, Batteries, & Hydraulic Filters
Machine Manuals Included
Hours: 11,050 hours
